10547 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY NO. 98-1398 Parts Diagram

GoldPro Series Walk-Behind Mower

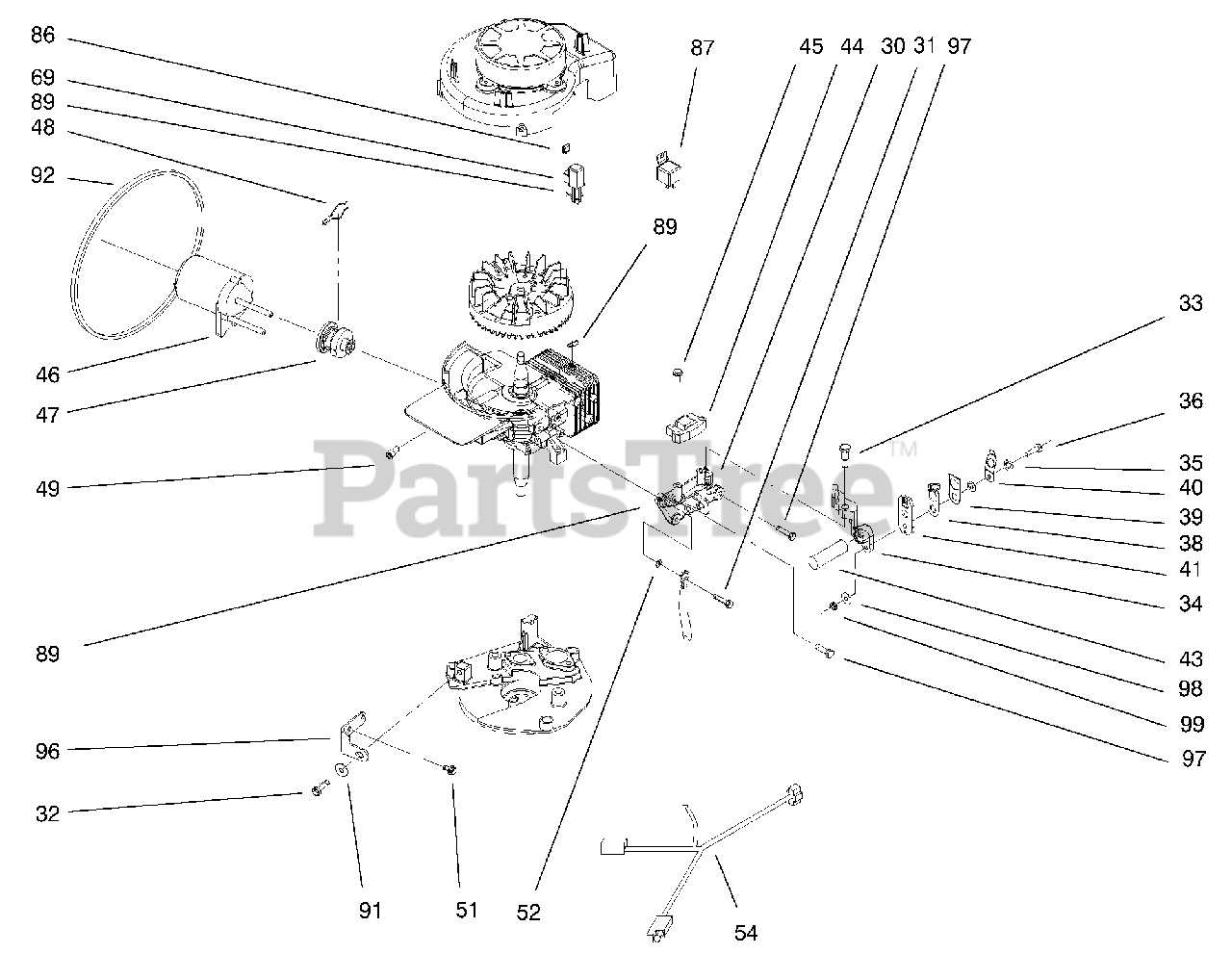

ENGINE ASSEMBLY NO. 98-1398 Parts Diagram

  • Title

18:2

Lawn-Boy 99-6719

Lead-High Tension

Note: Not illustrated

$55.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 95-1884

Bracket-Alternator/ Brake

$53.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 321-7

Screw-HH

$5.49

$

In Stock, only 4 left!

0

32

Lawn-Boy 3234-29

Screw-HHF

$2.99

$

In Stock, Qty 12

0

33

Lawn-Boy 613529

Bolt

$13.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 98-7008

Brake ASM

$72.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 321-6

Screw-HH

$0.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 612841

Plate-Contact

$14.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 612842

Shield

$1.49

$

Usually ships in 3-6 days

0

40

Lawn-Boy 93-1239

Spring-Contact

$2.49

$

In Stock, only 2 left!

0

41

Lawn-Boy 93-4301

Case ASM

$15.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 95-1886

Lead-Wire

$4.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611211

Spring-Brake

$13.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 684115

Alternator ASM

$

$

Not available

45

Lawn-Boy 613208

Screw

$1.99

$

In Stock, only 2 left!

0

46

Lawn-Boy 98-1370

Starter ASM

$791.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 98-1371

Pinion ASM

$

$

Not available

48

Lawn-Boy 613297

Spring-Drag

$7.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 3274-10

Screw-HSH

$9.99

$

In Stock, Qty 20+

0

51

Lawn-Boy 700094

Screw-HH
(Superseded to 112-0167)

$6.49

$

In Stock, Qty 6

0

52

Lawn-Boy 306992

Washer-Lock

$

$

Not available

54

Lawn-Boy 100-2926

Wire Harness

$

$

Not available

68

Lawn-Boy 609790

Sealer-Loctite 50cc

Note: Not illustrated

$61.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 100-2927

Rectifier

$46.99

$

Usually ships in 3-6 days

0

86

Lawn-Boy 98-7003

Mounting Clip

$

$

Not available

87

Lawn-Boy 116397

Relay, Spdt

$33.99

$

In Stock, only 4 left!

0

89

Lawn-Boy 317893

Strap-Tie

$

$

Not available

91

Lawn-Boy 99-2900

Washer-Flat

$1.99

$

Usually ships in 3-6 days

0

92

Lawn-Boy 3290-379

Tie-Cable

$0.99

$

In Stock, only 3 left!

0

96

Lawn-Boy 98-1390

Bracket

$5.49

$

In Stock, only 1 left!

0

97

Lawn-Boy 322-5

Screw-HH

$0.99

$

In Stock, Qty 20+

0

98

Lawn-Boy 3255-7

Washer-Lock/Ext

$1.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 602315

Locknut

$4.49

$

In Stock, only 2 left!

0
