10551 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING AND WHEEEL ASSEMBLY Parts Diagram

GoldPro Series Walk-Behind Mower

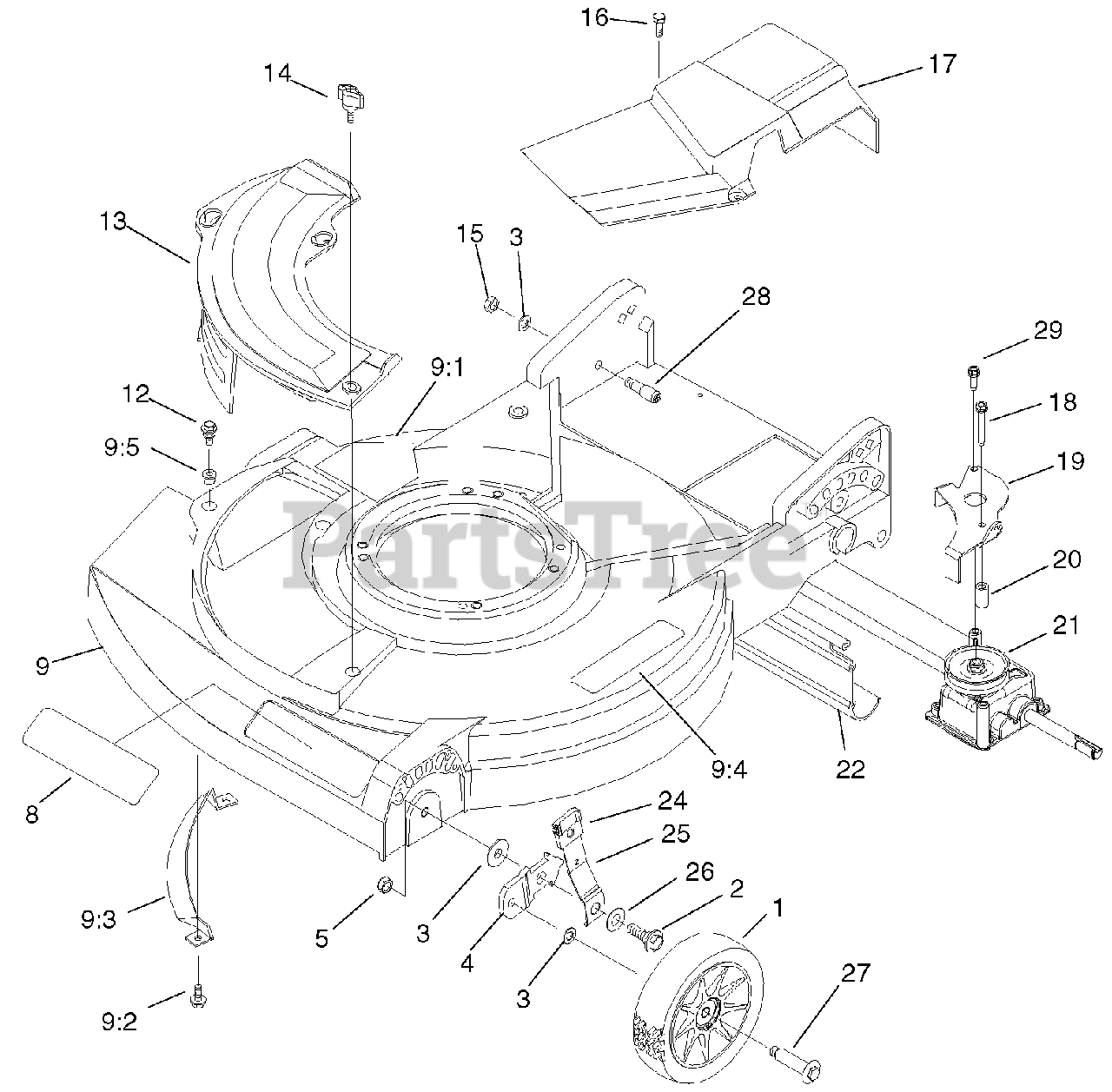

HOUSING AND WHEEEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 684776

Wheel & Tire ASM

$33.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 92-4856

Bolt-Shoulder

$5.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 95-7403-03

Bracket-Height Adjustment, Wheel

$

$

Not available

5

Lawn-Boy 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 104-7956

Decal-Deck

$

$

Not available

9

Lawn-Boy 104-7661

Housing

$1186.99

$

Usually ships in 3-6 days

0

9:1

Lawn-Boy 43-8480

Decal-Danger

$6.49

$

In Stock, Qty 8

0

9:2

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, Qty 7

0

9:3

Lawn-Boy 608175

Bar-Toe

$75.99

$

Usually ships in 3-6 days

0

9:4

Lawn-Boy 93-7250

Decal-Warning

$14.99

$

In Stock, only 2 left!

0

9:5

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

14

Lawn-Boy 98-8332

Knob

$5.49

$

In Stock, Qty 19

0

15

Lawn-Boy 603773

Nut

$2.99

$

In Stock, Qty 19

0

16

Lawn-Boy 12-5450

Screw

$8.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 104-7662

Cover-Drive

$77.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-1616

Screw-HWHTF

$3.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 104-7930-03

Bracket-Gearbox

$

$

Not available

20

Lawn-Boy 614673

Bushing-Plate, Actuator

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 104-7676

Gear Case ASM

$

$

Not available

22

Lawn-Boy 92-7736

Shield-Trailing

$39.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$12.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 92-1006

Front Spring Arm ASM

$11.99

$

In Stock, Qty 7

0

26

Lawn-Boy 3290-413

Washer-Belleville

$4.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, only 4 left!

0

28

Lawn-Boy 92-9673

Screw-Torx

$7.49

$

In Stock, only 2 left!

0

29

Lawn-Boy 49-2040

Screw-Tapping

$2.49

$

In Stock, Qty 20+

0

99

Lawn-Boy 95-7052

Plate-Opening, Chute

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0
