10552 - Lawn-Boy GoldPro Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) GEARCASE ASSEMBLY NO. 104-7676 Parts Diagram

GoldPro Series Walk-Behind Mower

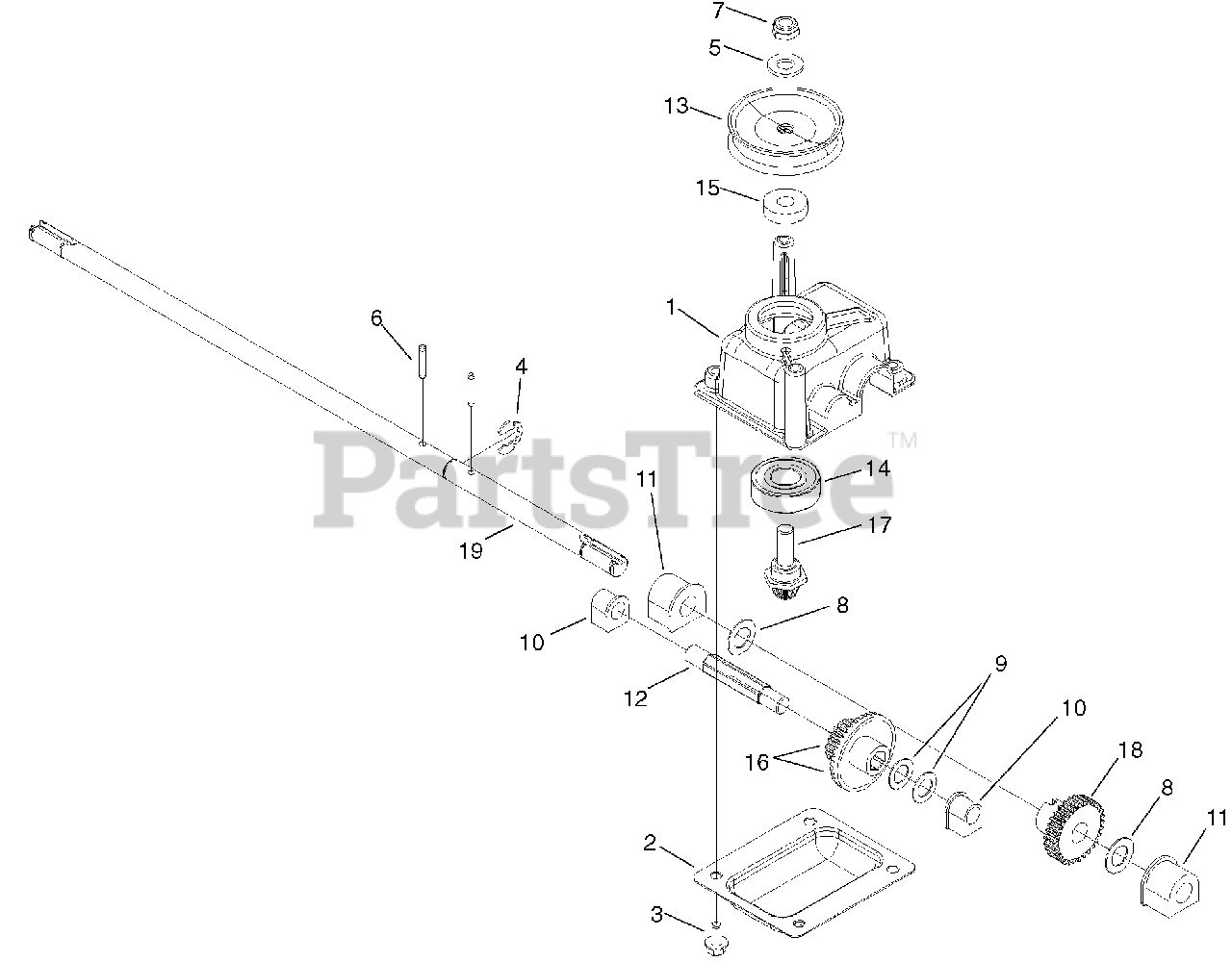

GEARCASE ASSEMBLY NO. 104-7676 Parts Diagram

  • Title

1

Lawn-Boy 104-7619

CASE-GEAR

$38.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 614668-03

COVER-CASE, GEAR

$7.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 15

0

7

Lawn-Boy 3296-5

NUT-LOCK, NI

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 36-4780

WASHER

$7.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 60-8750

BUSHING

$5.99

$

In Stock, Qty 12

0

11

Lawn-Boy 60-8850

BUSHING-OUTPUT

$7.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 614696

SHAFT-INTERMEDIATE

$94.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 100-1176

PULLEY-HALF

$8.49

$

In Stock, Qty 8

0

14

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 62-6660

SPACER

$1.49

$

In Stock, Qty 6

0

16

Lawn-Boy 104-1005

GEAR-19T SPUR, 37T BEVEL

$52.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 104-7667

GEAR-PINION, BEVEL

$15.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 104-1004

GEAR-30T

$21.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 104-7675

SHAFT-OUTPUT

$157.99

$

Usually ships in 3-6 days

0
