1057-0 - Generac Limited Edition 1,500 PSI Pressure Washer Pressure Washer Parts Diagram

Limited Edition 1,500 PSI Pressure Washer

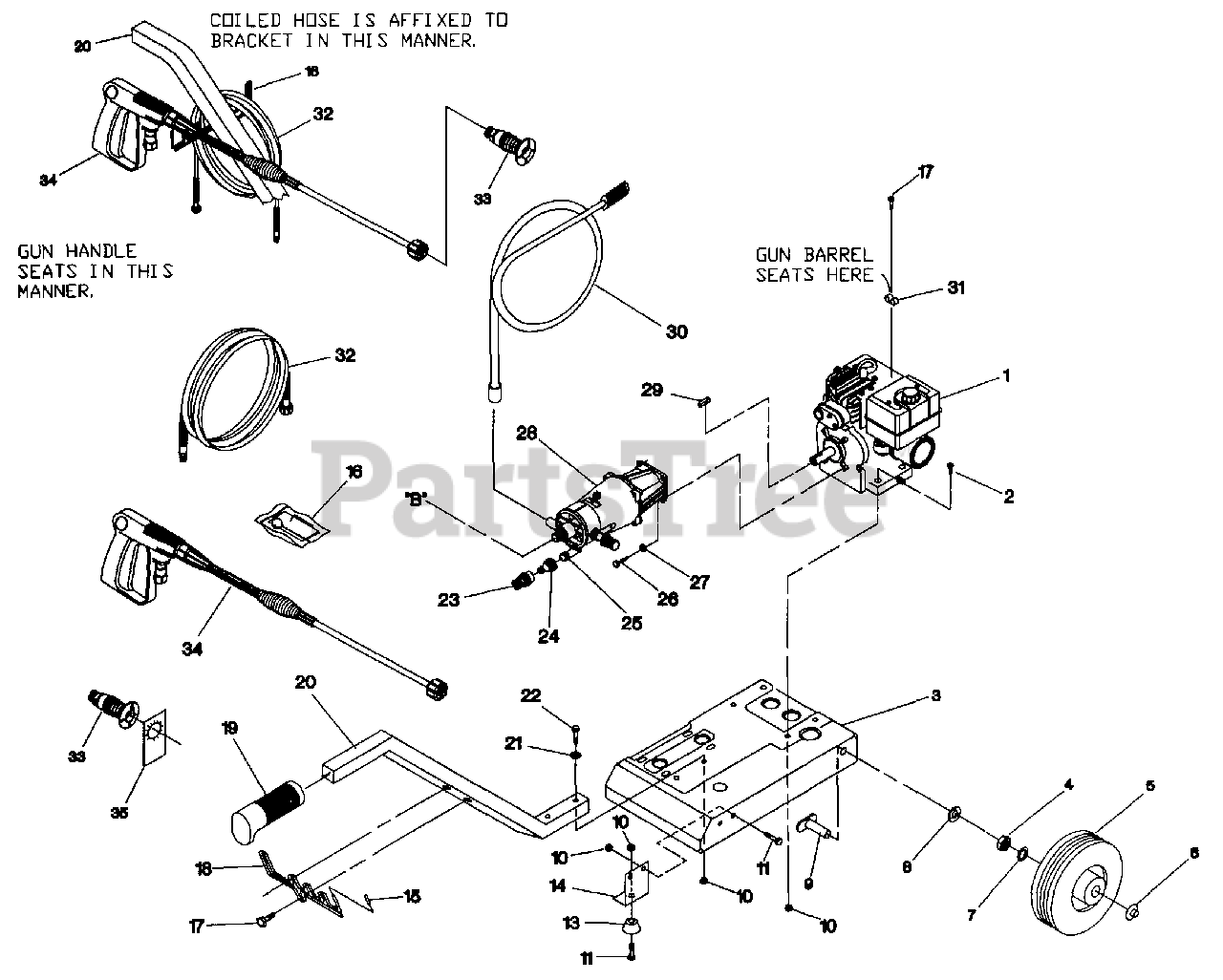

Pressure Washer Parts Diagram

  • Title

1

Briggs & Stratton 95989

ENGINE, 3.5 Tecumseh Model #H35-45671X

$

$

Currently unavailable

2

Briggs & Stratton 39414

HHCS, M8 1.25 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 95902

BASE, Mounting

$

$

Not available

4

Briggs & Stratton 94222Q

JAM NUT, 5/8 - 18 Lock
(Superseded to 94222QGS)

$3.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 91094

WHEEL
(Superseded to 197061GS)

$24.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

7

Briggs & Stratton 49808

WASHER, M12 Flat
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

8

Briggs & Stratton 22246

WASHER, 5/8 Lock
(Superseded to 5022246)

$912.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 93728

AXLE
(Superseded to 93728GS)

$7.49

$

In Stock, Qty 5

0

10

Briggs & Stratton 52858

NUT, M8 1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 39253

HHCS, M8 1.25 x 20
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 87841

MOUNT, Vibration
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 91092

LEG, Support
(Superseded to 91092GS)

$15.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 92067

CAP, Vinyl

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 97009

KIT, Nozzle Cleaning
(Superseded to 97009GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 86292

SCREW, #10 Self Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 95908

SUPPORT, Gun & Hose
(Superseded to 95908GS)

$31.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 77584

HANDLE, Grip
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 91093

HANDLE, Guide
(Superseded to 91093GS)

$60.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 50190

WASHER, Flat
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 57821

HHCS, M8 1.25 x 40

$

$

Not available

23

Briggs & Stratton 96016

QUICK DISCONNECT, Female
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 96017

QUICK DISCONNECT
(Superseded to 96017GS)

$4.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 90065

NECK, Plastic Garden Hose
(Superseded to 90065GS)

Note: (Replacement part only)

$32.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 95531

SHCS, 5/16 - 24 x 3/4
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 92479

WASHER, M8 Lock
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 87627

PUMP
(Superseded to 87627GS)

$

$

Not available

29

Briggs & Stratton 89314

KEY, 3/16" sq. x 1-7/8"
(Superseded to 89314GS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 89800

TUBE & FILTER, Injector
(Superseded to 89800GS)

Note: (Replacement part only)

$15.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 65852

CLIP, Spring
(Superseded to 65852GS)

$9.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 97914

HOSE,

$

$

Currently unavailable

33

Briggs & Stratton 95587C

NOZZLE, Hi/Low
(Superseded to 95587CGS)

$34.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95567

GUN
(Superseded to 95567GS)

$115.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97566

TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0
