10591 - Lawn-Boy M-Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) HANDLE & REAR GRASS CATCHER-MODEL NO. 10591 Parts Diagram

M-Series Walk-Behind Mower

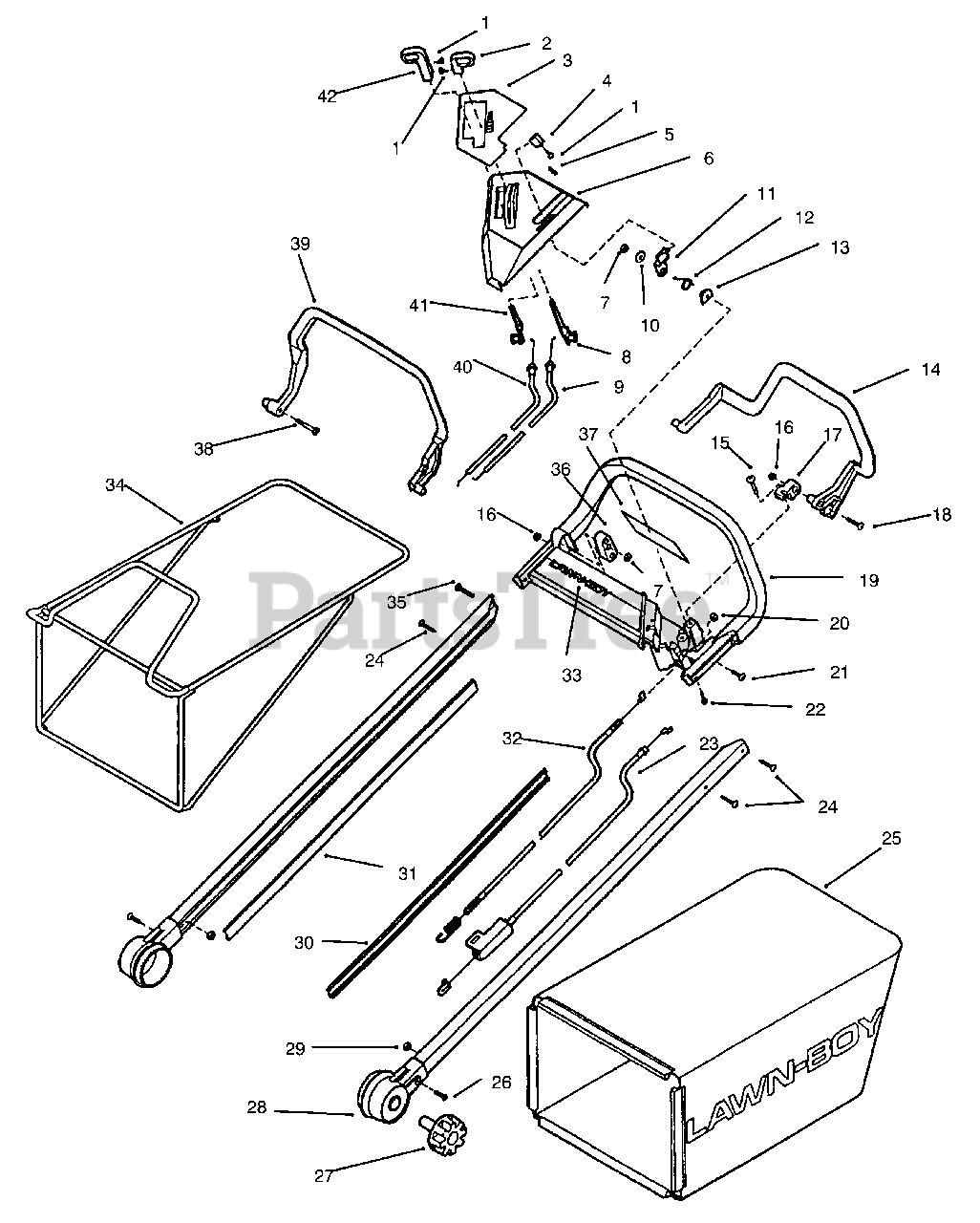

HANDLE & REAR GRASS CATCHER-MODEL NO. 10591 Parts Diagram

  • Title

1

Lawn-Boy 614013

Screw-Set

$

$

Not available

2

Lawn-Boy 684399

Assembly-Knob, Throttle (Incl. Ref. #1)

$

$

Not available

3

Lawn-Boy 614566

Plate

$

$

Not available

4

Lawn-Boy 684401

Assy.-Knob, BBC Latch (Incl. Ref. #1)

$

$

Not available

5

Lawn-Boy 145482

Plug

$

$

Not available

6

Lawn-Boy 684427

Assembly-Cover, Upper (Incl. Ref. #3)

$210.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 602315

Nut

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 684446

Lever-Throttle

$

$

Not available

9

Lawn-Boy 684210

Assembly-Cable, Throttle

$

$

Not available

10

Lawn-Boy 146251

Washer

$

$

Not available

11

Lawn-Boy 613414

Lever-Latch, BBc

$7.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 613396

Spring

$

$

Not available

13

Lawn-Boy 613395

Spacer

$

$

Not available

14

Lawn-Boy 613417

Bail-Self-propelled

$167.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 613551

Screw

$

$

Not available

16

Lawn-Boy 613406

Nut

$

$

Not available

17

Lawn-Boy 613409

Pivot-Bail

$16.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 613553

Screw

$

$

Not available

19

Lawn-Boy 684581

Assembly-Handle & Decal (Incl. Ref. #24,33 & 37)

$

$

Not available

20

Lawn-Boy 613550

Nut-Cable, Self-propelled

$

$

Not available

21

Lawn-Boy 613339

Screw

$1.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 613549

Screw

$

$

Not available

23

Lawn-Boy 684211

Assy.-Cable, BBC

$

$

Not available

24

Lawn-Boy 614023

Screw-Thread Forming

$

$

Not available

25

Bag-Rear, Grass (Accessory Part #684189)

$

$

Not available

26

Lawn-Boy 613401

Screw

$

$

Not available

27

Lawn-Boy 613358

Knob-Mounting, Handle

$

$

Not available

28

Lawn-Boy 684695

Assembly-Shaft, Handle (Incl. Ref. # 26 & 29)

$204.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613406

Nut

$

$

Not available

30

Lawn-Boy 614518

Insert-Handle, Cable Side

$10.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 613619

Insert-Handle

$

$

Not available

32

Lawn-Boy 684697

Assy.-Cable, Self-propelled

$128.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613980

Decal-Lawn-Boy

$

$

Not available

34

Lawn-Boy 684130

Frame

$237.45

$

In Stock, only 1 left!

0

35

Lawn-Boy 613405

Screw

$

$

Not available

36

Lawn-Boy 613412

Block-Bail

$

$

Not available

37

Lawn-Boy 92-2940

Decal-Warning
(Superseded to 92-4981)

$4.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 613555

Screw

$

$

Not available

39

Lawn-Boy 613416

Bail-Brake, Engine

$

$

Not available

40

Lawn-Boy 684212

Assy.-Cable, Gear Select

$

$

Not available

41

Lawn-Boy 684445

Lever-Gear, Select

$

$

Not available

42

Lawn-Boy 684400

Assembly-Knob (Incl. Ref. #1)

$

$

Not available
