10591 - Lawn-Boy M-Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) HOUSING-MODEL NO. 10591 Parts Diagram

M-Series Walk-Behind Mower

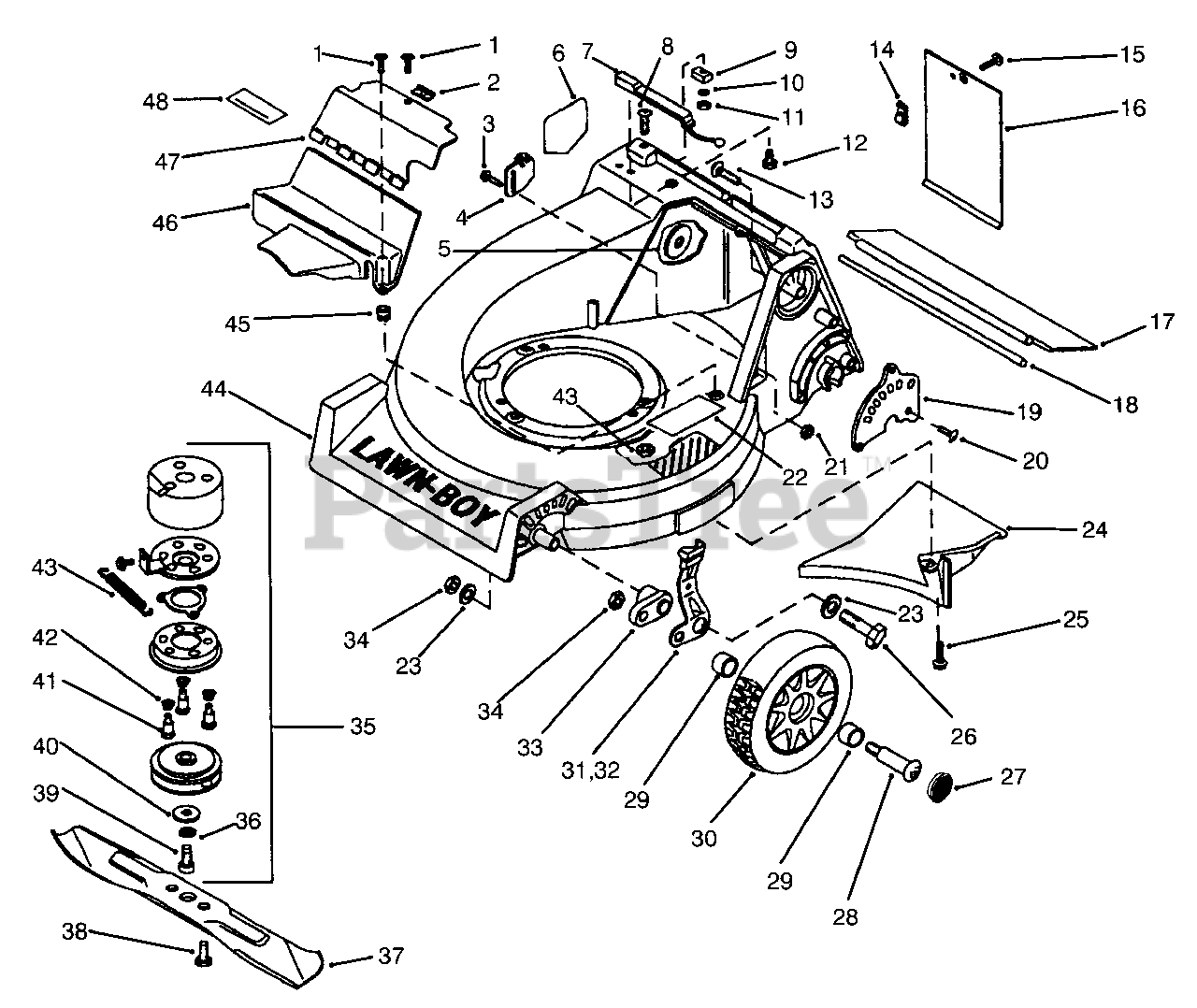

HOUSING-MODEL NO. 10591 Parts Diagram

  • Title

1

Lawn-Boy 609807

Screw

$

$

Not available

2

Lawn-Boy 613341

Speednut

$

$

Not available

3

Lawn-Boy 700748

Screw-Anchor to Housing

$

$

Not available

4

Lawn-Boy 614522

Cable-Anchor

$

$

Not available

5

Lawn-Boy 613910

Washer-R.H. Handle Mtg.
(Superseded to 5-3177)

$

$

Not available

6

Lawn-Boy 43-8480

Decal-Blade Warning

$7.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 684366

Assy.-Switch, Bag Lock

$

$

Not available

8

Lawn-Boy 303724

Screw

$

$

Not available

9

Lawn-Boy 684193

Assembly-Magnet

$

$

Not available

10

Lawn-Boy 613625

Lockwasher

$

$

Not available

11

Lawn-Boy 130450

Nut

$

$

Not available

12

Lawn-Boy 613749

Screw

$

$

Not available

13

Lawn-Boy 613321

Bolt-Handle Mounting

$

$

Not available

14

Lawn-Boy 613340

Speednut

$

$

Not available

15

Lawn-Boy 613339

Screw

$

$

Not available

16

Lawn-Boy 613346

Door-Access

$

$

Not available

17

Lawn-Boy 613322

Shield-Trailing
(Superseded to 99-6408)

$

$

Not available

18

Lawn-Boy 610026

Rod-Trailing Shield

$

$

Not available

19

Lawn-Boy 614433

Plate-Height Adjustment

$

$

Not available

20

Lawn-Boy 613381

Screw

$5.99

$

In Stock, Qty 18

0

21

Lawn-Boy 602315

Nut

$5.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 613624

Decal-Foot Pad

$

$

Not available

23

Lawn-Boy 610361

Washer

$

$

Not available

24

Lawn-Boy 613289

Baffle

$

$

Not available

25

Lawn-Boy 46-6811

Screw

$3.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 613320

Screw

$

$

Not available

27

Lawn-Boy 92-1604

Cap-Hub

$3.49

$

In Stock, Qty 5

0

28

Lawn-Boy 614430

Bolt-Wheel

$

$

Not available

29

Lawn-Boy 27-6250

Bushing-Wheel

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 684645

Assembly Wheel & Tire (Incl. Ref. No. 29)
(Superseded to 684777)

$64.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 684220

Assy.-Knob & Spring, L.H.

$

$

Not available

32

Lawn-Boy 684219

Assy.-Knob & Spring, R.H

Note: Not Illustrated

$

$

Not available

33

Lawn-Boy 613917

Arm-Front Height Adj.

$116.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 610358

Nut

$3.49

$

In Stock, Qty 15

0

35

Lawn-Boy 684092

Clutch & Brake Assy (Incl. Ref. No. 36, & 39-43)

$

$

Not available

36

Lawn-Boy 611413

Lockwasher

$

$

Not available

37

Lawn-Boy 612540

Blade-21"
(Superseded to 612540-03)

$47.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 611398

Screw-Blade

$18.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 611417

Screw

$

$

Not available

40

Lawn-Boy 611412

Washer

$

$

Not available

41

Lawn-Boy 611399

Screw

$

$

Not available

42

Lawn-Boy 611418

Spring-Compression

$

$

Not available

43

Lawn-Boy 611415

Spring-Extension

$80.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 684688

Assembly-Housing (Incl. Ref. No. 5-6,13, & 24-25)

$1717.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611380

Grommet

$

$

Not available

46

Lawn-Boy 613532

Cover-Lower Drive

$

$

Not available

47

Lawn-Boy 16-2219

Cover-Upper Driver (Incl. Ref. No. 48)

$

$

Not available

48

Lawn-Boy 92-2939

Decal-Warning

$

$

Not available
