106-7721 - Toro Right-Hand Track Guide Refit Kit for Dingo TX 425 Wide Track Compact Utility Loader RIGHT-HAND TRACK GUIDE REFIT KIT NO. 106-7721 Parts Diagram

Right-Hand Track Guide Refit Kit for Dingo TX 425 Wide Track Compact Utility Loader

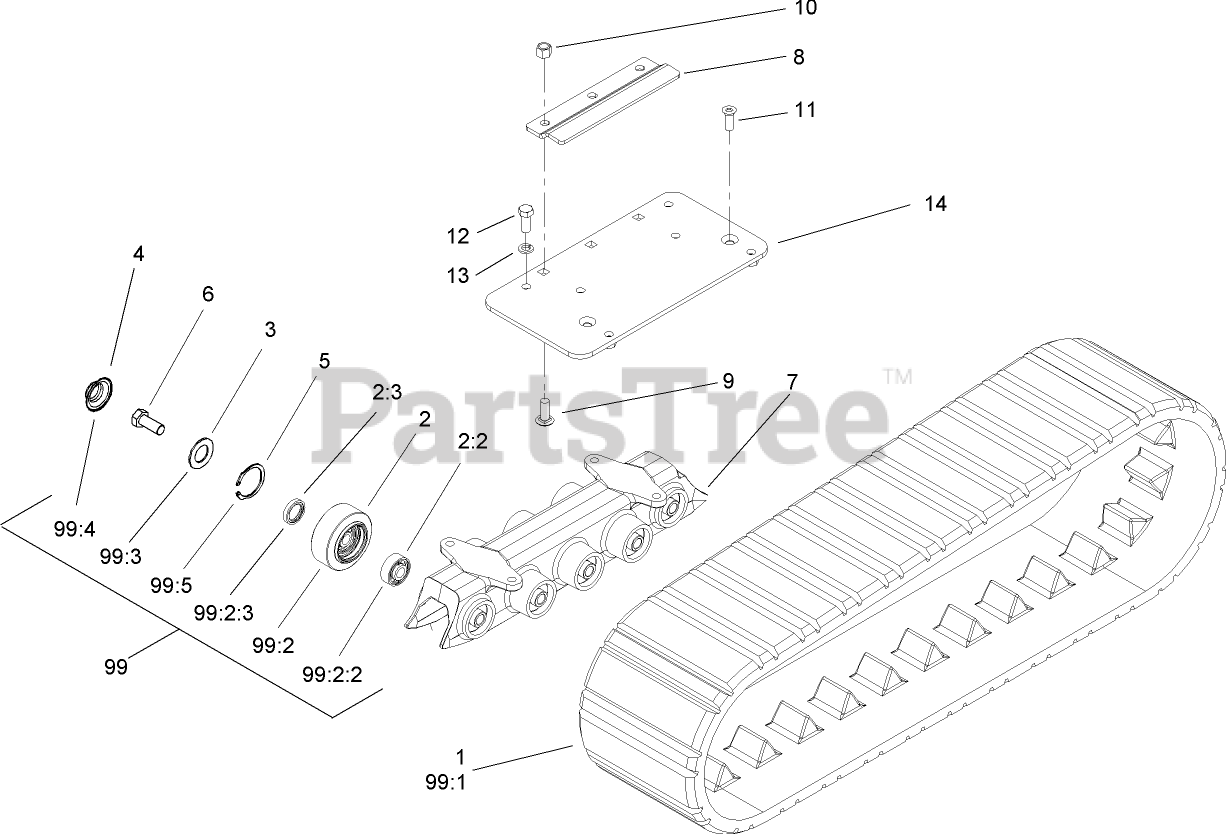

RIGHT-HAND TRACK GUIDE REFIT KIT NO. 106-7721 Parts Diagram

  • Title

1

Toro 100-8931

TRACK
(Superseded to 136-5848)

$1356.99

$

Usually ships in 3-6 days

0

2

Toro 106-7621

Road Wheel ASM
(Superseded to 138-0782)

$101.99

$

In Stock, only 3 left!

0

2:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$17.99

$

In Stock, Qty 20+

0

2:3

Toro 253-118

SEAL-OIL

$20.99

$

In Stock, Qty 18

0

3

Toro 106-7585

Gasket-Bogie

$2.49

$

In Stock, Qty 20+

0

4

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 4 left!

0

5

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

Usually ships in 3-6 days

0

6

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 107-9326-03

GUIDE-TRACK,REFIT

$

$

Not available

8

Toro 106-7748-03

PLATE-CLAMP

$

$

Not available

9

Toro 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3274-87

SCREW-HSFH

$1.99

$

Usually ships in 3-6 days

0

12

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

14

Toro 106-7745-03

RH GUIDE ADAPTER PLATE ASM

$

$

Not available

99

Toro 106-7723

TRACK REBUILD KIT

$

$

Not available

99:1

Toro 100-8931

TRACK
(Superseded to 136-5848)

$1356.99

$

Usually ships in 3-6 days

0

99:2

Toro 106-7621

Road Wheel ASM
(Superseded to 138-0782)

$101.99

$

In Stock, only 3 left!

0

99:2:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$17.99

$

In Stock, Qty 20+

0

99:2:3

Toro 253-118

SEAL-OIL

$20.99

$

In Stock, Qty 18

0

99:3

Toro 106-7585

Gasket-Bogie

$2.49

$

In Stock, Qty 20+

0

99:4

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 4 left!

0

99:5

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

Usually ships in 3-6 days

0
