106-8255 - Toro 36" Tiller Conversion Kit for Tractors 36IN TILLER CONVERSION ASSEMBLY Parts Diagram

36" Tiller Conversion Kit for Tractors

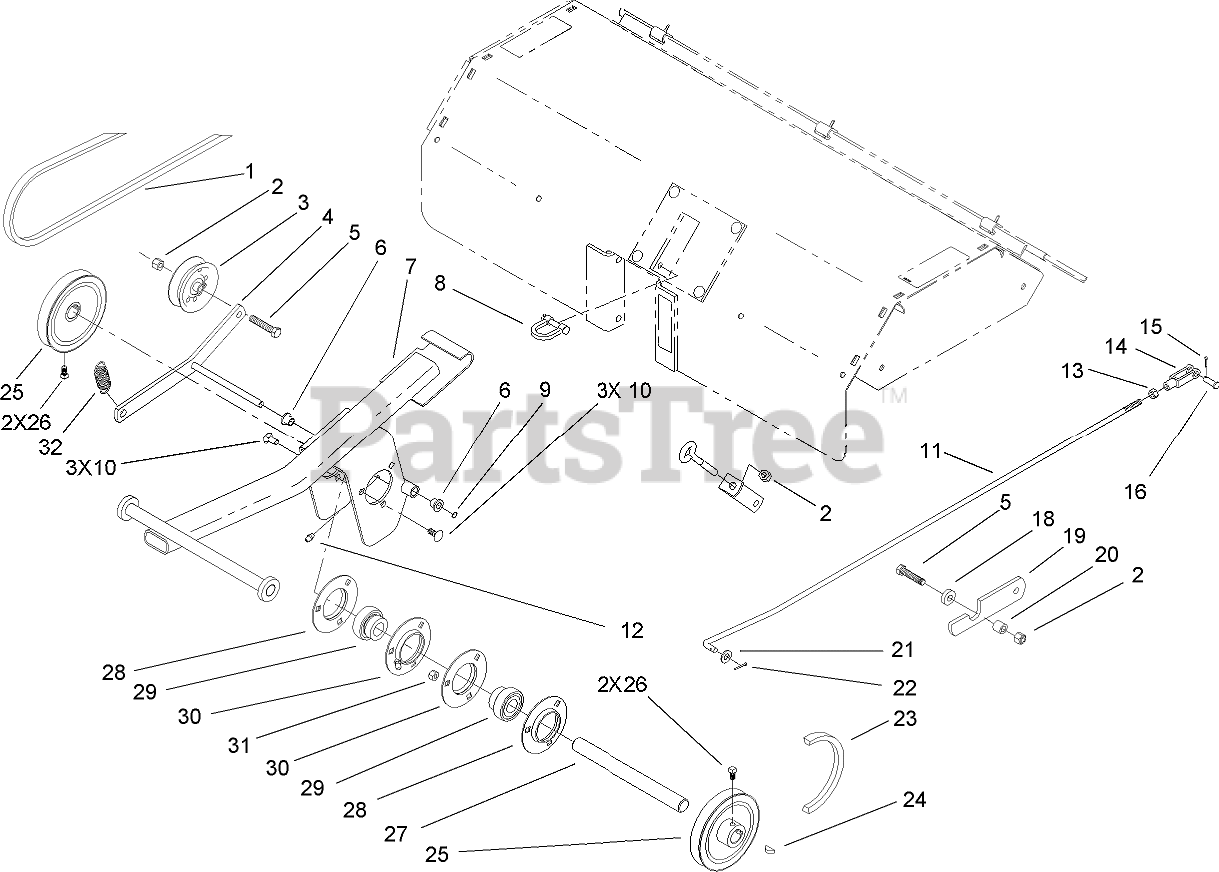

36IN TILLER CONVERSION ASSEMBLY Parts Diagram

  • Title

1

Toro 703454

V-BELT

$62.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 2 left!

0

4

Toro 106-8275

IDLER ASM

$

$

Not available

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 98-1644

BUSHING-FLANGED

$

$

Not available

7

Toro 106-8298-03

SUPPORT-JACKSHAFT

$1104.99

$

Usually ships in 3-6 days

0

8

Toro 79-2280

CLEVIS ASM

$19.99

$

Usually ships in 3-6 days

0

9

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

10

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 106-8273

ROD-LIFT

$

$

Not available

12

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

13

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 14

0

14

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, Qty 6

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 17

0

18

Toro 9202204

Washer
(Superseded to 920220)

$3.99

$

Usually ships in 3-6 days

0

19

Toro 92-7023-03

CATCH-SPRING

$46.99

$

Usually ships in 3-6 days

0

20

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

23

Toro 106-5813

V-BELT, TRACTION

$107.99

$

Usually ships in 3-6 days

0

24

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

25

Toro 94-7842

PULLEY-V

$199.99

$

Usually ships in 3-6 days

0

26

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 6

0

27

Toro 94-7840

SHAFT-JACK

$124.99

$

Usually ships in 3-6 days

0

28

Toro 110568

Flange

$18.99

$

Usually ships in 3-6 days

0

29

Toro 110569

BEARING AND COLLAR

$108.99

$

In Stock, only 4 left!

0

30

Toro 110567

FLANGE-ZERK RELUBE

$22.99

$

In Stock, only 1 left!

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 92-7305

SPRING-EXTENSION

$10.99

$

In Stock, only 1 left!

0
