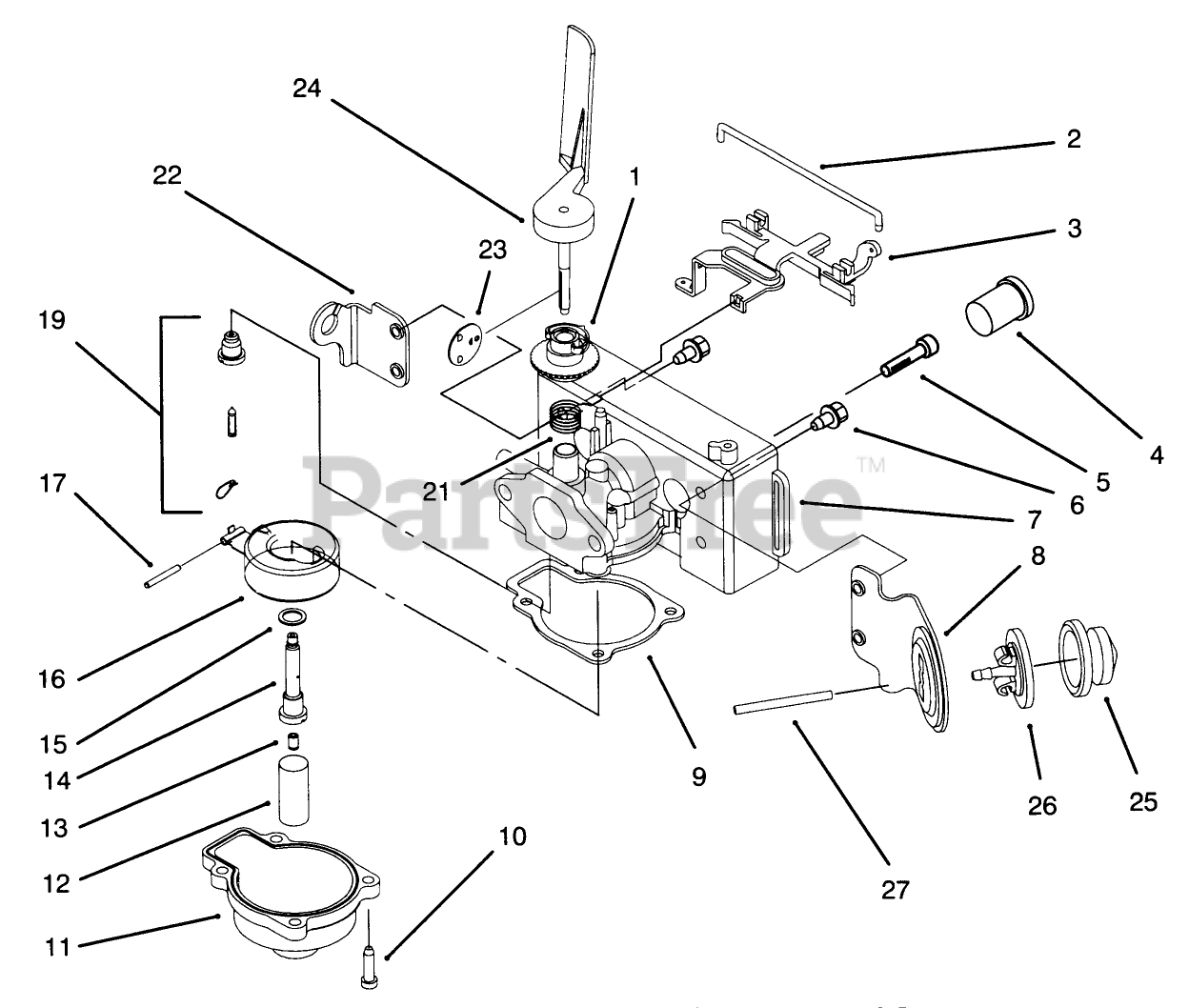

10600 - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) Carburetor Assembly Parts Diagram

Walk-Behind Mower

Carburetor Assembly Parts Diagram

  • Title

1

Lawn-Boy 610834

COLLAR-ADJUST, AIRVANE

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 610165

RETAINER

$4.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 93-1225

LEVER-ADJ. VF

$2.49

$

In Stock, Qty 11

0

4

Lawn-Boy 611545

See Supercession: 93-4320
(Superseded to 93-4320)

$

$

Not available

5

Lawn-Boy 609482

SCREW

$2.49

$

In Stock, Qty 8

0

6

Lawn-Boy 613269

SCREW

$1.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 93-1228

See Supercession: 93-1234
(Superseded to 93-1234)

$216.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 93-1232

BRKT-PRIMER F

$

$

Not available

9

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 608850

SCREW-HH

$1.99

$

In Stock, Qty 5

0

11

Lawn-Boy 92-9691

CHAMBER-FLOAT

$37.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611071

FILTER-FUEL VS

$15.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 92-6370

JET-MAIN VF

$13.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 92-6371

DISCONTINUED

$

$

Not available

15

Lawn-Boy 612383

WASHER

$1.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 678113

DISCONTINUED

$

$

Not available

17

Lawn-Boy 92-6389

PIN-STRAIGHT

$5.49

$

In Stock, only 3 left!

0

19

Lawn-Boy 92-9697

VALVE / SEAT-FLOAT

$21.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 92-4944

SPRING-GOV V

$8.99

$

In Stock, Qty 9

0

22

Lawn-Boy 93-1226

DISCONTINUED

$

$

Not available

23

Lawn-Boy 92-6373

DISC-THRO. V

$4.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 92-6376

See Supercession: 104-4430
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 44-3175

See Supercession: 44-3172
(Superseded to 44-3172)

$5.49

$

In Stock, Qty 8

0

Lawn-Boy 93-4319

DISCONTINUED

Note: Not illustrated

$

$

Not available
