10600 - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) Housing Assembly Parts Diagram

Walk-Behind Mower

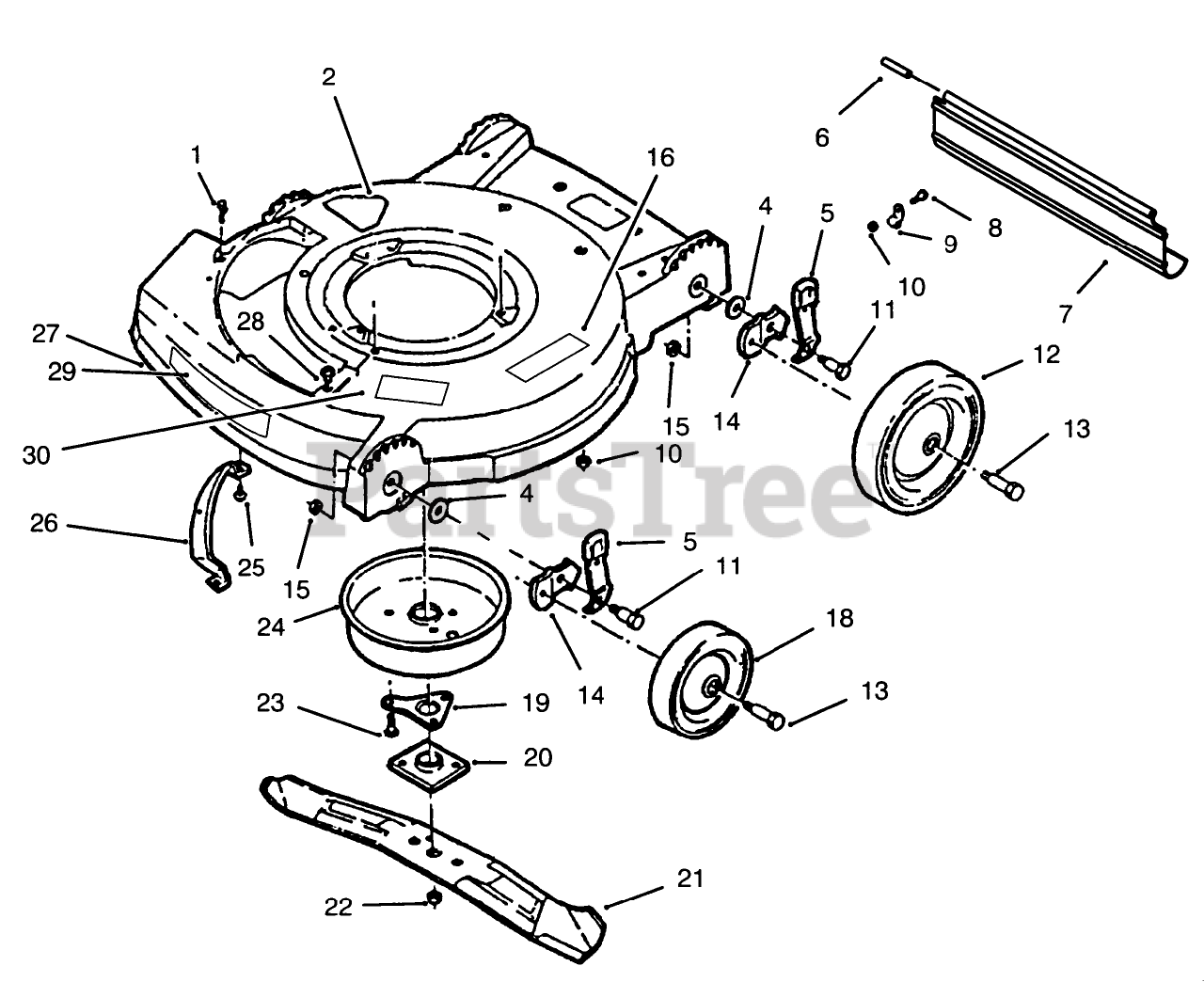

Housing Assembly Parts Diagram

  • Title

1

Lawn-Boy 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

4

Lawn-Boy 608834

WASHER

$15.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 153444

SPRING ARM ASM

$

$

Not available

6

Lawn-Boy 32121-61

PIN-ROLL

$1.49

$

In Stock, Qty 6

0

7

Lawn-Boy 93-4368

SHIELD - TRAILING

$36.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

$

$

Not available

9

Lawn-Boy 608161

CLAMP ROD KMC

$10.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 610646

BOLT

$6.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-8889

8" WHEEL/TIRE ASM-GREY

$144.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 603567

BOLT-SHOULDER

$13.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

$22.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 93-7250

DECAL-WARNING

$14.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 92-8888

DISCONTINUED

$

$

Not available

19

Lawn-Boy 609786

SUPPORT F

$20.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 677525

PLATE AND COLLAR ASM

$23.99

$

In Stock, Qty 11

0

21

Lawn-Boy 612543

See Supercession: 612543-03
(Superseded to 612543-03)

$29.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0

23

Lawn-Boy 609471

SCREW

$4.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 682876

MUFFLER COVER F

$143.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

26

Lawn-Boy 608175

BAR-TOE

$75.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 16-2149

DISCONTINUED

$

$

Not available

28

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-9550

DISCONTINUED

$

$

Not available

30

Lawn-Boy 93-3191

DISCONTINUED

$

$

Not available
