10601 - Lawn-Boy Walk-Behind Mower (SN: 006900001 - 006999999) (1996) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

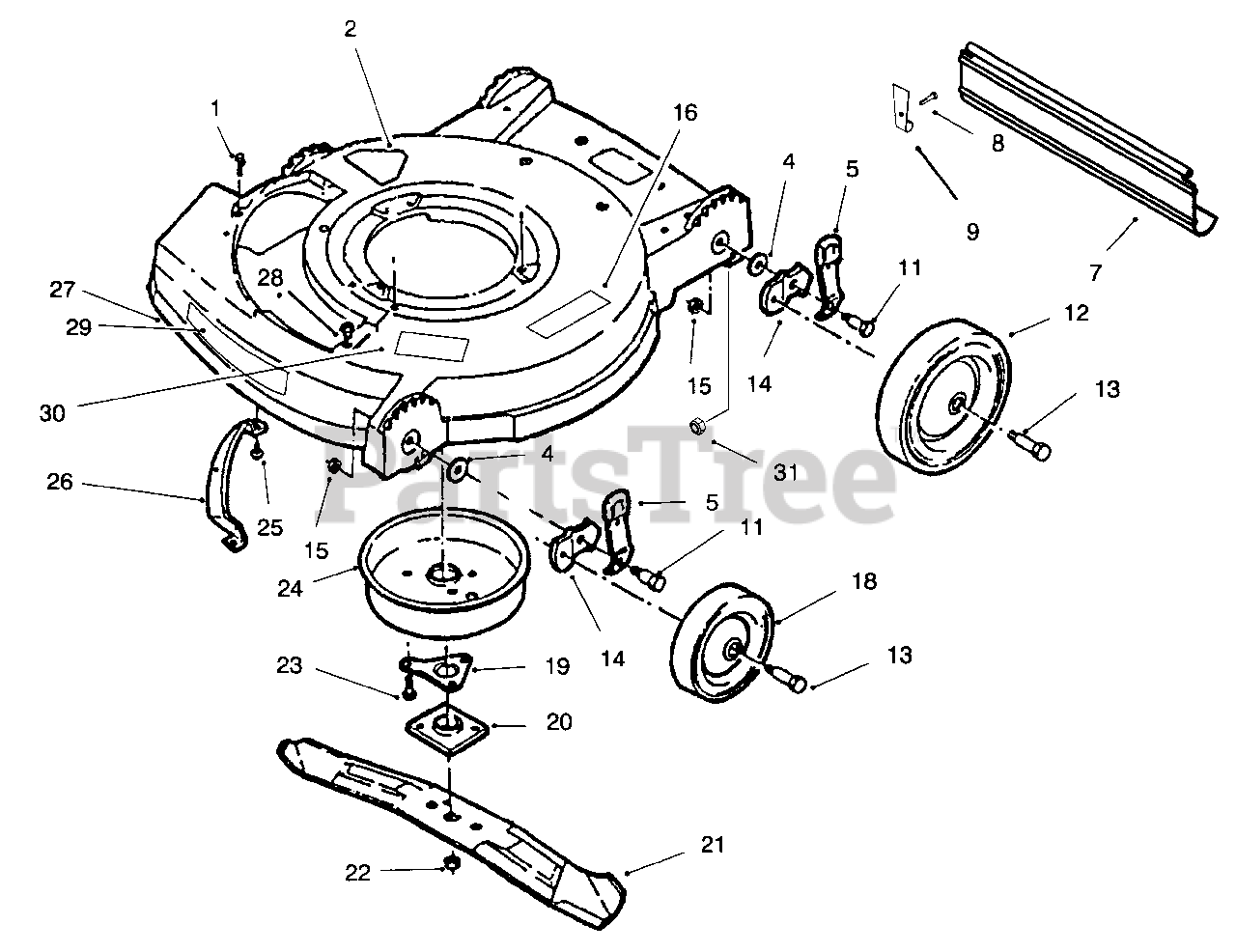

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614677

Screw-SEMS, Plate Cover

$4.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 39-5770

Decal-Blade Warning

$9.49

$

In Stock, Qty 7

0

4

Lawn-Boy 608834

Washer

$15.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 153444

Knob & Spring-Adjustment

$

$

Not available

7

Lawn-Boy 93-7368

Shield-Trailing

$43.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 609891

Screw
(Superseded to 700138)

$

$

Not available

9

Lawn-Boy 93-7693

Clamp-Rod, Shield

$16.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 610646

Bolt-Shoulder

$7.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-8889

Wheel-Rear, 8"

$

$

Not available

13

Lawn-Boy 603567

Bolt-Wheel

$16.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 608833

Bracket-Wheel Adjustment
(Superseded to 608833-03)

$25.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 93-7250

Decal-Warning

$16.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 92-8888

Wheel-Front, 6"

$

$

Not available

19

Lawn-Boy 609786

Plate-Support, Crankshaft

$24.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 677525

Collar & Plate

$47.99

$

In Stock, Qty 9

0

21

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$31.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$6.49

$

In Stock, Qty 9

0

23

Lawn-Boy 609471

Screw-Plate to Muffler Cov.

$4.99

$

In Stock, Qty 7

0

24

Lawn-Boy 682876

Cover-Muffler

$175.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 46-6811

Screw-Toe Bar to Housing

$3.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 608175

Toe Bar

$82.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 16-2149

Assembly-Housing (Incl. Ref. #2, 16, 28, & 30)

$

$

Not available

28

Lawn-Boy 94-1610

Grommet

$1.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-9550

Decal

$

$

Not available

30

Lawn-Boy 93-3191

Decal-No Rust

$

$

Not available

31

Lawn-Boy 3296-52

Nut-Lock

$6.99

$

Usually ships in 3-6 days

0
