106232-0269-H5 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

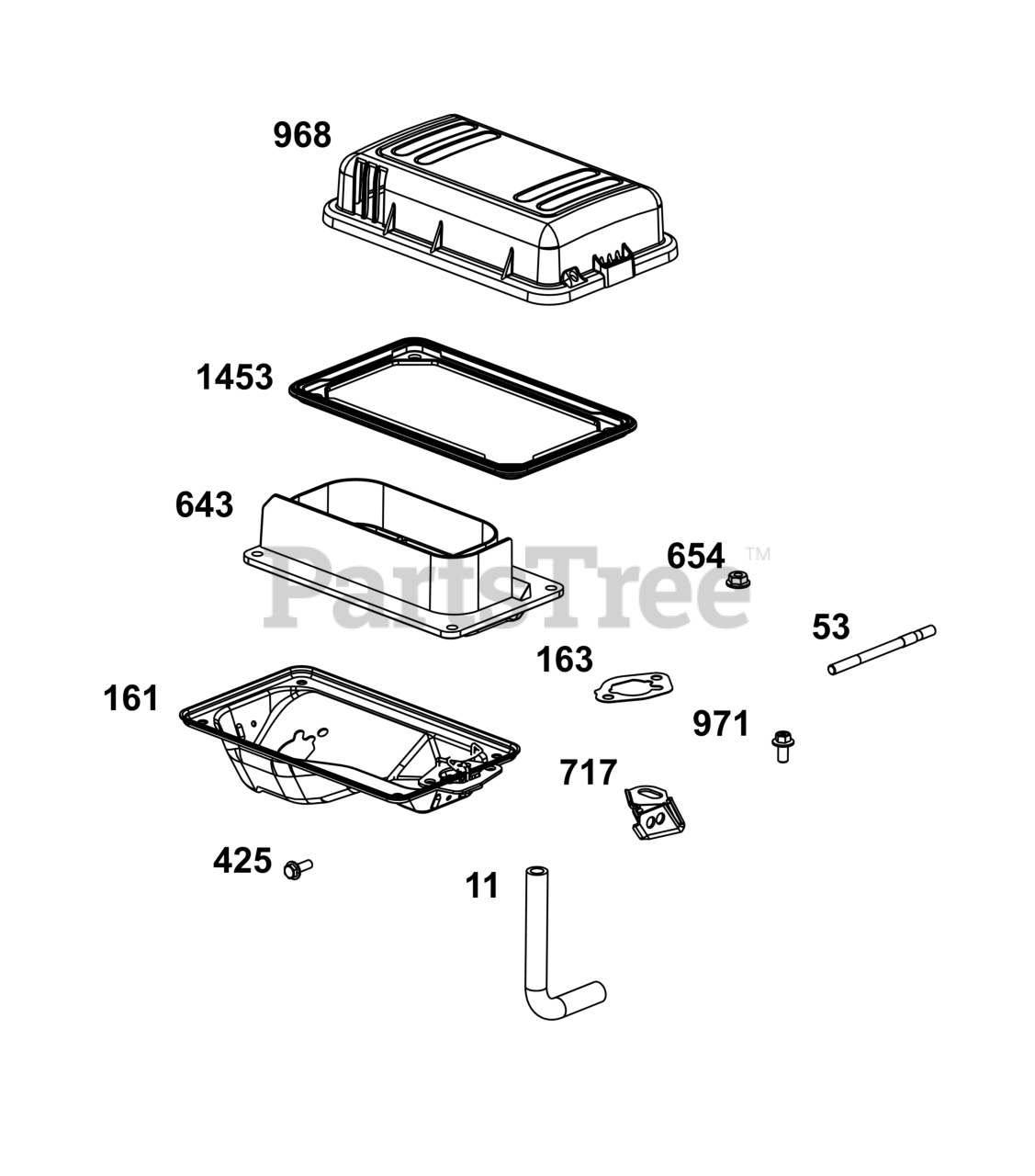

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 591725

TUBE, Breather

$7.99

$

Usually ships in 2-12 days

0

53

STUD

Note: (Part information located in Carburetor Group.)

$

$

Not available

161

Briggs & Stratton 591714

BASE, Air Cleaner

$31.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

425

Briggs & Stratton 591716

SCREW

Note: (Air Cleaner Cover)

$2.49

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 591718

RETAINER-AIR FILTER

$17.99

$

Usually ships in 2-12 days

0

654

NUT

Note: (Part information located in Carburetor Group.)

$

$

Not available

717

Briggs & Stratton 591719

BRACKET, Air Cleaner

$7.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 591720

COVER, Air Cleaner

$22.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 590643

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.99

$

Usually ships in 2-12 days

0

1453

Briggs & Stratton 591715

SEAL, Air Cleaner Cover

$7.99

$

Usually ships in 2-12 days

0
