10641 C - Lawn-Boy 20" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CRANKCASE COVER AND SUMP ASSEMBLY BRIGGS AND STRATTON 124T02-0212-B1 Parts Diagram

20" Walk-Behind Mower

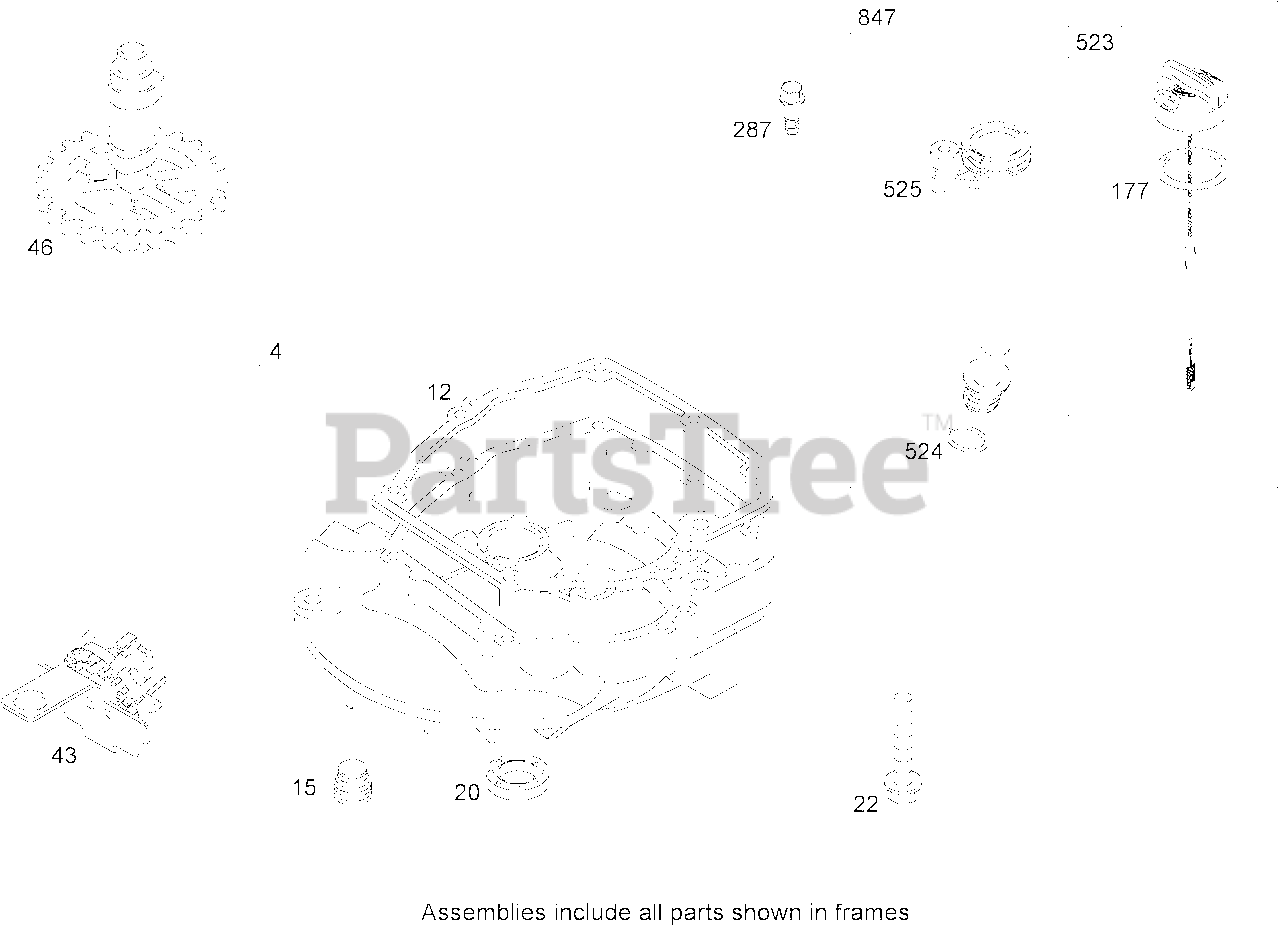

CRANKCASE COVER AND SUMP ASSEMBLY BRIGGS AND STRATTON 124T02-0212-B1 Parts Diagram

  • Title

4

Lawn-Boy 493279

Sump-Engine

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

12

Lawn-Boy 692232

Gasket-Crankcase (.015 STD)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

15

Lawn-Boy 691680

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Lawn-Boy 399781s

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

22

Lawn-Boy 691092

Screw (Crankcase Cover to Sump)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

43

Lawn-Boy 691997

Slinger-Oil, Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

46

Lawn-Boy 691449

Camshaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

177

Lawn-Boy 691031

Seal-O Ring (Dipstick)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

287

Lawn-Boy 690940

Screw (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

523

Lawn-Boy 499621

Dipstick

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

524

Lawn-Boy 692296

Seal-O Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

525

Lawn-Boy 495265

Tube-Dipstick

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

847

Lawn-Boy 692047

Dipstick Tube ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
