10643 C - Lawn-Boy 20" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ENGINE AND BLADE ASSEMBLY Parts Diagram
20" Walk-Behind Mower

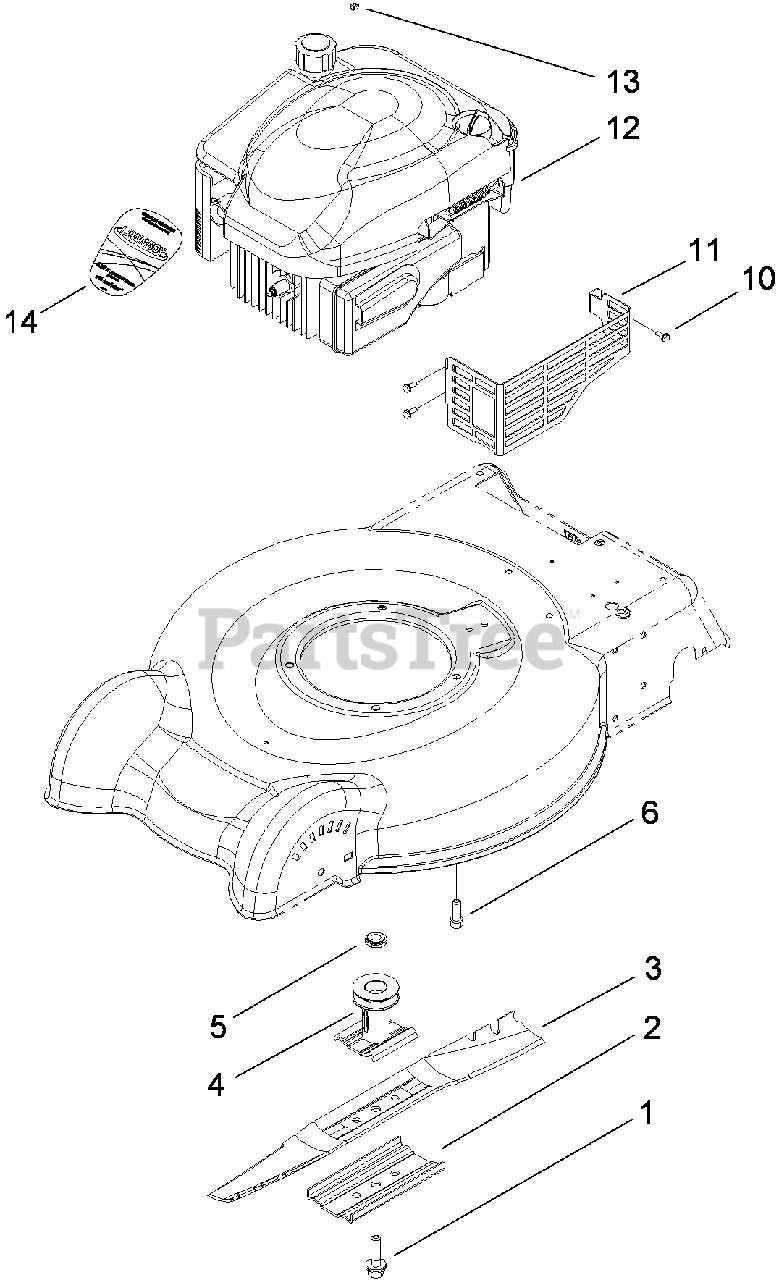

ENGINE AND BLADE ASSEMBLY Parts Diagram
$3.99
$
In Stock, Qty 20+
Lawn-Boy 108-3766-03
SUPPORT-BLADE
$11.99
$
In Stock, Qty 20+
$29.99
$
In Stock, Qty 8
Lawn-Boy 106-3987
BLADE DRIVER ASM
$34.99
$
In Stock, Qty 20+
Lawn-Boy 106-3999
Spacer-Driver
$3.99
$
In Stock, Qty 20+
Lawn-Boy 95-1726
SCREW-TAPTITE
$2.99
$
In Stock, Qty 20+
Lawn-Boy 32144-1
SCREW-TAPTITE
$3.99
$
In Stock, Qty 20+
Lawn-Boy 104-7577-03
SHIELD-MUFFLER
$27.99
$
Usually ships in 3-6 days
12
ENGINE-B&S, 124T02-0222-B
Note: Not serviced separately Obtain parts from www.briggsandstratton.com
$
$
Not available
Lawn-Boy 2210-316
STOP-ROPE
$8.49
$
Usually ships in 3-6 days
Lawn-Boy 112-8844
DECAL
$
$
Not available
