10647 - Lawn-Boy 20" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 124L05-0128-F1 Parts Diagram

20" Walk-Behind Mower

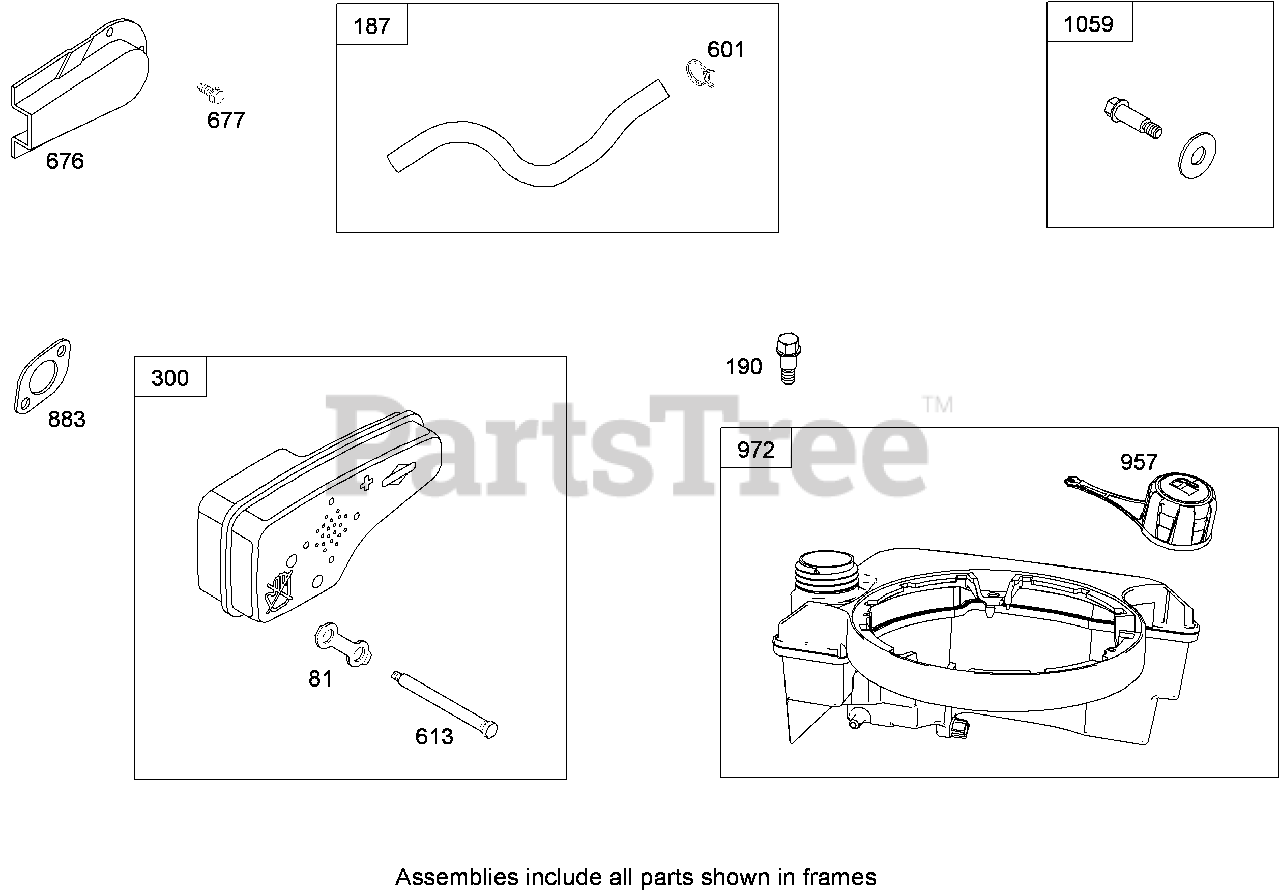

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 124L05-0128-F1 Parts Diagram

  • Title
81

Lawn-Boy 691740

Lock-Screw, Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

187

Lawn-Boy 791873

Line-Fuel (Molded)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

190

Lawn-Boy 690940

Screw (Fuel Tank)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

300

Lawn-Boy 790828

Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

601

Lawn-Boy 791850

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

613

Lawn-Boy 790833

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

676

Lawn-Boy 493871

Deflector-Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

677

Lawn-Boy 690661

Screw (Muffler Deflector)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

883

Lawn-Boy 691881

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358) Included in Valve Gasket Set (Ref. No. 1095) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

957

Lawn-Boy 796577

Cap-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

972

Lawn-Boy 796578

Tank-Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1059

Lawn-Boy 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
