10650 - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) Carburetor Assembly Parts Diagram

Walk-Behind Mower

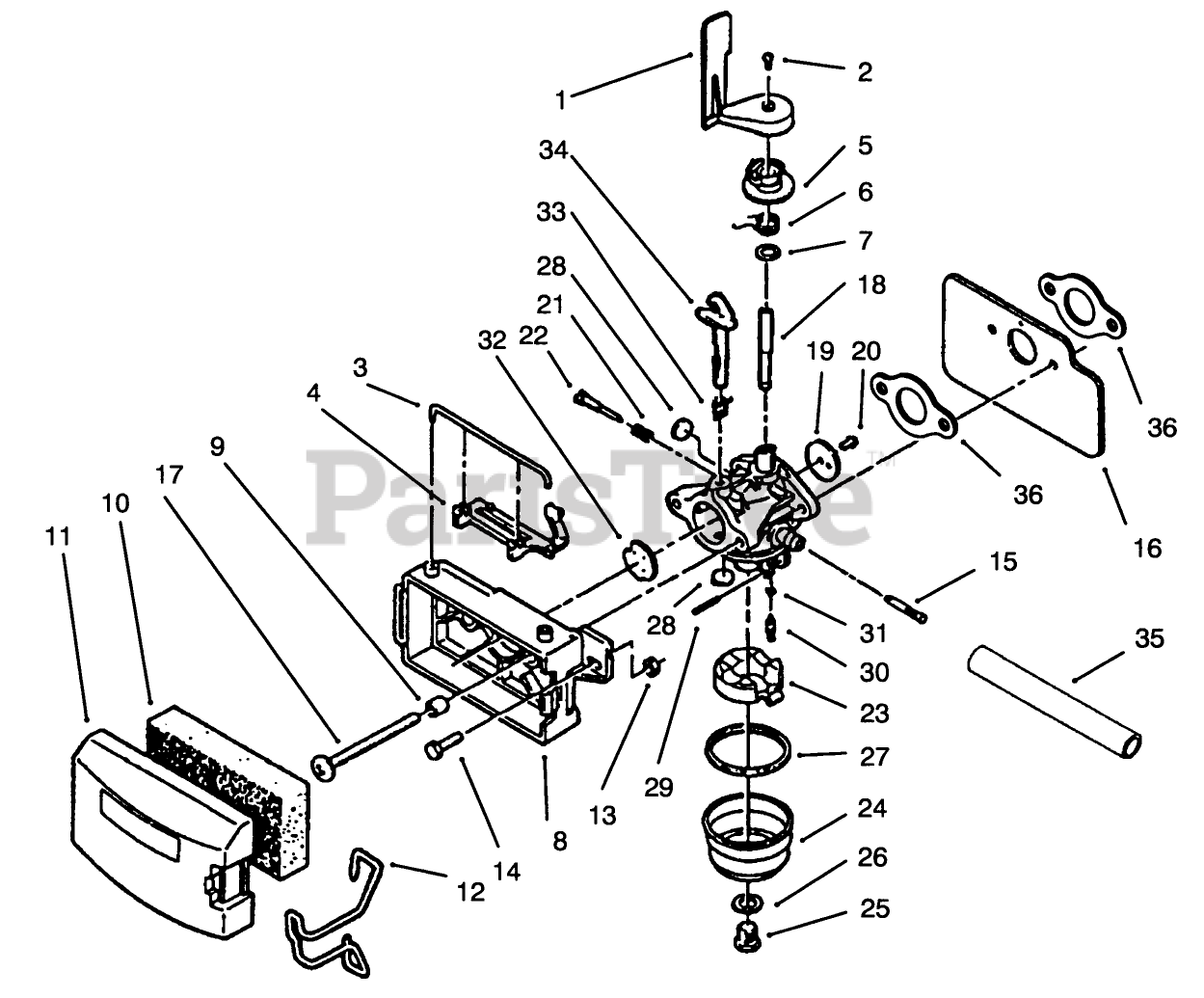

Carburetor Assembly Parts Diagram

  • Title

Lawn-Boy 684256

See Supercession: 684352
(Superseded to 684352)

Note: Not illustrated

$360.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 612505

AIR VANE F

$

$

Not available

2

Lawn-Boy 92-6392

SCREW,PAN HD F

$1.49

$

In Stock, only 1 left!

0

3

Lawn-Boy 610165

RETAINER

$4.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 612502

DISCONTINUED

$

$

Not available

5

Lawn-Boy 612757

COLLAR A/VAVE F

$3.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 613142

THROTTLE SPR E

$6.99

$

In Stock, Qty 13

0

7

Lawn-Boy 308052

WASHER VF

$3.99

$

In Stock, only 4 left!

0

8

Lawn-Boy 612504

DISCONTINUED

$

$

Not available

9

Lawn-Boy 612503

SPACER

$5.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

$4.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 611377

See Supercession: 93-1231
(Superseded to 93-1231)

$

$

Not available

12

Lawn-Boy 610383

RETAINER-COVER, FILTER

$7.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 328712

See Supercession: 3217-26
(Superseded to 3217-26)

$1.99

$

In Stock, Qty 5

0

14

Lawn-Boy 314576

SCREW

$1.49

$

In Stock, Qty 9

0

15

Lawn-Boy 612974

SCREEN FUEL PITTS

$6.99

$

In Stock, Qty 11

0

16

Lawn-Boy 92-4947

DISCONTINUED
(Superseded to 93-1221)

$

$

Not available

17

Lawn-Boy 612507

SCREW

$4.99

$

In Stock, Qty 7

0

Lawn-Boy 684286

KIT THROTTLE S

$60.99

$

Usually ships in 3-6 days

0

18

Throttle Shaft

$

$

Not available

19

Throttle Valve

$

$

Not available

20

Screw-Throttle Valve

$

$

Not available

Lawn-Boy 684285

DISCONTINUED

$

$

Not available

21

Spring-Idle Needle

$

$

Not available

22

Idle Needle

$

$

Not available

23

Lawn-Boy 683783

DISCONTINUED

$

$

Not available

Lawn-Boy 683782

BOWL KIT S

$53.99

$

Usually ships in 3-6 days

0

24

Fuel Bowl

$

$

Not available

25

Screw-Bowl Retainer

$

$

Not available

Gasket Kit

$

$

Not available

Lawn-Boy 683778

GASKET KIT S

$7.99

$

In Stock, Qty 5

0

26

Bowl Retainer Gasket

$

$

Not available

27

Fuel Bowl Gasket

$

$

Not available

Lawn-Boy 683777

REPAIR KIT S

$

$

Not available

28

Plug-Welch

$

$

Not available

29

Float Shaft

$

$

Not available

30

Inlet Needle Valve

$

$

Not available

31

Valve Seat

$

$

Not available

Lawn-Boy 683781

CHOKE KIT S

$45.99

$

In Stock, only 1 left!

0

32

Choke Valve

$

$

Not available

33

Choke Return Spring

$

$

Not available

34

Choke Shaft

$

$

Not available

35

Lawn-Boy 612784

GAS LINE

$8.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 612574

GASKET CARB S

$6.49

$

In Stock, Qty 20+

0
