10650 - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) Engine Assembly Parts Diagram

Walk-Behind Mower

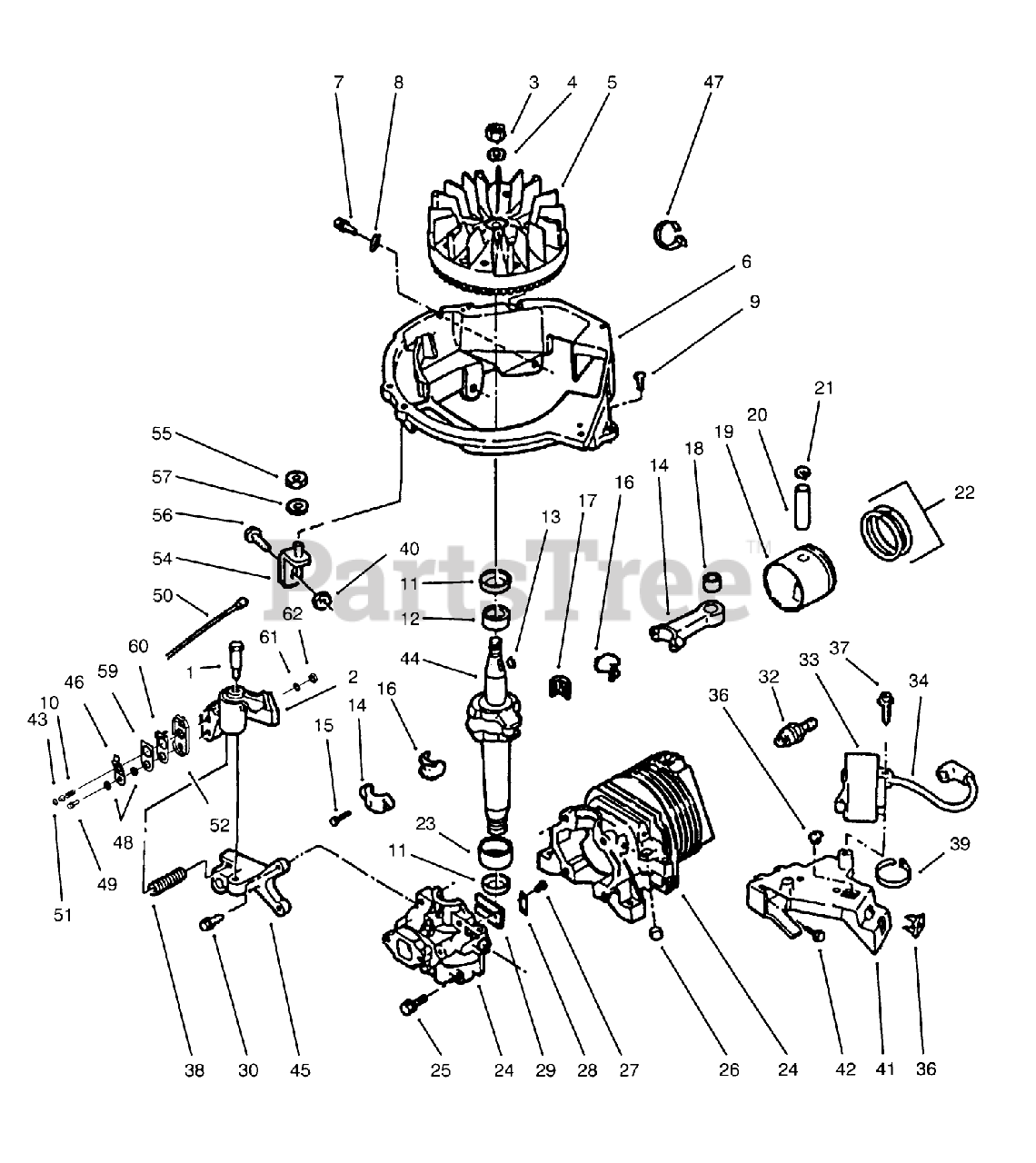

Engine Assembly Parts Diagram

  • Title

1

Lawn-Boy 613529

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 682683

DISCONTINUED

$

$

Not available

3

Lawn-Boy 130743

NUT

$2.99

$

In Stock, Qty 7

0

4

Lawn-Boy 316959

See Supercession: 3253-6
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 683580

FLYWHEEL ASSY F

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 612427

BASE SHROUD F

$

$

Not available

7

Lawn-Boy 609947

SCREW-SEMS

$9.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

DISCONTINUED

$

$

Not available

9

Lawn-Boy 609808

SCREW F

$11.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611214

SPRING

$8.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 611396

SEAL-OIL

$5.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 681830

BEARING V

$35.99

$

In Stock, only 4 left!

0

13

Lawn-Boy 607199

KEY

$4.99

$

In Stock, Qty 12

0

Lawn-Boy 92-4925

DISCONTINUED

Note: Not illustrated

$

$

Not available

14

Lawn-Boy 92-4921

CONNECTING ROD ASM

$206.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 611393

SCREW-HSH

$19.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 677982

LINER ASM

$40.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 683911

BEARING-NEEDLE

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 92-4927

BEARING XEV

$33.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 92-4923

DISCONTINUED

$

$

Not available

20

Lawn-Boy 606608

See Supercession: 94-5774
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

RING-RETAINING

$2.99

$

In Stock, Qty 13

0

22

Lawn-Boy 681737

DISCONTINUED

$

$

Not available

23

Lawn-Boy 681831

BEARING V

$23.99

$

In Stock, Qty 5

0

24

Lawn-Boy 683702

DISCONTINUED

$

$

Not available

25

Lawn-Boy 613110

SCREW-H.W.HD. F

$

$

Not available

26

Lawn-Boy 609123

PLUG-CORE VF

$2.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612872

SCREW-HH

$2.49

$

In Stock, Qty 7

0

28

Lawn-Boy 602587

PLATE-BACKUP, REED

$2.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

DISCONTINUED

$

$

Not available

30

Lawn-Boy 613233

SCREW

$3.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 614009

SPARK PLUG

$5.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 683215

See Supercession: 100-2948
(Superseded to 100-2948)

$107.99

$

In Stock, Qty 5

0

34

Lawn-Boy 681678

HT LEAD&COVER XEV

$23.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605120

NUT-CLIP

$3.99

$

In Stock, Qty 16

0

37

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

$2.99

$

In Stock, only 4 left!

0

38

Lawn-Boy 611211

SPRING-BRAKE

$13.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

40

Lawn-Boy 608311

NUT-LOCK F

$2.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 613073

C.D. BRKT F

$

$

Not available

42

Lawn-Boy 614343

SCREW F

$2.99

$

In Stock, only 4 left!

0

43

Lawn-Boy 611509

ACTUATOR-LEVER, BRAKE

$4.99

$

In Stock, Qty 5

0

44

Lawn-Boy 92-6375

See Supercession: 94-5713
(Superseded to 94-5713)

$284.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611192

BRACKET-BRAKE F

$111.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 93-1239

SPRING-CONTACT

$2.49

$

In Stock, only 2 left!

0

47

Lawn-Boy 317893

DISCONTINUED

$

$

Not available

48

Lawn-Boy 306407

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

50

Lawn-Boy 683821

WIRE LEAD AY F

$

$

Not available

51

Lawn-Boy 611213

RETAINER S

$1.99

$

In Stock, Qty 9

0

52

Lawn-Boy 93-1240

CASE - SWITCH EF

$3.49

$

In Stock, only 3 left!

0

54

Lawn-Boy 683581

BRACE AY F

$19.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 602315

LOCKNUT E

$4.49

$

In Stock, only 2 left!

0

56

Lawn-Boy 603014

BOLT F

$2.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 306407

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

59

Lawn-Boy 612842

SHIELD

$1.49

$

Usually ships in 3-6 days

0

60

Lawn-Boy 612841

PLATE-CONTACT

$14.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 306375

See Supercession: 146254
(Superseded to 146254)

$

$

Not available

Lawn-Boy 92-6353

DISCONTINUED
(Superseded to 94-5734)

Note: Not illustrated

$

$

Not available

Lawn-Boy 93-4307

SWITCH KIT S

Note: Not illustrated

$42.99

$

Usually ships in 3-6 days

0
