10655 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 250000001 - 250999999) (2005) FAN COVER ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

Gold Series Walk-Behind Mower

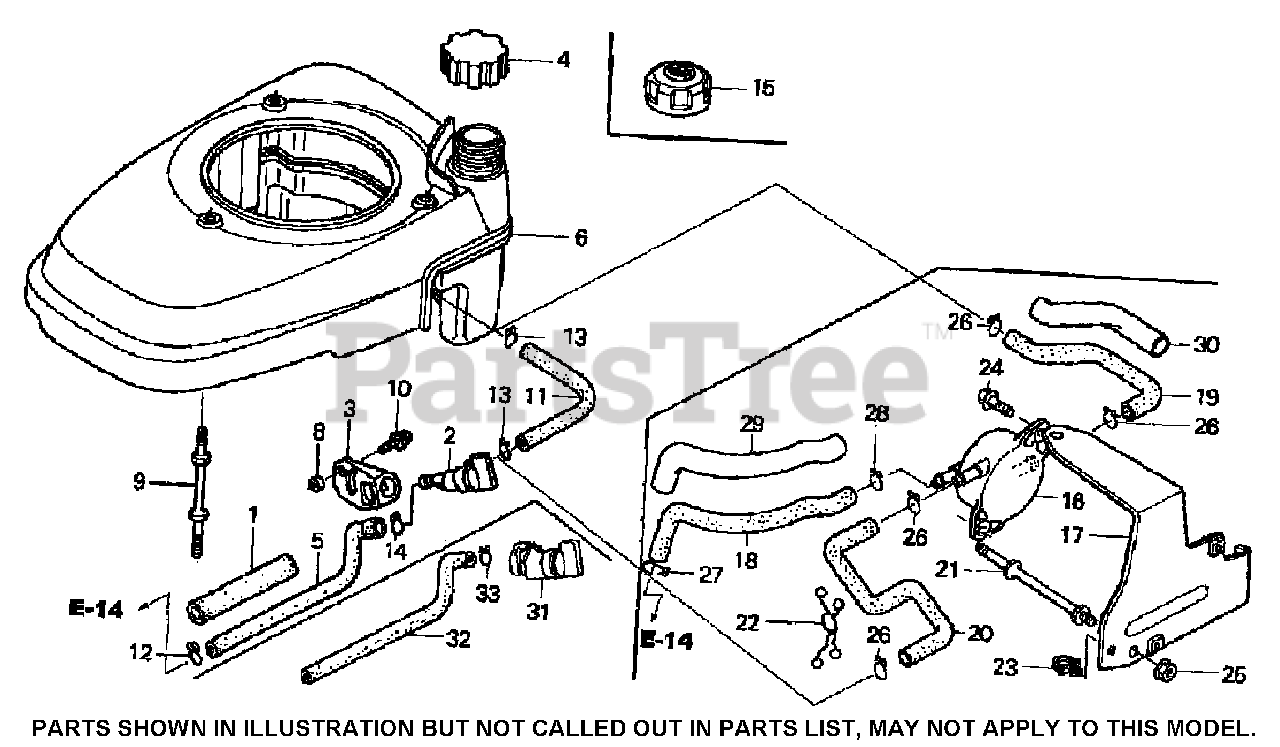

FAN COVER ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

  • Title
1

Lawn-Boy 16854-ZH8-000

SUPPORTER-RUBBER (107MM)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 16950-ZG9-M03

PETCOCK ASM.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 16956-ZG9-M00

BRACKET, PETCOCK

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 17620-ZL8-013

FUEL TANK CAP ASM

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 17702-ZM0-000

TUBE, FUEL

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

6

Lawn-Boy 19610-Z0L-800ZA

COVER-FAN

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

8

Lawn-Boy 91501-ZOL-800

COLLAR-FUEL PETCOCK

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

9

Lawn-Boy 90043-ZL8-000

BOLT-STUD

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

10

Lawn-Boy 93891-05010-08

SCREW-WASHER (5X10)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

11

Lawn-Boy 17701-Z0L-000

TUBE, FUEL TANK

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

12

Lawn-Boy 95002-02080

CLIP-TUBE (B8)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

13

Lawn-Boy 95002-02100

CLIP-TUBE (B10)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

14

Lawn-Boy 95002-50000

CLIP-TUBE (C9)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
