10656 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) RWD REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

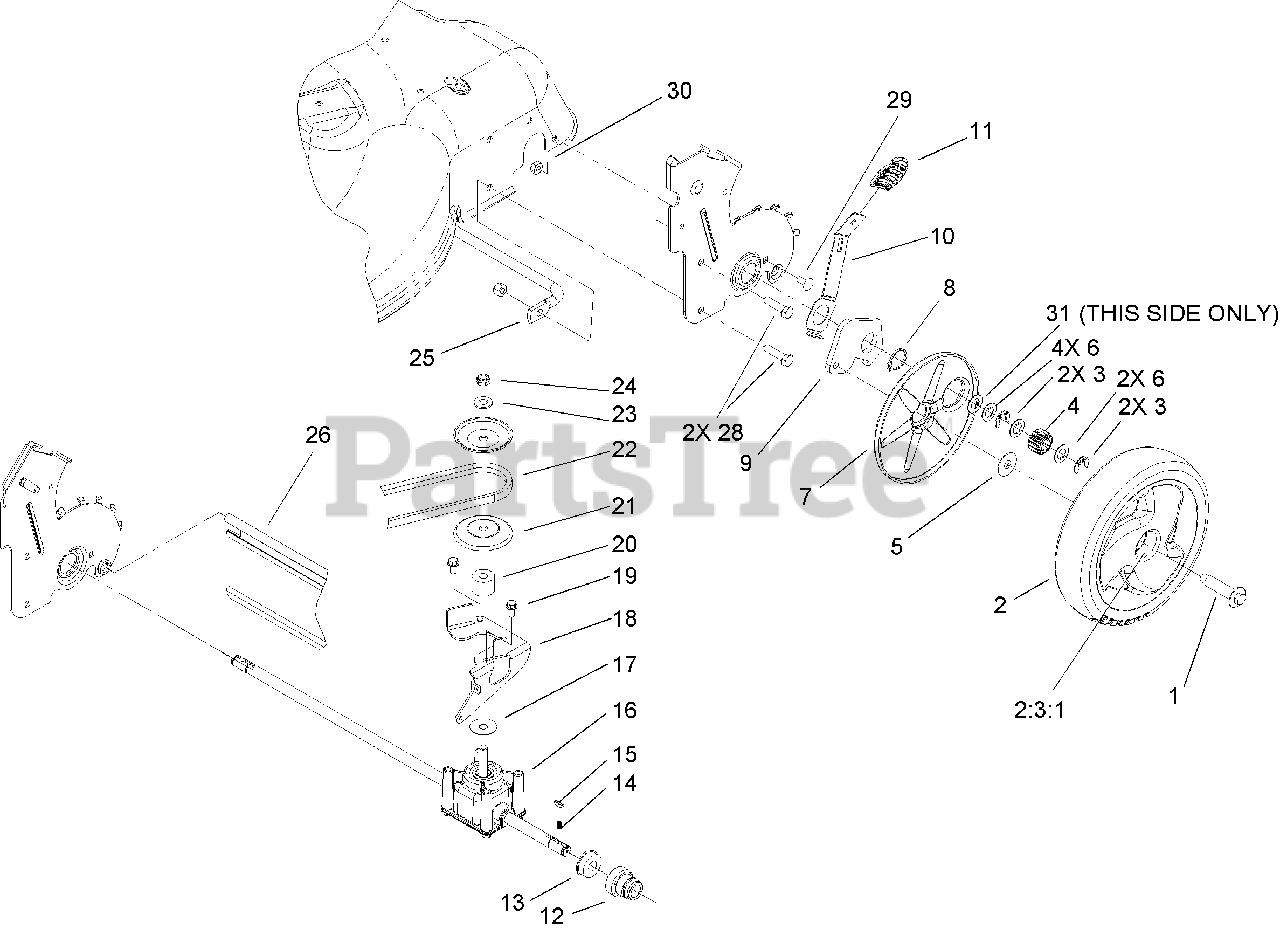

RWD REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 107-1918

WHEEL GEAR ASM, 8-INCH

$45.99

$

In Stock, Qty 5

0

2:3:1

Lawn-Boy 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 65-2720

KLIPRING-LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 105-3040

Gear-Pinion, 15t

$4.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 105-6840

Washer-Thrust

$1.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 107-1919

COVER-WHEEL
(Superseded to 110-1793)

$9.99

$

In Stock, Qty 6

0

8

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 105-1819

Arm-Pivot, Rear

$11.99

$

In Stock, Qty 10

0

10

Lawn-Boy 105-1809

Arm-Spring

$11.99

$

In Stock, Qty 8

0

11

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

12

Lawn-Boy 104-8698

RETAINER-BEARING, HOC

$10.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 39-9650

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 612066

KEY

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 106-3956

TRANSMISSION ASM

$108.99

$

In Stock, Qty 7

0

17

Lawn-Boy 105-6814

Washer-Shield

$1.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 105-1832-03

BRACKET-PIVOT, RWD
(Superseded to 106-6809-03)

$11.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-5791

SPACER

$5.49

$

In Stock, Qty 19

0

21

Lawn-Boy 100-1176

PULLEY-HALF

$8.49

$

In Stock, Qty 8

0

22

Lawn-Boy 91-2258

V-BELT

$22.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 3296-5

NUT-LOCK, NI

$3.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 105-1811

BRACE-HOC PLATE

$26.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 105-1843

Shield-Trailing
(Superseded to 114-1585)

$21.99

$

In Stock, Qty 16

0

28

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

31

Lawn-Boy 36-4780

WASHER

$7.99

$

In Stock, Qty 20+

0
