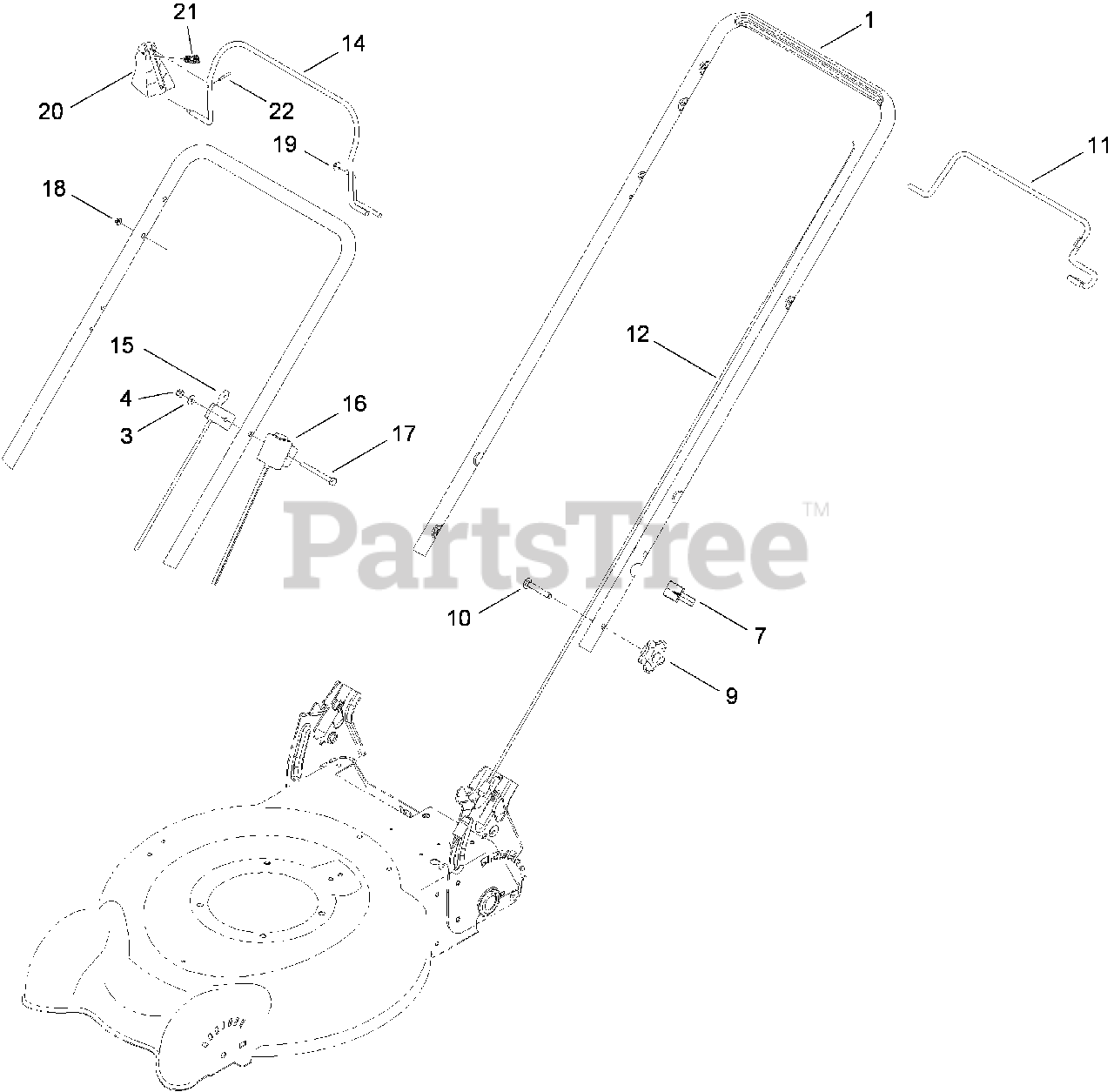

10658 - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HANDLE ASSEMBLY Parts Diagram

20" Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 119-7006-05

HANDLE-20 INCH

$

$

Currently unavailable

3

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 117-5976

KNOB-HANDLE, LOCKING

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 112-8835-02

BAIL-TRACTION, 2-BAIL FLAT

$28.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 112-8817

CABLE-TRACTION

$33.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 119-7004-02

BAIL-BRAKE

$

$

Not available

15

Lawn-Boy 119-7005

CABLE-BRAKE

$38.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

18

Lawn-Boy 108-3629

NUT-PUSH

$0.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 119-3842

STOP-BAIL

$

$

Not available

21

Lawn-Boy 117-7331

SPRING-BRAKE

$

$

Not available

22

Lawn-Boy 933156

PIN-ROLL

$1.49

$

In Stock, Qty 10

0
