10662 - Lawn-Boy Insight Walk-Behind Mower (SN: 290000001 - 290999999) (2009) REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

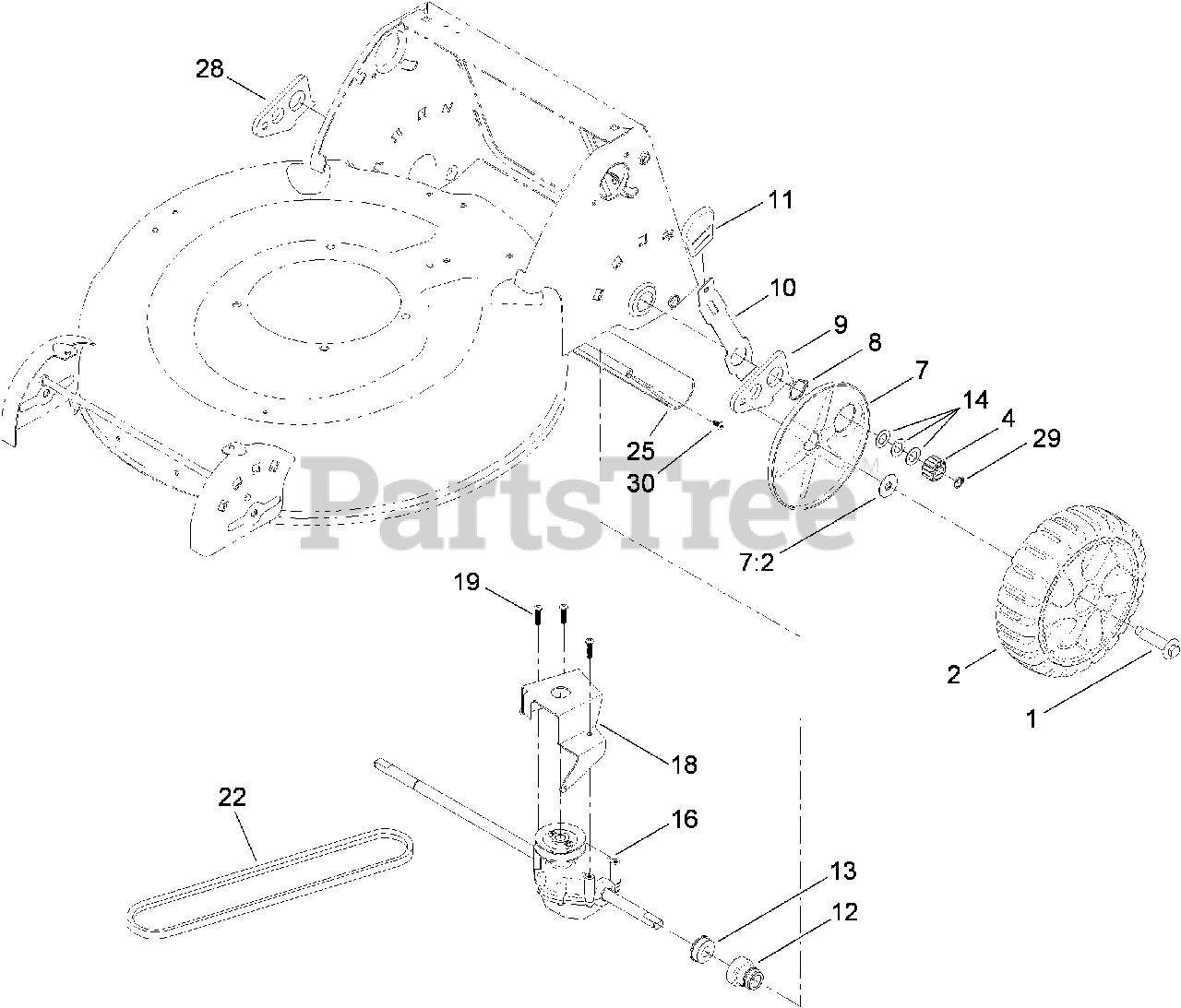

REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 107-3906

REAR WHEEL ASM
(Superseded to 117-4104)

$45.99

$

In Stock, Qty 10

0

4

Lawn-Boy 110-9417

PINION
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 110-1793

WHEEL COVER ASM

$9.99

$

In Stock, Qty 6

0

7:2

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 110-9445

ARM-SPRING, REAR

$11.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 104-8698

RETAINER-BEARING, HOC

$10.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 110-9479

TRANSMISSION ASM
(Superseded to 121-9183)

$143.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, Qty 6

0

19

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 110-9429

V-BELT

$17.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$39.99

$

In Stock, Qty 14

0

28

Lawn-Boy 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0
