10666 C - Lawn-Boy Insight Walk-Behind Mower (SN: 290000001 - 290999999) (2009) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 126T05-0247-B1 Parts Diagram

Insight Walk-Behind Mower

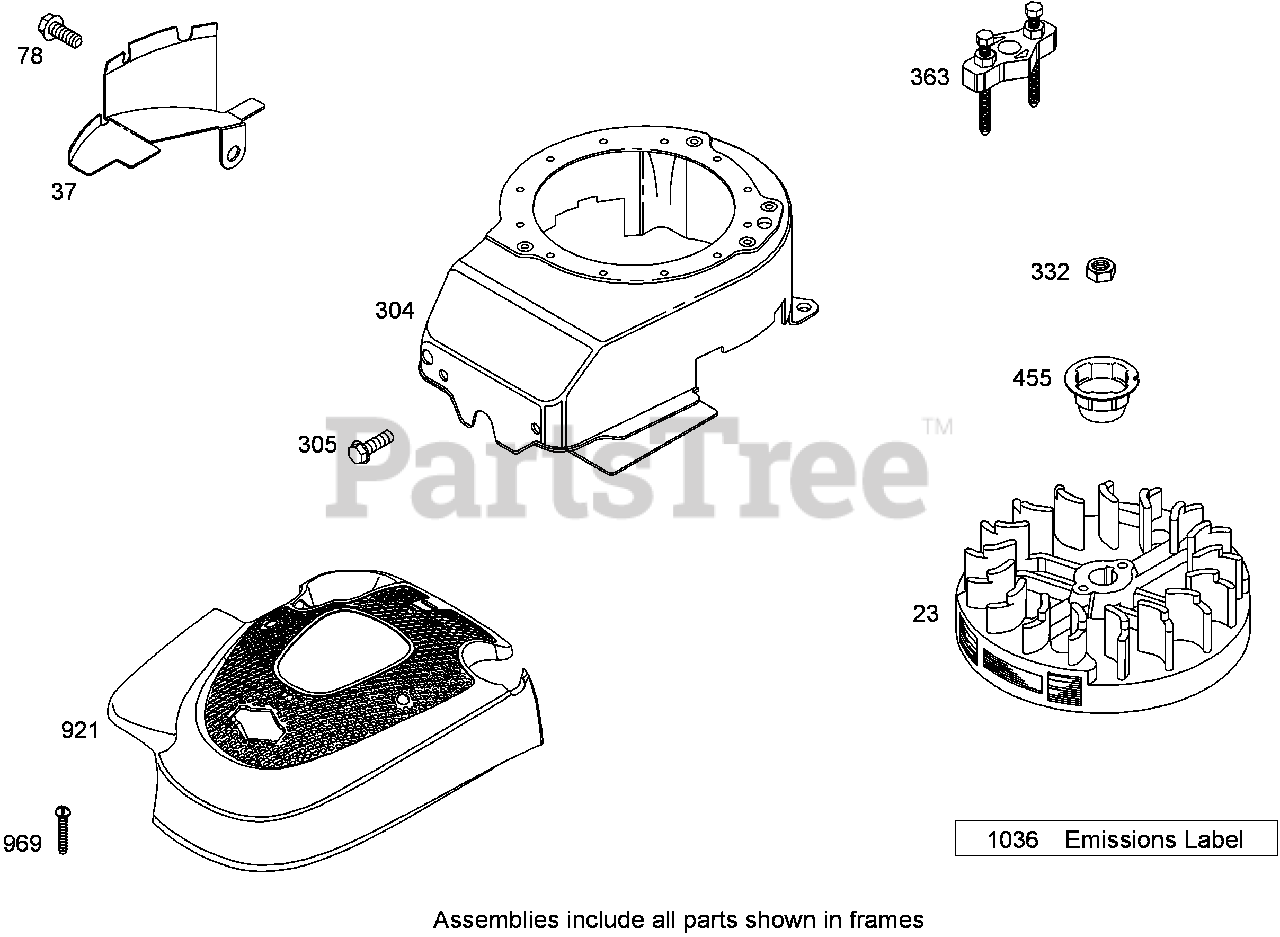

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 126T05-0247-B1 Parts Diagram

  • Title

23

Lawn-Boy 691987

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

37

Lawn-Boy 694086

Guard-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

78

Lawn-Boy 691108

Screw (Flywheel Guard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

304

Lawn-Boy 791135

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

305

Lawn-Boy 691108

Screw (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

332

Lawn-Boy 690662

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

363

Lawn-Boy 19069

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

455

Lawn-Boy 791960

Cup-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

921

Lawn-Boy 792652

Cover-Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

969

Lawn-Boy 691138

Screw (Blower Housing Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1036

Label-Emissions

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
