10666 C - Lawn-Boy Insight Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 126T05-0247-B1 Parts Diagram

Insight Walk-Behind Mower

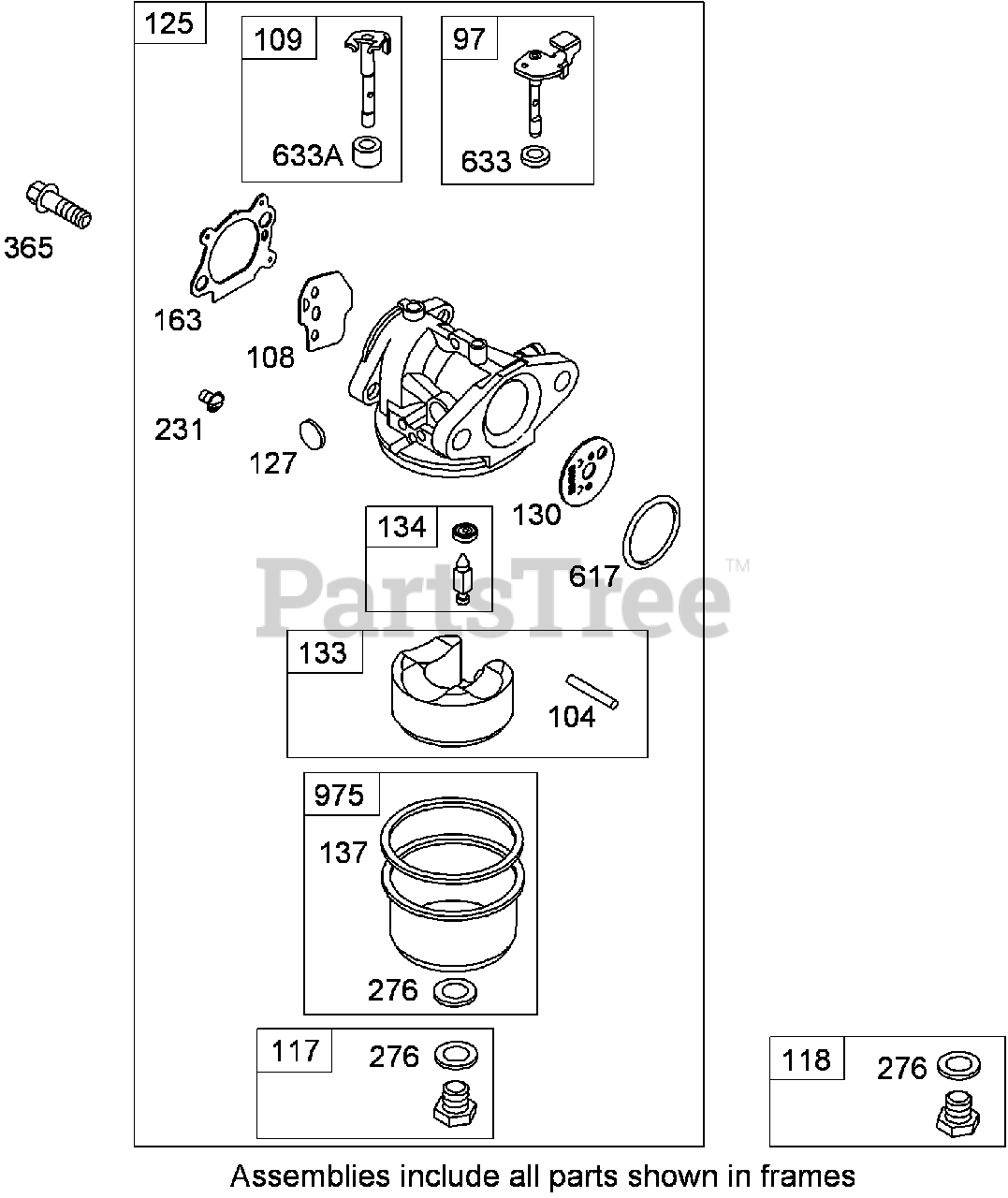

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 126T05-0247-B1 Parts Diagram

  • Title

97

Lawn-Boy 696565

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104

Lawn-Boy 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

108

Lawn-Boy 790844

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

109

Lawn-Boy 790843

Shaft-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

117

Lawn-Boy 691428

Jet-Main (Standard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

118

Lawn-Boy 498977

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

125

Lawn-Boy 794304

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Lawn-Boy 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

130

Lawn-Boy 696564

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

133

Lawn-Boy 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

134

Lawn-Boy 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Lawn-Boy 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

231

Lawn-Boy 691636

Screw (Choke Valve)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276

Lawn-Boy 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

365

Lawn-Boy 692524

Screw (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Lawn-Boy 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633

Lawn-Boy 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633A

Lawn-Boy 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

975

Lawn-Boy 493640

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
