10666 - Lawn-Boy Insight Walk-Behind Mower (SN: 280000001 - 280999999) (2008) BLADE AND ENGINE ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

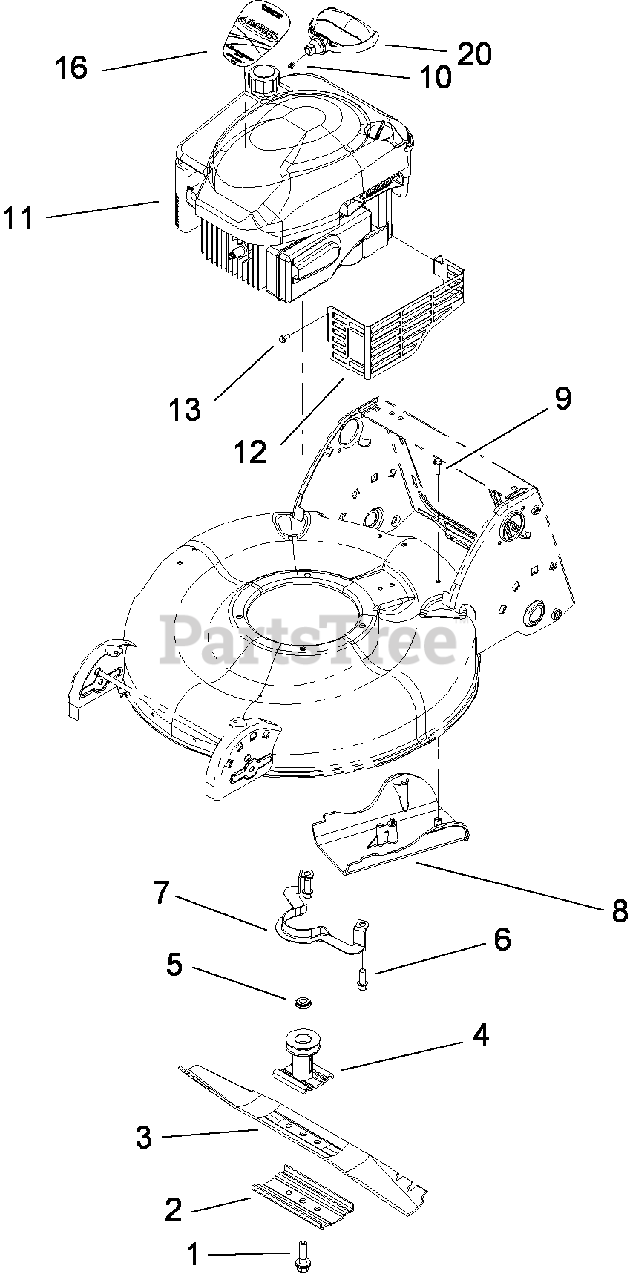

BLADE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 108-0954-03

BLADE-21 INCH
(Superseded to 133-8182-03)

$28.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 106-3987

BLADE DRIVER ASM

$35.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 106-3999

Spacer-Driver

$3.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 105-3030-03

Guide-Belt

$15.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 110-1832

COVER-BELT

$17.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

11

ENGINE-BRIGGS AND STRATTON, 126T05-0182-B1

Note: Not serviced separately Obtain from your local Briggs & Stratton dealer

$

$

Not available

12

Lawn-Boy 104-7577-03

SHIELD-MUFFLER

$28.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 19

0

16

Lawn-Boy 114-2830

DECAL-ENGINE

$

$

Not available

20

Lawn-Boy 110-1778

HANDLE-RECOIL

$33.99

$

In Stock, only 3 left!

0
