10666 - Lawn-Boy Insight Walk-Behind Mower (SN: 280000001 - 280999999) (2008) LOWER HANDLE ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

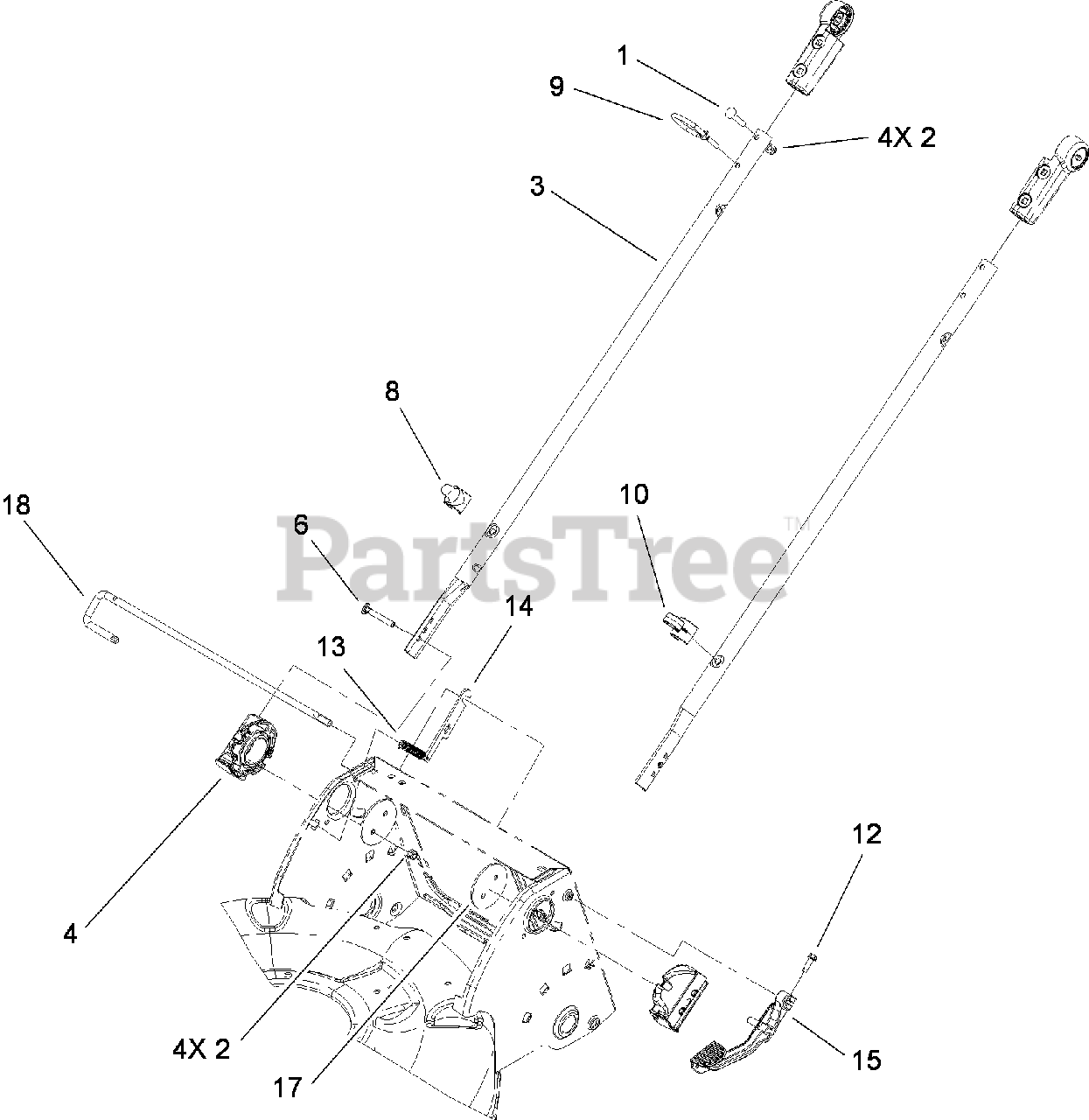

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

2

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 18

0

3

Lawn-Boy 107-3887-03

TUBE-LOWER

$34.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 114-2791

MOUNT-HANDLE, LOWER
(Superseded to 119-3847-03)

$18.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 95-4453

SCREW

$3.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 108-0994

GUIDE-ROPE, LOWER
(Superseded to 117-4141)

$14.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 107-3908

GUIDE-ROPE, UPPER

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 112-1542

SPRING-EXTENSION

$2.99

$

In Stock, Qty 6

0

14

Lawn-Boy 112-1539

PLATE-RELEASE ROD

$7.49

$

In Stock, Qty 10

0

15

Lawn-Boy 110-1823-03

LEVER-RELEASE

$45.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 107-3944-03

PLATE

$6.49

$

In Stock, only 3 left!

0

18

Lawn-Boy 112-8755

ROD-HANDLE RELEASE

$27.99

$

In Stock, only 2 left!

0
