10672 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 250000001 - 250999999) (2005) FRONT END AND TUNNEL ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

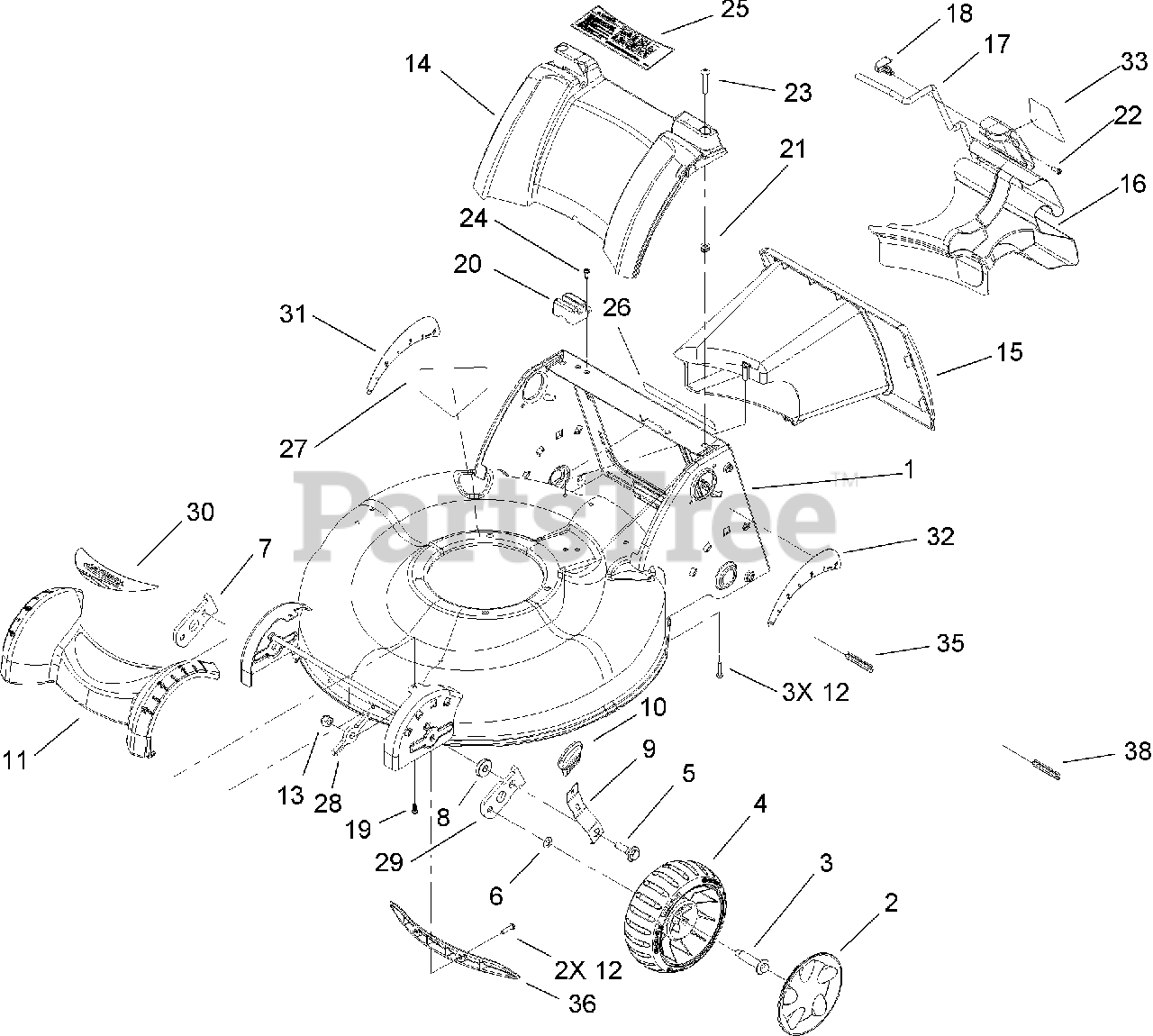

FRONT END AND TUNNEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 107-3883-02

HOUSING ASM
(Superseded to 114-2827)

$239.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 107-3886

COVER-WHEEL, 7IN
(Superseded to 117-5964)

$22.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 107-3891

7IN WHEEL ASM
(Superseded to 117-5964)

$22.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 9

0

6

Lawn-Boy 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 92-4890

WASHER

$8.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 107-3878

ARM-SPRING

$11.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

11

Lawn-Boy 107-3926

COVER-FRONT

$40.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-9350

COVER-REAR

$

$

Not available

15

Lawn-Boy 107-3905

TUNNEL

$52.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 107-3907

PLUG-CHUTE

$27.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 108-1038

LATCH-PLUG

$27.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 108-0956

RETAINER-LATCH

$2.49

$

In Stock, only 1 left!

0

19

Lawn-Boy 108-7475

SCREW-PLASTITE

$4.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 108-0966

MODULE-SWITCH

$63.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

24

Lawn-Boy 105-6849

SCREW-THREAD FORMING

$1.49

$

In Stock, Qty 7

0

25

Lawn-Boy 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 107-3889

DECAL-SAFETY
(Superseded to 114-2820)

$6.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 18

0

28

Lawn-Boy 108-1048

WASHER-SUPPORT, FRONT

$

$

Not available

29

Lawn-Boy 108-1044

ARM-PIVOT, LH

$9.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 108-7453

DECAL

$4.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 108-7450

DECAL-HOC, RH

$8.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 108-7451

DECAL-HOC, LH

$8.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 108-7461

DECAL

$4.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 108-7504

STRIP-EDGE

$5.49

$

In Stock, only 1 left!

0

36

Lawn-Boy 108-7502

INSERT-HOUSING

$11.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 108-9380

STRIP-EDGE

$5.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 110-1751

MULCH PLUG ASM

Note: Not illustrated

$53.99

$

In Stock, only 1 left!

0
