10684 C - Lawn-Boy Insight Walk-Behind Mower (SN: 250000001 - 250999999) (2005) REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

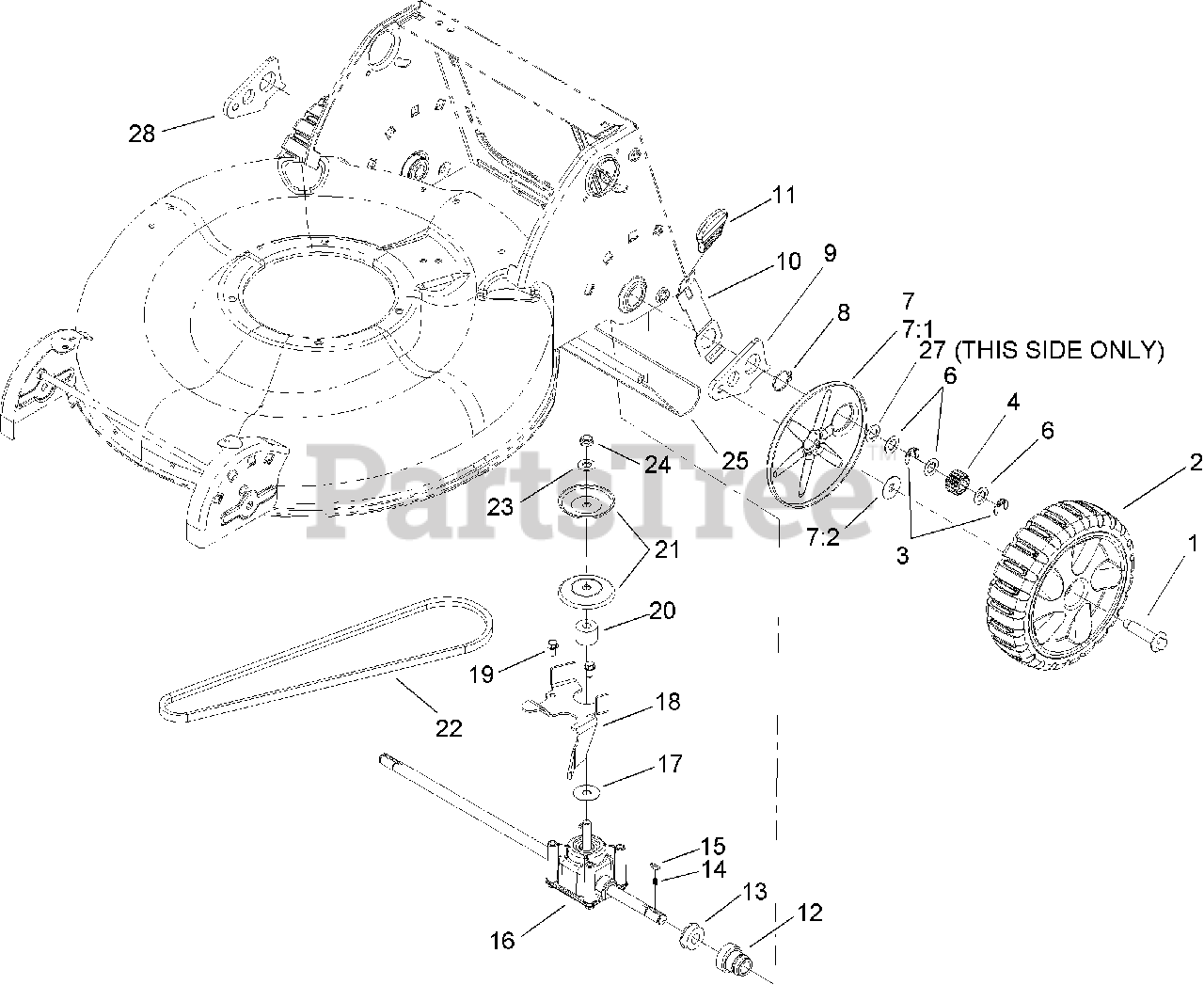

REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 107-3906

REAR WHEEL ASM
(Superseded to 117-4104)

$45.99

$

In Stock, Qty 6

0

3

Lawn-Boy 65-2720

KLIPRING-LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 105-3040

Gear-Pinion, 15t

$5.49

$

In Stock, Qty 7

0

6

Lawn-Boy 105-6840

Washer-Thrust

$2.49

$

In Stock, Qty 8

0

7

WHEEL COVER ASM

Note: Not serviced separately

$

$

Not available

7:1

Lawn-Boy 107-1919

COVER-WHEEL
(Superseded to 110-1793)

$11.99

$

In Stock, only 2 left!

0

7:2

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 10

0

8

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 10

0

9

Lawn-Boy 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 107-3880

ARM-SPRING, REAR

$14.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

12

Lawn-Boy 104-8698

RETAINER-BEARING, HOC

$11.99

$

In Stock, Qty 10

0

13

Lawn-Boy 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 18

0

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 107-3860

TRANSMISSION ASM

$183.99

$

In Stock, Qty 8

0

17

Lawn-Boy 105-6814

Washer-Shield

$1.49

$

In Stock, Qty 11

0

18

Lawn-Boy 107-3921-03

BRACKET-TRANSMISSION
(Superseded to 112-8762-03)

$

$

Not available

19

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

$10.99

$

In Stock, Qty 17

0

21

Lawn-Boy 107-3862

PULLEY-HALF

$14.99

$

In Stock, only 3 left!

0

22

$23.99

$

In Stock, Qty 16

0

23

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 3296-5

NUT-LOCK

$3.49

$

In Stock, Qty 8

0

25

Lawn-Boy 107-3904

SHIELD-TRAILING
(Superseded to 120-7010)

$41.99

$

In Stock, only 1 left!

0

27

$7.99

$

In Stock, Qty 8

0

28

Lawn-Boy 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 1 left!

0
