10684 C - Lawn-Boy Insight Walk-Behind Mower (SN: 260000001 - 260999999) (2006) UPPER HANDLE ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

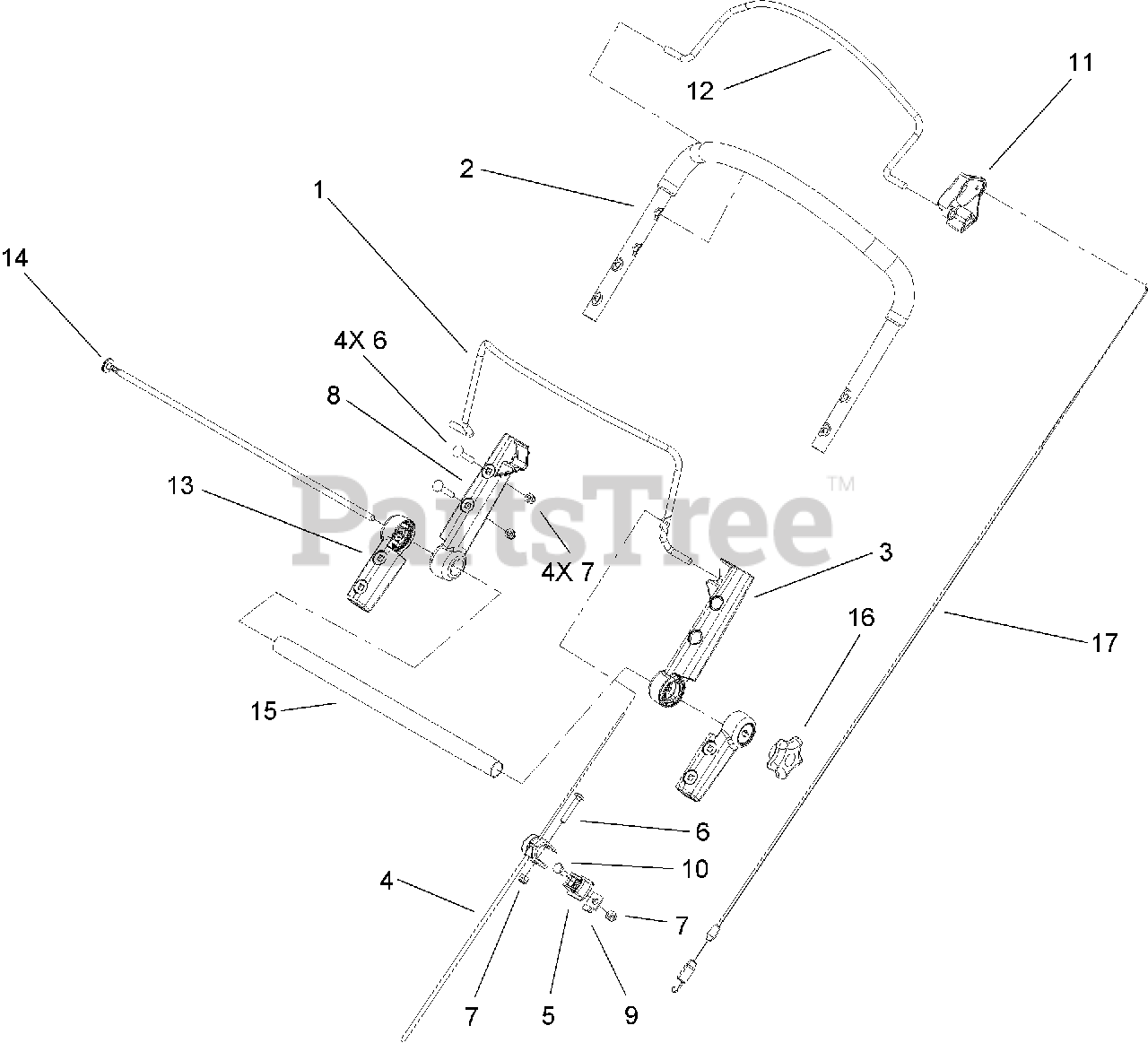

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 108-1035-03

BAIL-BRAKE

$

$

Not available

2

Lawn-Boy 110-1752

HANDLE ASM

$

$

Not available

3

Lawn-Boy 108-1030

MOUNT-HANDLE, LH

$

$

Not available

4

Lawn-Boy 107-3910

CABLE-BRAKE

$34.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 108-1040

SUPPORT-MOUNT, CABLE

$6.49

$

In Stock, Qty 6

0

6

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

7

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 108-1031

MOUNT-HANDLE, RH

$

$

Not available

9

Lawn-Boy 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 108-1028

STOP-BAIL

$4.49

$

In Stock, Qty 16

0

12

Lawn-Boy 108-1027-03

BAIL-TRACTION

$25.99

$

In Stock, only 4 left!

0

13

Lawn-Boy 107-3865

MOUNT-HANDLE, LOWER

$12.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 107-3871

ROD-THREADED

$18.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 107-3867-03

TUBE-CROSS

$24.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 107-3937

KNOB

$2.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 107-3917

CABLE-TRACTION

$22.99

$

In Stock, only 4 left!

0
