10686 C - Lawn-Boy Insight Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CARBURETOR ASSEMBLY NO. 640350 TECUMSEH LV195EA-362045C Parts Diagram

Insight Walk-Behind Mower

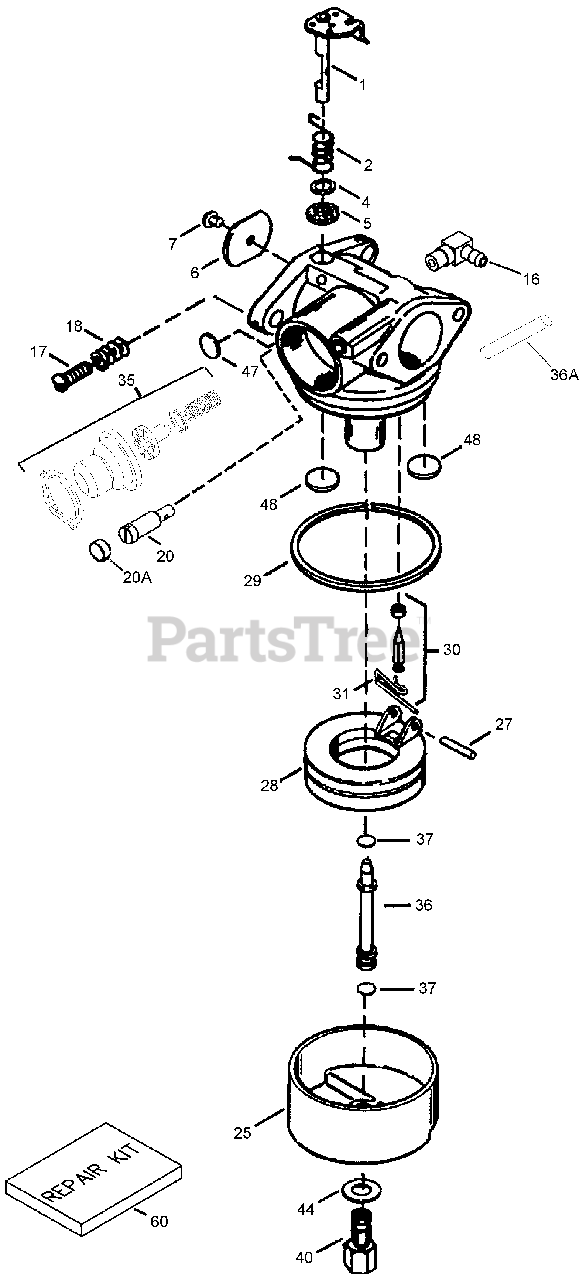

CARBURETOR ASSEMBLY NO. 640350 TECUMSEH LV195EA-362045C Parts Diagram

  • Title

Lawn-Boy 640350

Carburetor ASM (Includes 184 of Engine Assembly)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

1

Lawn-Boy 631615

Throttle Shaft and Lever ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 631767

Spring-Return, Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

4

Lawn-Boy 631184

Washer-Seal, Dust

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

5

Lawn-Boy 631183

Seal-Dust, Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 640070

Shutter-Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 650506

Screw-Shutter

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 631807

Fitting-Fuel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 651025

Screw-Throttle/Idle Speed

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 630766

Spring-Tension

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

20

Lawn-Boy 640016

Screw-Restrictor, Idle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

20A

Lawn-Boy 640200

Cap-Screw, Idle Restrictor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25

Lawn-Boy 631867

Bowl-Float

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

27

Lawn-Boy 631024

Shaft-Float

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

28

Lawn-Boy 632802

Float (Plastic)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

29

Lawn-Boy 631028

O Ring-Bowl, Float

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 631021A

Inlet Needle, Seat, and Clip ASM (Includes 31)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

31

Lawn-Boy 631022

Clip-Spring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

35

Lawn-Boy 640351

Primer Bulb/Valve Repair Kit

Note: Obtain from your local Tecumseh dealer

$

$

Not available

36

Lawn-Boy 640080

Tube-Nozzle, Main

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

36A

Lawn-Boy 632766

Tube-Carburetor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

37

Lawn-Boy 632547

O Ring-Tube, Main Nozzle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 640030

Nut-Bowl, High Speed

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

44

Lawn-Boy 27110A

Washer-Bowl

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

47

Lawn-Boy 630748

Welch Plug-Idle Mixture Well

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 631027

Welch Plug-Atmospheric Vent

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

60

Lawn-Boy 632760B

Repair kit

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
