10696 C - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CHOKE BASE ASSEMBLY HONDA GCV160A RTL1 Parts Diagram

Insight Gold Walk-Behind Mower

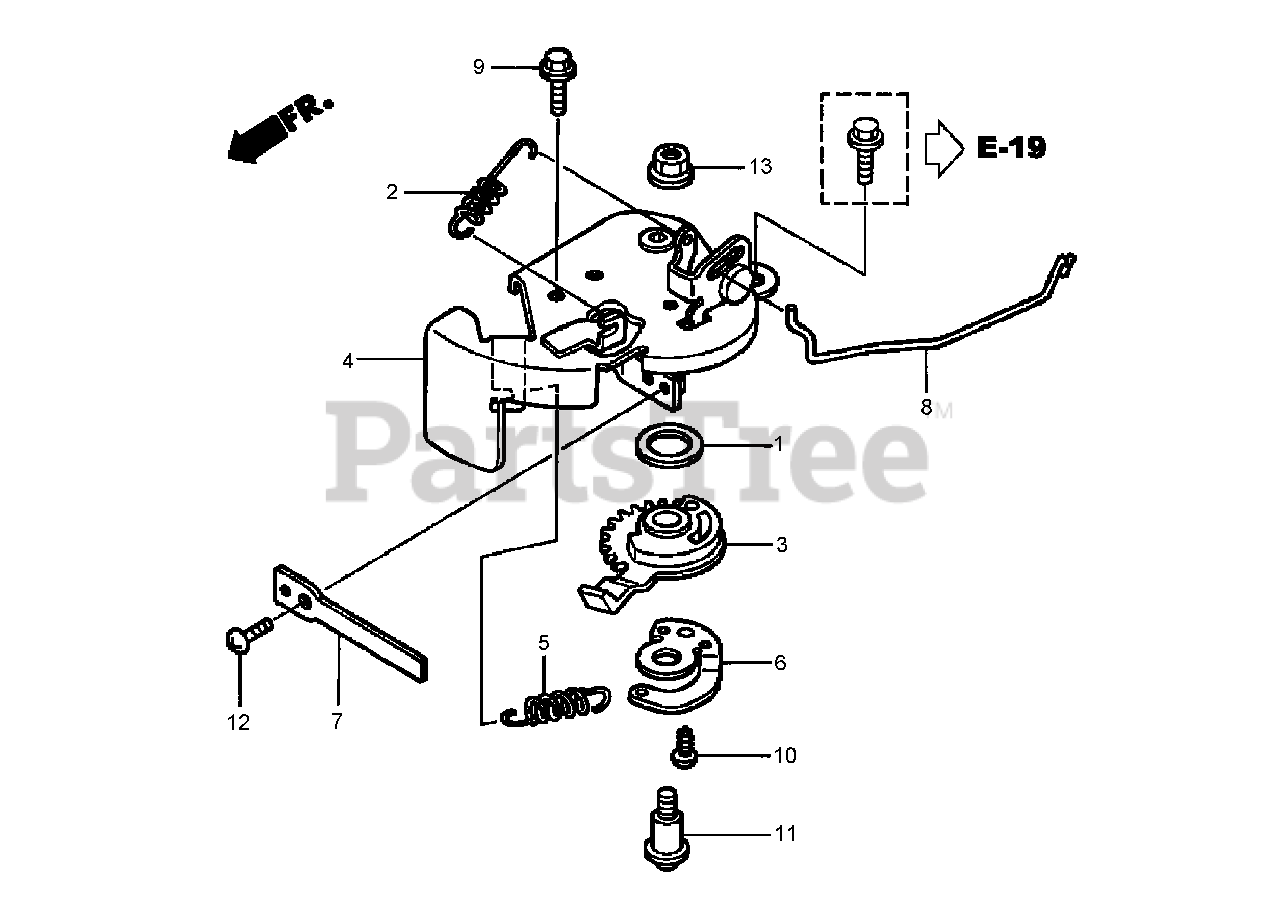

CHOKE BASE ASSEMBLY HONDA GCV160A RTL1 Parts Diagram

  • Title
1

Lawn-Boy 16251-Z0L-800

SEAL-LEVER, CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 16592-ZJ1-000

SPRING-RETURN, CABLE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 16612-Z0L-800

LEVER-CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 16613-Z0L-800

BASE-CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 16614-Z0L-800

SPRING-LEVER, CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 16616-Z0L-800

HOOK-SPRING, CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 16619-Z0L-800

PLATE-CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 16632-Z0L-800

ROD-STOP

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 90029-888-000

BOLT-FLANGE (6X16)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 90102-SP1-003

SCREW-TAPPING (4X8) (PO)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90141-KT8-000

SCREW-PAN (5X19)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 93500-04008-0H

SCREW-PAN (4X8)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 94050-05000

NUT-FLANGE (5MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
