107-1612 - Toro Recycler Kit for 72" Turbo Force Side-Discharge Mower 72IN RECYCLER KIT ASSEMBLY Parts Diagram

Recycler Kit for 72" Turbo Force Side-Discharge Mower

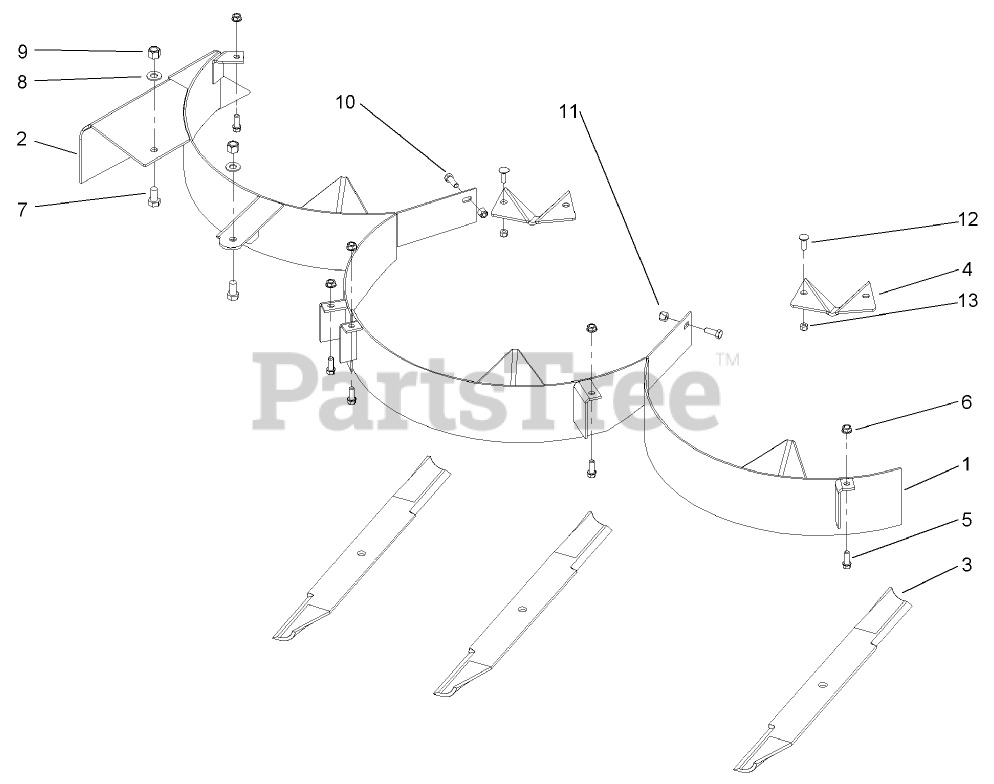

72IN RECYCLER KIT ASSEMBLY Parts Diagram

  • Title

1

Toro 105-7736-01

BAFFLE ASM LH

$457.99

$

Usually ships in 3-6 days

0

2

Toro 105-7740-01

BAFFLE ASM RH

$455.99

$

Usually ships in 3-6 days

0

3

Toro 105-7778

Blade
(Superseded to 105-7778-03)

$42.99

$

Usually ships in 3-6 days

0

4

Toro 107-1616-01

Kicker

$56.99

$

Usually ships in 3-6 days

0

5

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
