107-1630 - Toro Striping Kit for 500 Series Z Master STRIPING KIT ASSEMBLY Parts Diagram

Striping Kit for 500 Series Z Master

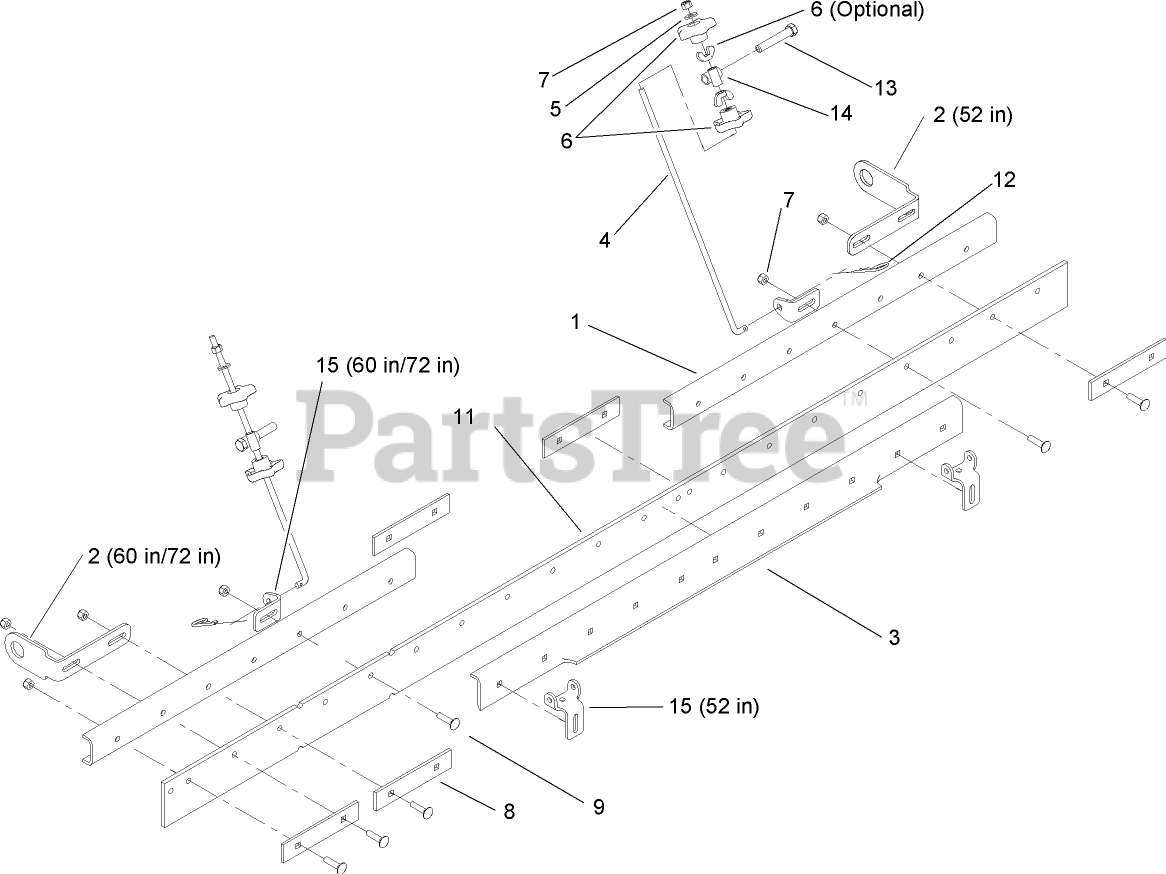

STRIPING KIT ASSEMBLY Parts Diagram

  • Title

1

Toro 105-7753-03

BAR-STRIPING

$75.99

$

Usually ships in 3-6 days

0

2

Toro 105-7761-03

MOUNT-PIVOT, 52IN

$32.99

$

Usually ships in 3-6 days

0

2

Toro 107-3168-03

MOUNT-PIVOT, 60IN/72IN

$32.99

$

Usually ships in 3-6 days

0

3

Toro 107-3131-03

BAR-SUPPORT

$95.99

$

Usually ships in 3-6 days

0

4

Toro 107-3174

ROD-LIFT

$51.99

$

Usually ships in 3-6 days

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

6

Toro 32103-29

NUT-WING

$5.99

$

In Stock, Qty 11

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 107-3167-03

SUPPORT-STRIPER

$27.99

$

Usually ships in 3-6 days

0

9

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

11

Toro 107-3132

WIPER-STRIPING

$123.99

$

Usually ships in 3-6 days

0

12

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

13

Toro 324-10

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 107-3173

MOUNT-ADJUSTER

$135.99

$

Usually ships in 3-6 days

0

15

Toro 107-3179-03

BRACKET-ADJUSTER, 60IN/72IN

$23.99

$

Usually ships in 3-6 days

0

15

Toro 107-8544-03

BRACKET-ADJUSTER, 52IN

$31.99

$

Usually ships in 3-6 days

0
