107.249060 (1695063) - Craftsman Grass Catcher (2004) Chute Group (987359) Parts Diagram

Grass Catcher

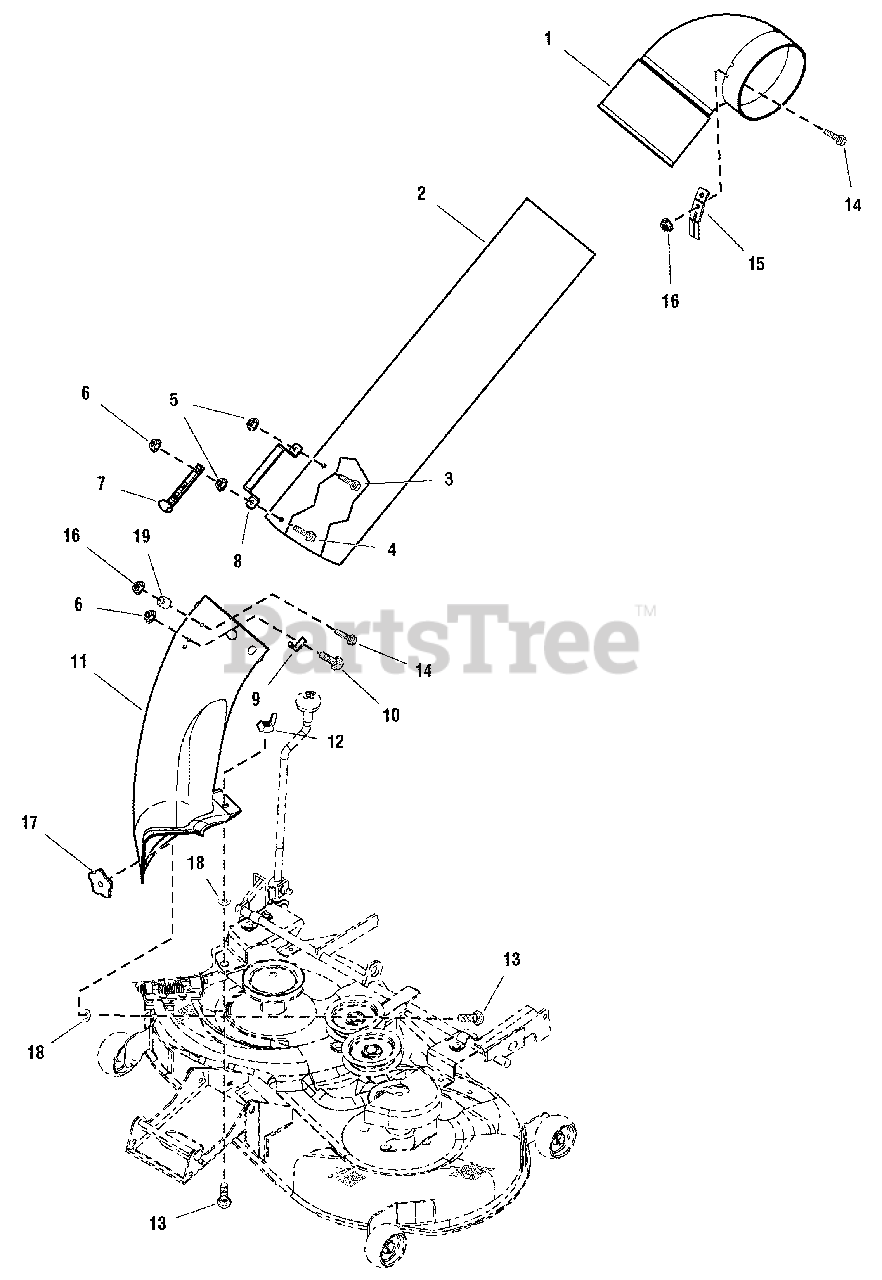

Chute Group (987359) Parts Diagram

  • Title

1

Murray 1732359SM

ELBOW, Vac Collector 7 DIA Plastic Black

$139.99

$

Usually ships in 2-12 days

0

2

Murray 1732809SM

TUBE, Clear Poly Twin Catcher 42"

$58.99

$

Usually ships in 2-12 days

0

3

Murray 004X24MA

SCREW, Machine 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

4

Murray 004X71MA

SCREW, Machine 1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

5

Murray 2828372SM

NUT, Hex KEPS 1/4-20 Black
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

6

Murray 1930642SM

NUT, Hex Flange Toplock Small, 1/4-20 Black
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

7

Murray 2171600SM

STRAP, Hood, Rubber Black

$7.99

$

In Stock, Qty 20+

0

8

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

9

Murray 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

10

Murray 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8 G5 Black

$3.99

$

In Stock, only 2 left!

0

11

Murray 1732060SM

TUBE, Boot Poly Black
(Superseded to 1734367SM)

$222.99

$

Usually ships in 2-12 days

0

12

Murray 014X86MA

NUT, 5/16-18 Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

13

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5 Black
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

14

Murray 1960086SM

SCREW, Truss Head Torx Drive, 5/16-18 x 7/8 Black

$4.99

$

In Stock, Qty 5

0

15

Murray 1732864ASM

STRAP, Bagger 42" Mower Black

$8.99

$

Usually ships in 2-12 days

0

16

Murray 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18NC3B Black
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

17

Murray 1733098SM

KNOB, Internal Thread 5/16-18 23/32 Long 5 LOBE Black

$9.99

$

In Stock, only 2 left!

0

18

Murray 1933988SM

NUT, Push PAL 5/16 DIA Thread 5/8 OD Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

19

Murray 1960236SM

SPACER, .344 ID x .499

$6.49

$

In Stock, Qty 13

0
