107.249070 (1694842) - Craftsman Grass Catcher (2004) Chute & Baffles Group (986500) Parts Diagram

Grass Catcher

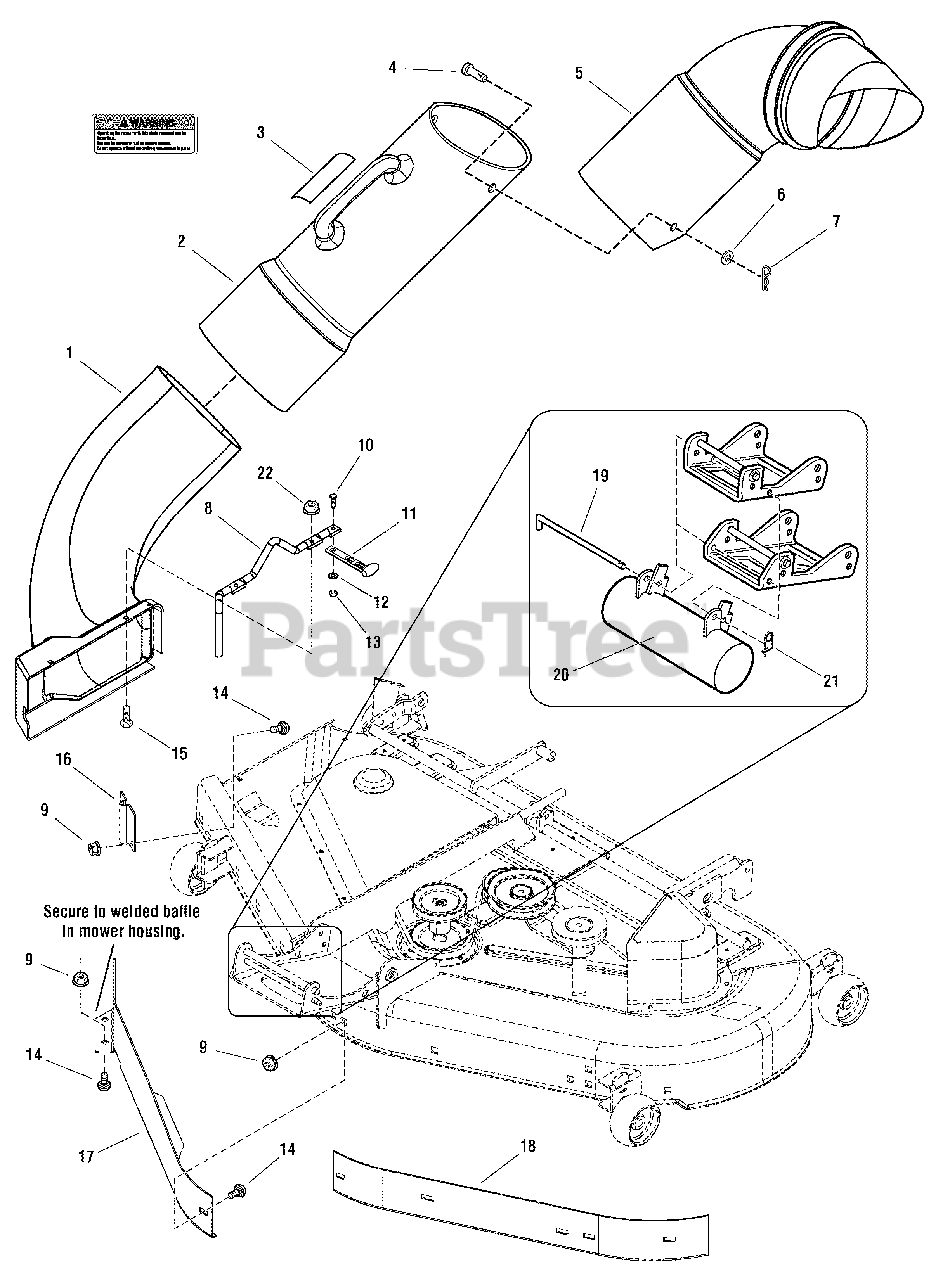

Chute & Baffles Group (986500) Parts Diagram

  • Title

1

Murray 1726359SM

ADAPTER, Lower Chute

$279.99

$

Usually ships in 2-12 days

0

2

Murray 1726360SM

CHUTE, Grass Catcher Middle

$117.99

$

Usually ships in 2-12 days

0

3

Murray 1732819SM

DECAL, Warning Operating Mower Without Chute

$18.99

$

Usually ships in 2-12 days

0

4

Murray 1672365SM

PIN, Round Head Drilled, 1/2 x 1

$33.99

$

Usually ships in 2-12 days

0

5

Murray 1726361SM

CHUTE, Grass Catcher Upper Elbow

$100.99

$

Usually ships in 2-12 days

0

6

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

7

Murray 1960074SM

CLIP, Hair Pin, Spring Wire
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Murray 1726577SM

ROD, Chute Mounting

$39.99

$

Usually ships in 2-12 days

0

9

Murray 1927557SM

NUT, Hex Flange Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

10

Murray 1960393SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

11

Murray 2171600SM

STRAP, Black Rubber, 4-13/16 Long

$7.99

$

In Stock, Qty 20+

0

12

Murray 1960096SM

WASHER, 3/16

$3.99

$

Usually ships in 2-12 days

0

13

Murray 1933896SM

NUT, Hex Lock with Nylon Insert, 10-24 NC3B
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

14

Murray 1921332SM

CARRIAGE BOLT, Hex Head, 5/16-18 x 5/8 G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

15

Murray 1923325SM

CAPSCREW, Heax Head, 5/16-18 x 7/8 G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

16

Murray 1726578ASM

PLATE, Chute Rod Mounting

$32.99

$

Usually ships in 2-12 days

0

17

Murray 1728130ASM

BAFFLE, Blowout RH, 44"

$82.99

$

Usually ships in 2-12 days

0

17

Murray 1726364ASM

BAFFLE, Blowout RH, 50"

$74.99

$

Usually ships in 2-12 days

0

18

Murray 1716879ASM

BAFFLE, Blowout LH, 44"

$115.99

$

Usually ships in 2-12 days

0

18

Murray 1716870ASM

BAFFLE, Blowout LH, 50"

$164.99

$

Usually ships in 2-12 days

0

19

Murray 1704792SM

ROD, Weight Retainer, 3/8 x 9-21/64

$20.99

$

Usually ships in 2-12 days

0

20

Murray 1656629ASM

WEIGHT ASSEMBLY, Front Counter

$239.99

$

Usually ships in 2-12 days

0

21

Murray 2176012SM

CLIP, Spring Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

22

Murray 1960686SM

NUT, ESNA Flange
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0
