107.24910 (1695637-01) - Craftsman Grass Catcher for 42" Mowers (2009) 2-Bin Bagger Group - 42 inch Parts Diagram

Grass Catcher for 42" Mowers

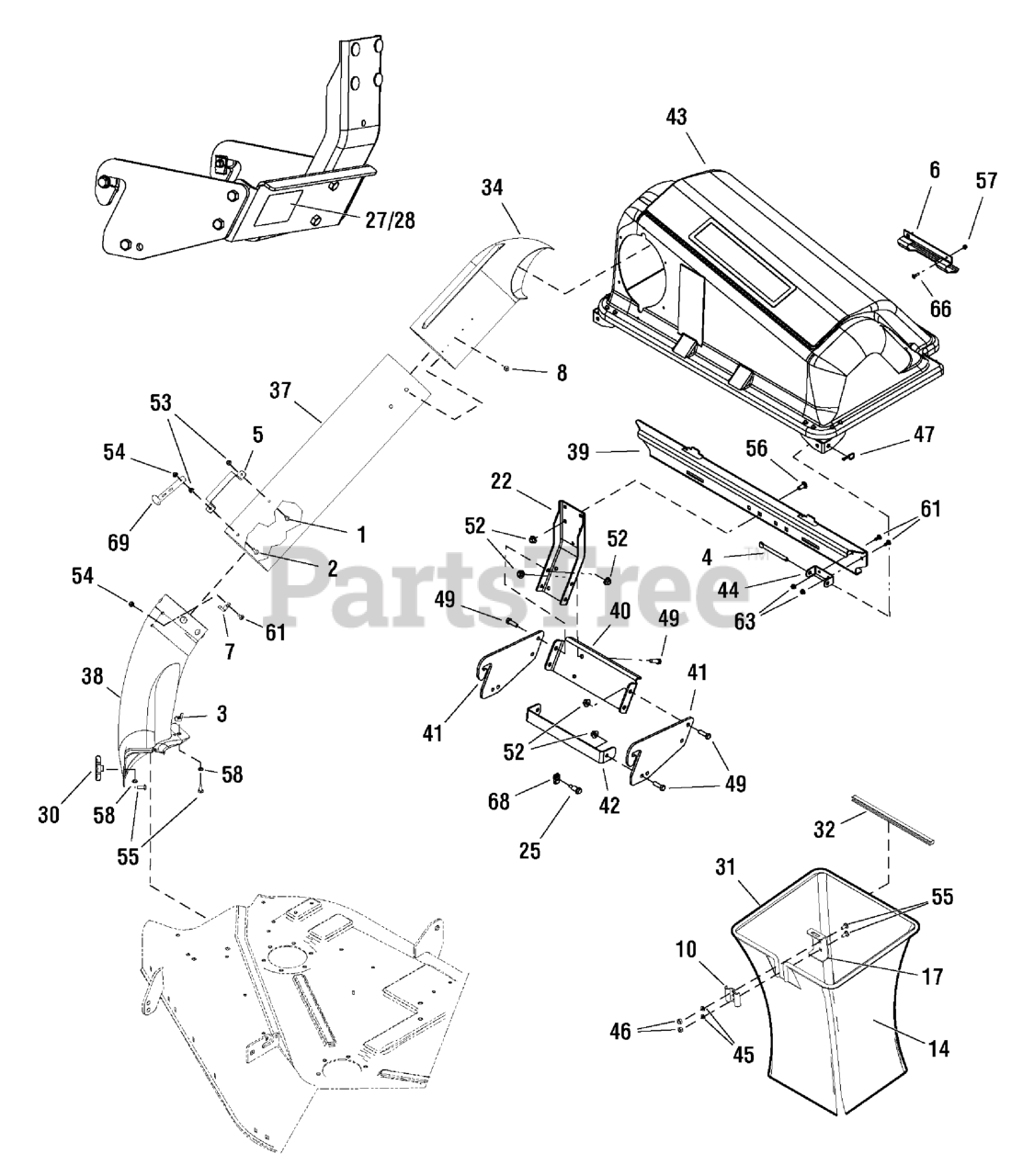

2-Bin Bagger Group - 42 inch Parts Diagram

  • Title

1

Murray 004X24MA

SCREW, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

2

Murray 004X71MA

SCREW, 1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

3

Murray 014X86MA

WINGNUT, 5/16-18
(Superseded to 703141)

$3.99

$

In Stock, only 2 left!

0

4

Murray 054407ZMA

PIN, Cover Hinge, 3/8 x 3-3/4

$14.99

$

In Stock, only 3 left!

0

5

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

6

Murray 054537MA

HANDLE, Plastic

$19.99

$

In Stock, only 1 left!

0

7

Murray 054563MA

PIN, Latch

$23.99

$

In Stock, only 1 left!

0

8

Murray 26X239MA

SCREW, 1/4 x 3/4

$4.49

$

Usually ships in 2-12 days

0

10

Murray 1672023ASM

CLAMP

$11.99

$

Usually ships in 2-12 days

0

14

Murray 1703764SM

BAG, Grass

$97.99

$

In Stock, only 3 left!

0

17

Murray 1703807ASM

HANGER, Grass Bag Hoop,Twin

$21.99

$

Usually ships in 2-12 days

0

22

Murray 1707526ASM

SUPPORT, Upright, Twin

$87.99

$

Usually ships in 2-12 days

0

25

Murray 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

27

* MYLAR OVERLAY

$

$

Not available

28

* STICKER, Serial Number

$

$

Not available

30

Murray 1733098SM

KNOB, 5 Lobe, 5/16-18 x 3/4

$10.99

$

In Stock, only 3 left!

0

31

Murray 1733491SM

HOOP, Twin Catcher

$155.99

$

In Stock, only 2 left!

0

32

Murray 1733709SM

EDGING, 12 Long PVC

$17.99

$

Usually ships in 2-12 days

0

34

Murray 1733885SM

ELBOW, Upper Tube

$109.99

$

Usually ships in 2-12 days

0

37

Murray 1734299SM

Tube, Clear

$148.99

$

In Stock, only 2 left!

0

38

Murray 1734367SM

Tube, Boot, Black

$235.99

$

Usually ships in 2-12 days

0

39

Murray 1736026YP

CROSS SUPPORT
(Superseded to 1759713YP)

$169.99

$

Usually ships in 2-12 days

0

40

Murray 1736028AYP

BRACKET, Upright

$125.99

$

Usually ships in 2-12 days

0

41

Murray 1736029AYP

PLATE, Bagger Mount

$78.99

$

Usually ships in 2-12 days

0

42

Murray 1736030AYP

BRACKET, Hitch Support

$73.99

$

Usually ships in 2-12 days

0

43

Murray 1736656YP

COVER & SCREEN ASSEMBLY

$

$

Not available

44

Murray 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$35.99

$

Usually ships in 2-12 days

0

45

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

46

Murray 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

47

Murray 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 7

0

49

Murray 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G5
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

52

Murray 1928352SM

NUT, Hex Flange, 3/8-16 Whiz Lock
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

53

Murray 1928372SM

NUT, Hex, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

54

Murray 1930642SM

NUT, Hex Flange, 1/4-20 Top Lock, Small
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

55

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

56

Murray 1931350SM

BOLT, Carriage, 3/8- 16 x 1, G5
(Superseded to 703815)

$4.49

$

In Stock, Qty 6

0

57

Murray 1933896SM

NUT, Hex, Ny-Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

58

Murray 1933988SM

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

61

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

63

Murray 1960294SM

NUT, Hex Flange, 1/4-20 Whiz Lock, Small
(Superseded to 703233)

$4.49

$

In Stock, Qty 11

0

66

Murray 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 0.75

$3.99

$

In Stock, only 4 left!

0

68

Murray 1960717SM

NUT, Speed, 5/16-18
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

69

Murray 2171600SM

STRAP, Hood, Rubber

$7.99

$

In Stock, Qty 20+

0
