107.24913 (1695647) - Craftsman Grass Catcher for 52" Mowers (2009) 2-Bin Bagger Group - 52 inch Parts Diagram

Grass Catcher for 52" Mowers

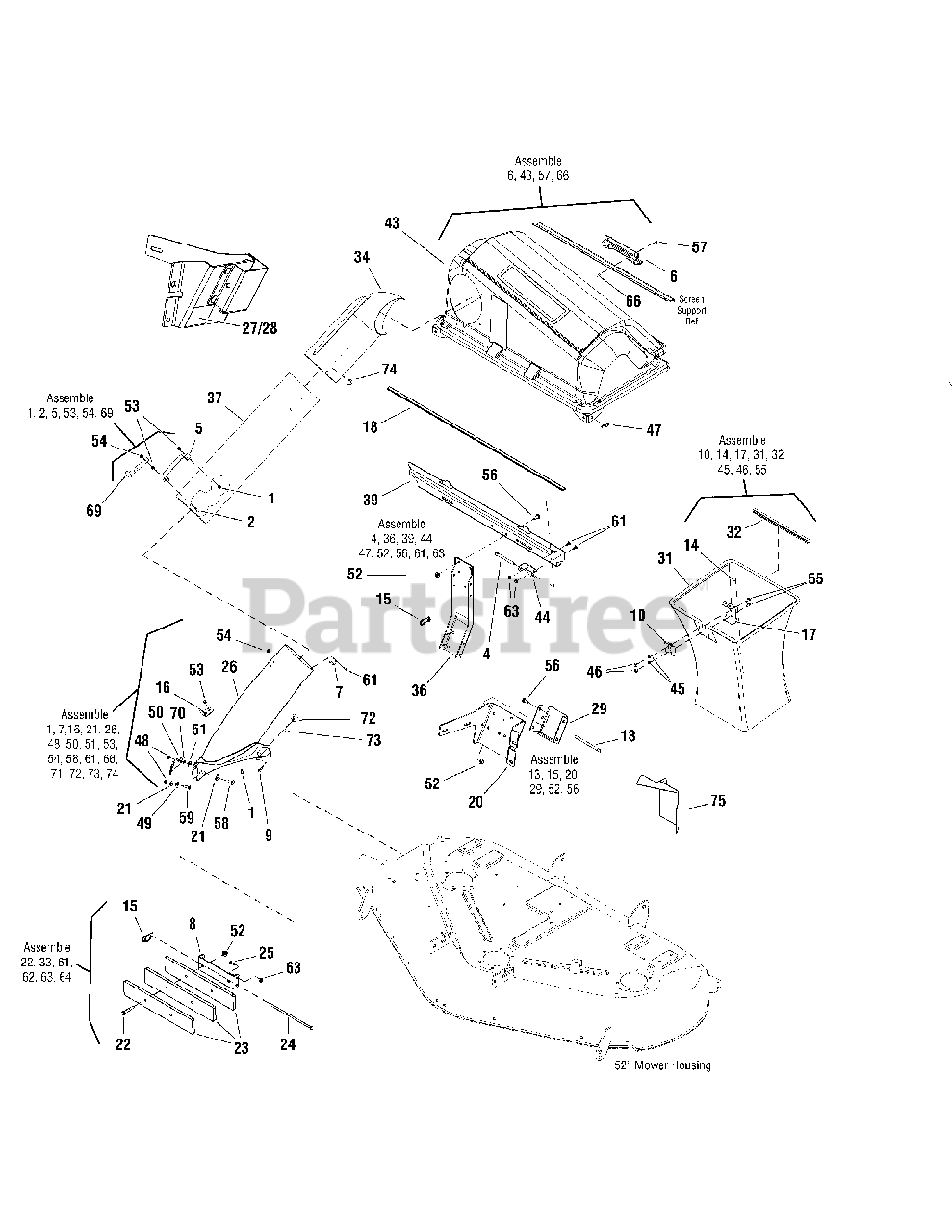

2-Bin Bagger Group - 52 inch Parts Diagram

  • Title

1

Murray 004X24MA

SCREW, Truss-Head, 1/4-20 x 1/2"

$4.49

$

Usually ships in 2-12 days

0

2

Murray 004X71MA

SCREW, Truss-Head, 1/4-20 x 1"

$4.99

$

In Stock, only 4 left!

0

4

Murray 054407ZMA

PIN, Cover Hinge

$14.99

$

In Stock, only 3 left!

0

5

Murray 054416ZMA

HANDLE CONNECT, Tube

$20.99

$

In Stock, only 3 left!

0

6

Murray 054537MA

HNADLE, Plastic

$19.99

$

In Stock, only 2 left!

0

7

Murray 054563MA

PIN, Latch

$23.99

$

In Stock, only 1 left!

0

8

Murray 1734190ASM

BRACKET, Front Weight Mount

$21.99

$

Usually ships in 2-12 days

0

9

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4"
(Superseded to 703101)

$4.49

$

In Stock, only 4 left!

0

10

Murray 1672023ASM

CLAMP, 1/2" Diameter Rod

$11.99

$

Usually ships in 2-12 days

0

13

Murray 1734229SM

PIN, Hinge

$17.99

$

Usually ships in 2-12 days

0

14

Murray 1703764SM

BAG, Grass 15.9 X 16.5

$97.99

$

In Stock, only 3 left!

0

15

Murray 2176012SM

RETAINER, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

16

Murray 1737764AYP

UPSTOP, Deflector

$35.99

$

Usually ships in 2-12 days

0

17

Murray 1703807ASM

HANGER, Grass Bag

$21.99

$

Usually ships in 2-12 days

0

18

Murray 1738033YP

TRIM, 31-1/2"

$

$

Currently unavailable

20

Murray 1737844AYP

HITCH, Bagger

$76.99

$

Usually ships in 2-12 days

0

21

Murray 1960044SM

WASHER, 5/16, 1-1/4 OD

$4.49

$

In Stock, Qty 16

0

22

Murray 1922130SM

CAPSCREW, Hex-Head, 3/8-16 x 2-1/4"
(Superseded to 703872)

$4.99

$

In Stock, Qty 15

0

23

Murray 1734191ASM

WEIGHT, Counter

$64.99

$

Usually ships in 2-12 days

0

24

Murray 7200008SM

ROD, Seat Hinge

$6.49

$

Usually ships in 2-12 days

0

25

Murray 310088MA

BOLT, Shoulder, .250X.312 .25

$5.49

$

Usually ships in 2-12 days

0

26

Murray 1734776YP

BOOT, Bagging, 46/52 Mower

$284.99

$

Usually ships in 2-12 days

0

27

-----

MYLAR OVERLAY, ID Sticker

$

$

Not available

28

-----

ID STICKER

$

$

Not available

29

Murray 1737838AYP

BRACKET, Upright Mount

$46.99

$

Usually ships in 2-12 days

0

31

Murray 1733491SM

HOOP, Twin Catcher, 1/2" Diam.

$155.99

$

In Stock, only 2 left!

0

32

Murray 1733709SM

EDGING, 12"

$17.99

$

Usually ships in 2-12 days

0

34

Murray 1733885SM

ELBOW, Upper TubeT

$109.99

$

Usually ships in 2-12 days

0

36

Murray 1734223YP

SUPPORT, Upright
(Superseded to 1734223ASM)

$118.99

$

Usually ships in 2-12 days

0

37

Murray 1734299SM

TUBE, Clear

$148.99

$

In Stock, only 1 left!

0

39

Murray 1736026YP

CROSS SUPPORT, Twin
(Superseded to 1759713YP)

$169.99

$

Usually ships in 2-12 days

0

43

Murray 1736656YP

COVER ASSEMBLY, Twin Bagger

$

$

Not available

44

Murray 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$35.99

$

Usually ships in 2-12 days

0

45

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

46

Murray 1917372SM

NUT, Hex, 5/16 x 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

47

Murray 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 6

0

48

Murray 1960686SM

NUT, Hex-Flange, 5/16
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

49

Murray 1723244SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

50

Murray 1737765AYP

LATCH

$34.99

$

Usually ships in 2-12 days

0

51

Murray 1708511SM

SPACER

$7.99

$

In Stock, only 1 left!

0

52

Murray 1928352SM

NUT, Hex-Flange, Whiz, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

53

Murray 1928372SM

NUT, Hex-Flange, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

54

Murray 1930642SM

NUT, Hex-Flange, Top-Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

55

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4"
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

56

Murray 1931349SM

BOLT, Carriage, 3/8-16 x 7/8"

$

$

Not available

57

Murray 1933896SM

NUT, Hex-Lock, Nylon-Insert, 10-24, 1/4-20
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

58

Murray 1921333SM

BOLT, Carriage, 5/16-18 x 1, G5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

59

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, only 2 left!

0

61

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8"

$3.99

$

Usually ships in 2-12 days

0

63

Murray 1960294SM

NUT, Hex-Flange, Whiz, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

66

Murray 1960404SM

SCREW, Truss-Head, Phillips, 10-24 x 3/4"

$3.99

$

In Stock, only 4 left!

0

69

Murray 2171600SM

STRAP, HOOD, Black Rubber

$7.99

$

In Stock, Qty 20+

0

70

Murray 7026257MA

WASHER, Wave

$4.49

$

In Stock, Qty 8

0

72

Murray 1738295YP

KNOB, 5-Point, 1/4-20

$7.99

$

In Stock, only 1 left!

0

73

Murray 7091627YP

WASHER, Flat, 9/32 X 1

$4.99

$

In Stock, Qty 11

0

74

Murray 722855MA

SCREW, 1/4 X 3/4

$

$

Currently unavailable

75

Murray 7301049MA

SHIELD, Muffler

$

$

Currently unavailable
