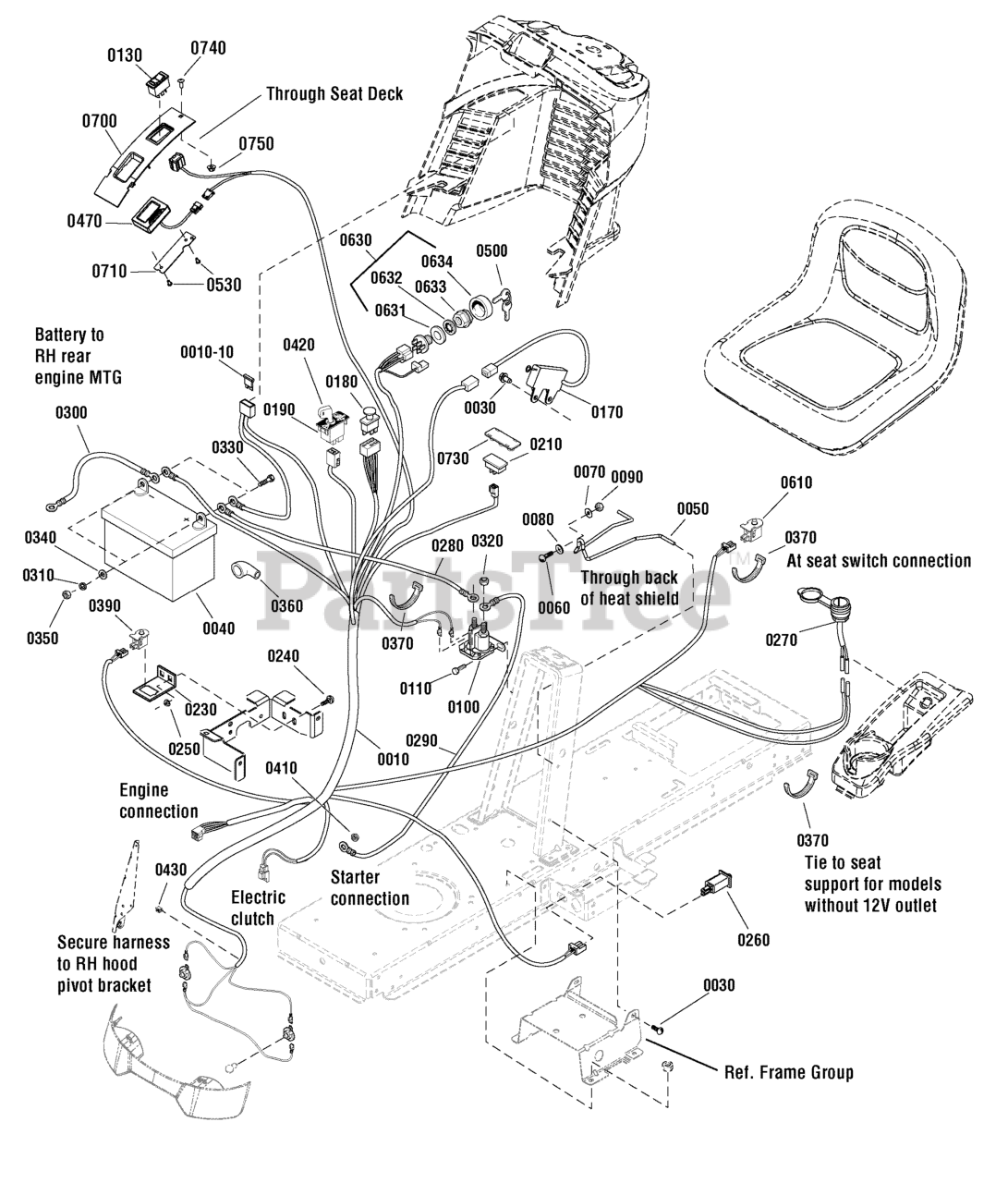

107.250040 (2691085-00) - Craftsman CTX9000 Series 42" Lawn Tractor, 20hp (2012) Electrical Group Parts Diagram

CTX9000 Series 42" Lawn Tractor, 20hp

Electrical Group Parts Diagram

  • Title

0010

Murray 1753847YP

HARNESS, Wiring

$190.99

$

Usually ships in 2-12 days

0

0010-10

Murray 1731957SM

FUSE, Wiring Harness

$8.49

$

Usually ships in 2-12 days

0

0030

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0040

BATTERY, 12V, 230CCA

$

$

Not available

0050

Murray 1730007SM

HOLD DOWN, Battery

$27.99

$

Usually ships in 2-12 days

0

0060

Murray 1931318SM

BOLT, Carriage, Short Neck, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 3 left!

0

0070

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

0080

Murray 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

0090

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, only 1 left!

0

0110

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0130

Murray 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

$47.99

$

In Stock, Qty 20+

0

0170

Murray 1738724YP

SENSOR, Electric Height of Cut

$64.99

$

Usually ships in 2-12 days

0

0180

Murray 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0190

Murray 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Murray 1716951SM

SWITCH, Headlight

$21.99

$

In Stock, only 3 left!

0

0230

Murray 1728026SM

SUPPORT, RMO Switch
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0240

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0250

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0260

Murray 7022886YP

SWITCH, Push Button (NO/NC)

$14.99

$

In Stock, Qty 20+

0

0270

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0280

Murray 1716549SM

CABLE-# 6 X 10.00LG (2) RING TERMINALS
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

0290

Murray 1721830SM

CABLE, #6 x 25 Long, Ring Terminals

$19.99

$

In Stock, only 1 left!

0

0300

Murray 1713163SM

CABLE, #6 x 26 Long, Ring Terminal

$24.99

$

Usually ships in 2-12 days

0

0310

Murray 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0320

Murray 2860750SM

NUT, Hex Lock, KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Murray 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0340

Murray 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

0350

Murray 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

0360

Murray 1677296SM

BOOT, Insulator

$6.49

$

In Stock, only 2 left!

0

0370

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0390

Murray 1732004SM

SWITCH, Push Button (NO)

$8.99

$

In Stock, Qty 8

0

0410

Murray 1960294SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0420

Murray 1726557SM

KEY, No Mow

$5.49

$

In Stock, Qty 20+

0

0430

Murray 2172434SM

CLIP, Wire

$4.99

$

In Stock, only 2 left!

0

0470

Murray 1738985YP

GAGE, Electric Height of Cut

$55.99

$

Usually ships in 2-12 days

0

0500

Murray 1737837YP

KEYS, Ignition

$21.99

$

Usually ships in 2-12 days

0

0530

Murray 1739329YP

SCREW, Washer Head, 5MM x 12MM Long

$4.49

$

Usually ships in 2-12 days

0

0610

Murray 1732005SM

SWITCH, Push Button, Seat Switch
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

0630

Murray 1737853YP

SWITCH ASSEMBLY, Ignition

$35.99

$

Usually ships in 2-12 days

0

0631

Murray 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

$47.99

$

In Stock, Qty 20+

0

0632

Murray 1729993SM

PLUG, Hour Meter

$4.49

$

Usually ships in 2-12 days

0

0633

Murray 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0634

Murray 1726556SM

SWITCH, Rev Mow
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0700

Murray 1753708YP

POD, Insert, R.H.

$28.99

$

Usually ships in 2-12 days

0

0710

Murray 1753757BMYP

BRACKET, Indicator Hold Down

$9.99

$

Usually ships in 2-12 days

0

0730

Murray 1722611SM

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0740

Murray 7091696YP

SCREW, Philips, Pan Head, Self Tapping

$3.49

$

Usually ships in 2-12 days

0

0750

Murray 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0
