107.250040 (2691085-00) - Craftsman CTX9000 Series 42" Lawn Tractor, 20hp (2012) Seat Deck & Fuel Tank Group - EVAP Compliant Parts Diagram

CTX9000 Series 42" Lawn Tractor, 20hp

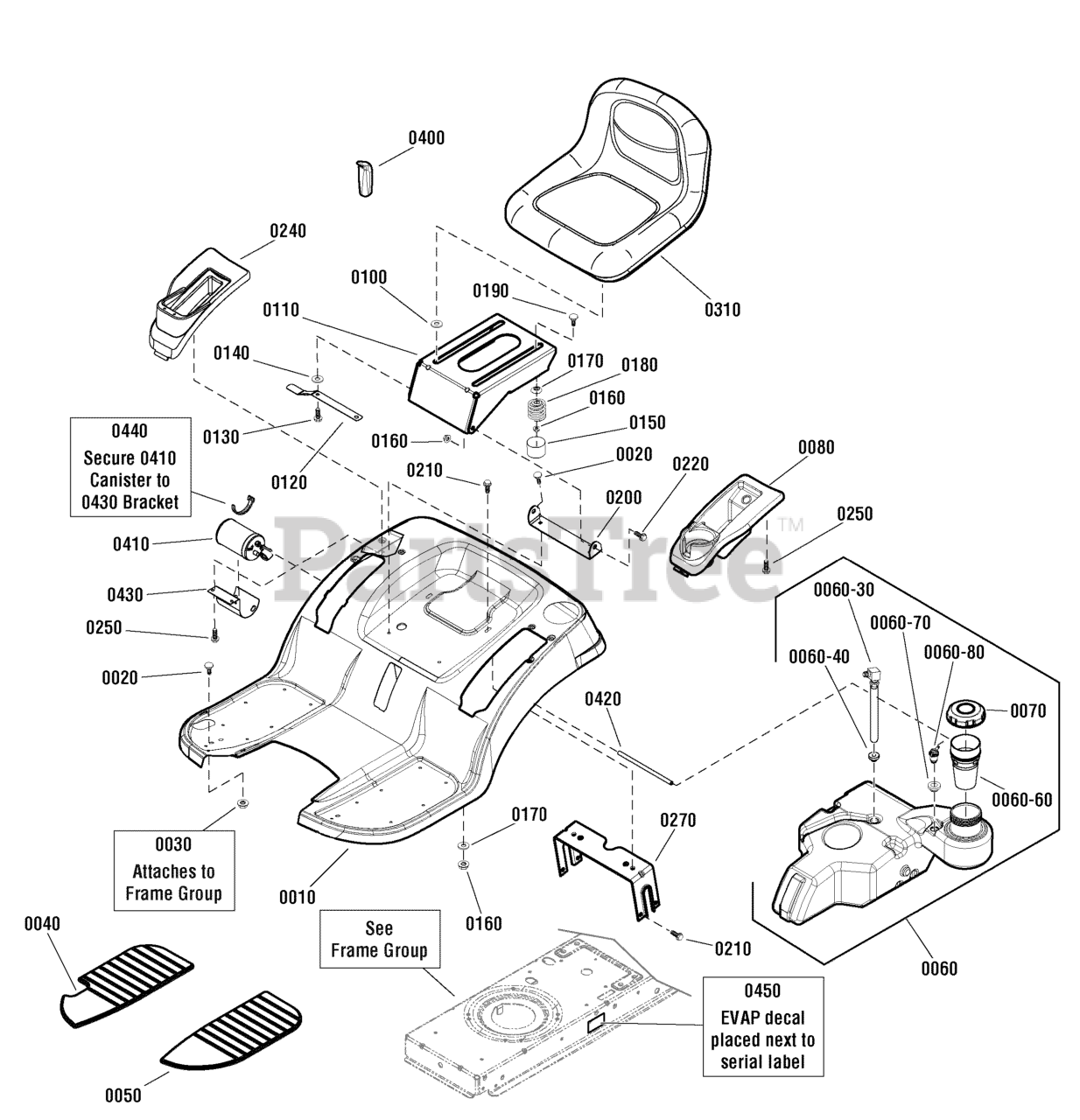

Seat Deck & Fuel Tank Group - EVAP Compliant Parts Diagram

  • Title

0010

Murray 1727264ZYP

DECK, Seat

$319.99

$

Usually ships in 2-12 days

0

0020

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 1728007SM

PAD, Footrest R.H.

$20.99

$

In Stock, only 1 left!

0

0050

Murray 1728006SM

PAD, Footrest L.H.

$21.99

$

In Stock, only 4 left!

0

0060

Murray 1751226YP

TANK, Fuel

$311.99

$

Usually ships in 2-12 days

0

0060-30

Murray 1736609YP

FITTING & HOSE ASSEMBLY, Fuel Tank

$24.99

$

In Stock, only 1 left!

0

0060-40

Murray 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0060-60

DROP TUBE

$

$

Not available

0060-70

Murray 799624

GROMMET

$8.99

$

In Stock, only 2 left!

0

0060-80

Murray 7104638YP

REMOTE VENT ASSEMBLY

$

$

Not available

0070

Murray 5103005YP

CAP, Fuel, EVAP
(Superseded to 1761224YP)

$48.99

$

In Stock, only 1 left!

0

0080

Murray 1739535YP

POD, L.H., Black

$32.99

$

Usually ships in 2-12 days

0

0100

Murray 1731300SM

SPACER, 5/16 ID x 1-1/4 OD

$5.49

$

Usually ships in 2-12 days

0

0110

Murray 1727265SM

SUPPORT, Seat

$102.99

$

Usually ships in 2-12 days

0

0120

Murray 1727268SM

LATCH, Seat

$8.99

$

Usually ships in 2-12 days

0

0130

Murray 770697

CAPSCREW, Hex, Whiz Lock, 5/16-18 x 1

$

$

Not available

0140

Murray 1919381SM

WASHER, 5/16 x 1 OD
(Superseded to 703298)

$4.49

$

In Stock, Qty 11

0

0150

Murray 1704724SM

COVER, Spring, 1-1/2 Long

$7.99

$

In Stock, only 1 left!

0

0160

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

0170

Murray 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

Usually ships in 2-12 days

0

0180

Murray 1704728SM

SPRING, Compression, 2 Long

$9.99

$

In Stock, only 2 left!

0

0190

Murray 1960282SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1727266ASM

PIVOT, Seat

$10.99

$

In Stock, only 1 left!

0

0210

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0220

Murray 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0240

Murray 1739537YP

POD, Electric, HOC, R.H., Black

$31.99

$

Usually ships in 2-12 days

0

0250

Murray 1960536SM

CAPSCREW, Hex Washer Head, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 1731310ASM

SUPPORT, Seat Deck
(Superseded to 1731310SM)

$36.99

$

Usually ships in 2-12 days

0

0310

Murray 1730159SM

SEAT, High Back

$463.99

$

Usually ships in 2-12 days

0

0400

Murray 1722302SM

GRIP, Vinyl, 1"

$8.49

$

In Stock, Qty 11

0

0410

Murray 1751599YP

CANISTER, Carbon, 300cc

Note: (Includes Filter)

$59.99

$

Usually ships in 2-12 days

0

0410A

Murray 1752800YP

FILTER, Dust

Note: (Fits On End of Cannister) (Not Shown Separately)

$15.99

$

Usually ships in 2-12 days

0

0420

Murray 1751715YP

HOSE, Vapor, 5mm

$17.99

$

In Stock, only 1 left!

0

0430

Murray 1751519BMYP

BRACKET, Canister Mounting

$10.99

$

Usually ships in 2-12 days

0

0440

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0450

Murray 1752229YP

DECAL, EVAP

$9.49

$

Usually ships in 2-12 days

0
