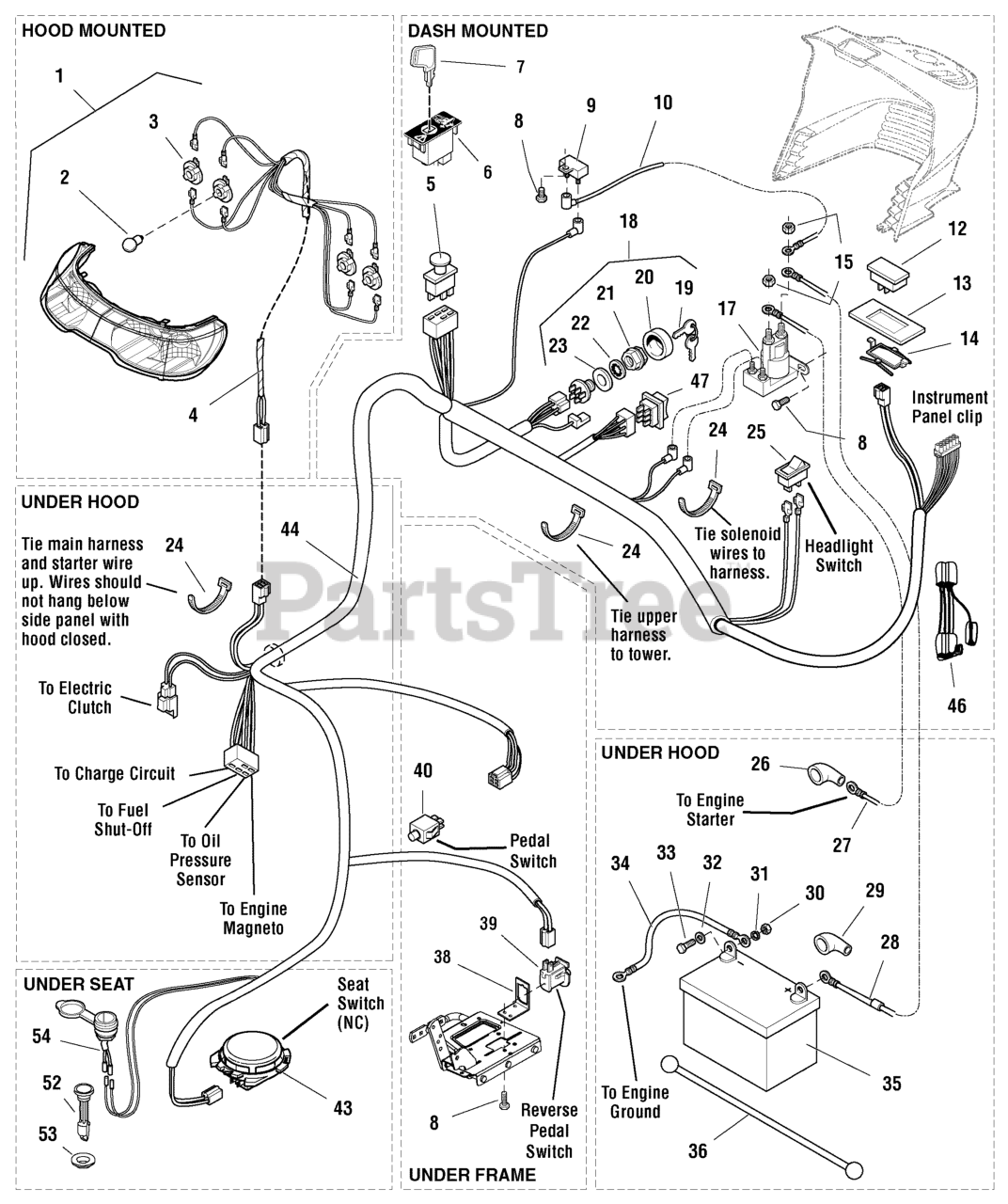

107.250050 (2691086-00) - Craftsman CTX9000 Series 46" Lawn Tractor, 22hp (2012) Electrical Group Parts Diagram

CTX9000 Series 46" Lawn Tractor, 22hp

Electrical Group Parts Diagram

  • Title

1

Murray 1721810SM

HEADLIGHT ASSEMBLY, 4 Bulb

Note: (Includes Ref. Nos. 2 & 3)

$164.99

$

Usually ships in 2-12 days

0

2

Murray 1677371SM

BULB, Headlight, 12.8V

$30.99

$

In Stock, only 1 left!

0

3

Murray 1723451SM

SOCKET ASSEMBLY, Headlight, Sealed

$28.99

$

In Stock, only 1 left!

0

4

Murray 1722669SM

HARNESS, Headlight

$40.99

$

Usually ships in 2-12 days

0

5

Murray 5022180SM

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

6

Murray 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

7

Murray 1726557SM

KEY, RMO Module, Plastic

$5.49

$

In Stock, Qty 20+

0

8

Murray 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

9

Murray 1665238SM

BREAKER, Circuit, 12 Volt 20 Amps

$14.99

$

In Stock, Qty 14

0

10

Murray 1665237SM

WIRE, 12GA 5-15/16 Long, Red

$11.99

$

In Stock, only 1 left!

0

12

Murray 1731184SM

METER, Hour Digital, with Oil & Lube Alarms

$64.99

$

In Stock, only 2 left!

0

13

Murray 1725524SM

PLUG, Dash, Hour Meter

$5.49

$

Usually ships in 2-12 days

0

14

Murray 1725835SM

CLIP, Hour Meter

Note: (Service Only)

$

$

Not available

15

Murray 2860750SM

NUT, KEPS Lock 5/16-24

$2.99

$

Usually ships in 2-12 days

0

17

Murray 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, only 1 left!

0

18

Murray 1686734SM

SWITCH ASSEMBLY, Ignition, 6 Pin INDAK

Note: (Includes Ref. Nos. 18, 19, 20, 21 & 22)

$32.99

$

In Stock, Qty 20+

0

19

Murray 1717163SM

KEYS, Set of 2

$8.99

$

In Stock, Qty 14

0

20

Murray 1717550SM

COVER, For Ignition Switch, Plastic
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

21

Murray 1717549SM

NUT, Hex Flange, 5/8-32, Ignition Switch
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

22

Murray 1960547SM

LOCKWASHER, Internal Tooth, 5/8, Thin

$4.49

$

In Stock, Qty 6

0

23

Murray 2101025SM

WASHER, Shim

$4.49

$

Usually ships in 2-12 days

0

24

Murray 2825094SM

TIE, Strap, 7-5/16 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

25

Murray 1716951SM

SWITCH, Headlights, 2 Terminal

$21.99

$

In Stock, only 3 left!

0

26

Murray 1713535SM

BOOT, Insulator Cable Terminal, 1-15/16 Long, Red

$5.99

$

Usually ships in 2-12 days

0

27

Murray 1721830SM

CABLE, #6 x 25" Long, Ring Terminals

$19.99

$

In Stock, only 1 left!

0

28

Murray 1603618SM

CABLE, #6 x 8" Long, Ring Terminals

$11.99

$

In Stock, only 1 left!

0

29

Murray 1677296SM

BOOT, Insulator Battery Terminal

$6.49

$

In Stock, only 2 left!

0

30

Murray 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

31

Murray 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

32

Murray 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

33

Murray 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

34

Murray 1713163SM

CABLE, #6 x 26 Long, Ring Terminal

$24.99

$

Usually ships in 2-12 days

0

35

BATTERY, 12 Volt

$

$

Not available

36

Murray 1722009SM

STRAP, Battery, 14 Long, Rubber

$10.99

$

In Stock, only 1 left!

0

38

Murray 1726810ASM

BRACKET, Switch Mount

$12.99

$

Usually ships in 2-12 days

0

39

Murray 1704379SM

SWITCH, Reverse Pedal
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 8

0

40

Murray 1732006SM

SWITCH, Push Button, Foot Pedal
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

43

Murray 1718981SM

SWITCH, Seat, Grey, NC

$21.99

$

Usually ships in 2-12 days

0

44

Murray 1739708YP

HARNESS, Wiring

$199.99

$

Usually ships in 2-12 days

0

46

Murray 1739717YP

HARNESS, Jumper

$50.99

$

Usually ships in 2-12 days

0

47

Murray 1716329SM

SWITCH, Mower Height Adjust

$47.99

$

In Stock, Qty 20+

0

52

Murray 1722300SM

FUEL GAUGE

$34.99

$

In Stock, only 1 left!

0

53

Murray 1722337SM

GROMMET

$8.99

$

In Stock, only 3 left!

0

54

Murray 1725302SM

OUTLET, 12 Volt

$26.99

$

Usually ships in 2-12 days

0
