107.250050 (2691086-00) - Craftsman CTX9000 Series 46" Lawn Tractor, 22hp (2012) Frame & Front Axle Group Parts Diagram

CTX9000 Series 46" Lawn Tractor, 22hp

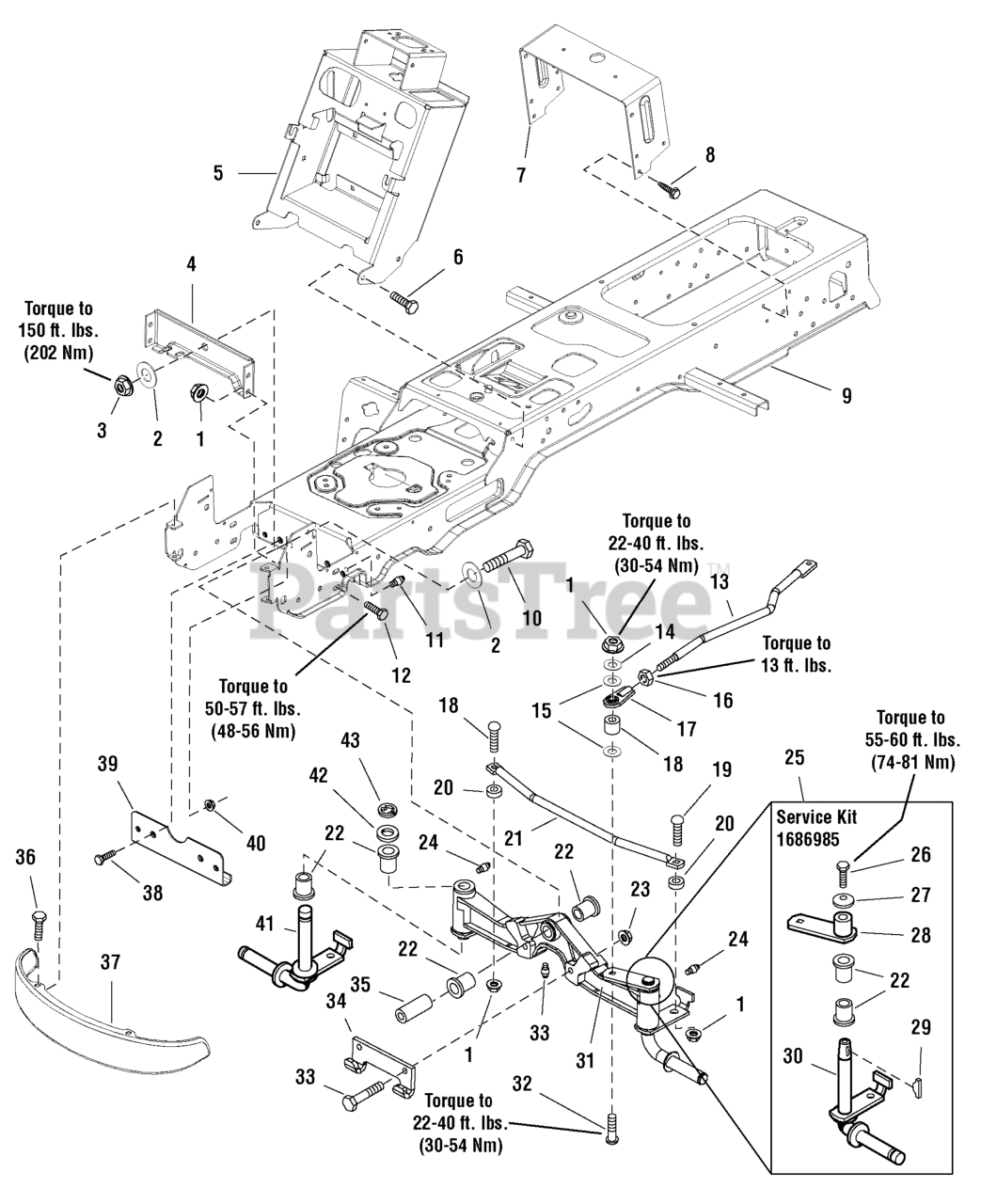

Frame & Front Axle Group Parts Diagram

  • Title

1

Murray 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

2

Murray 1960035SM

WASHER

$4.49

$

In Stock, Qty 13

0

3

Murray 2860646SM

NUT, Hex Flange, 5/8-11

$10.99

$

In Stock, Qty 8

0

4

Murray 1722212ASM

PLATE, Axle

$33.99

$

In Stock, only 1 left!

0

5

Murray 1733765ASM

TOWER & SUPPORT ASSEMBLY

$922.99

$

Usually ships in 2-12 days

0

6

Murray 1923683SM

CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

7

Murray 1723528ASM

SUPPORT

$23.99

$

Usually ships in 2-12 days

0

8

Murray 1664847SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

9

Murray 1726989ASM

FRAME ASSEMBLY
(Superseded to 1754506AYP)

$733.99

$

Usually ships in 2-12 days

0

10

Murray 2860645SM

CAPSCREW, 5/8-11 x 3-1/2

$8.99

$

In Stock, Qty 8

0

11

Murray 1704314SM

FITTING, Grease for Wear Plate, 1/4-20, with Ball
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

12

Murray 1933260SM

CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0

13

Murray 1722541SM

LINK, Drag

$31.99

$

In Stock, only 1 left!

0

14

Murray 1922755SM

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

15

Murray 1960103SM

WASHER, 3/8"

$4.49

$

In Stock, only 2 left!

0

16

Murray 1919262SM

NUT, Hex Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

17

Murray 1702779SM

JOINT-BALL .500-20 THD .500ID

$28.99

$

In Stock, only 2 left!

0

18

Murray 1708236SM

SPACER

$8.99

$

In Stock, only 4 left!

0

19

Murray 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, Qty 5

0

20

Murray 1611705SM

SPACER

$4.49

$

In Stock, only 2 left!

0

21

Murray 1722626ASM

ROD, Tie

$34.99

$

In Stock, only 1 left!

0

22

Murray 1721682SM

BUSHING

$5.49

$

In Stock, Qty 20+

0

23

Murray 1930650SM

NUT, Hex Flange Lock, 7/16-14

$5.49

$

In Stock, only 1 left!

0

24

Murray 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

25

Murray 1686985SM

SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)

$

$

Not available

26

Murray 2823485SM

CAPSCREW, 3/8-16 x 7/8, GR8

$4.49

$

In Stock, only 1 left!

0

27

Murray 1663151SM

WASHER, Spring, 3/8

$14.99

$

Usually ships in 2-12 days

0

28

Murray 1725112SM

HUB & ARM ASSEMBLY
(Superseded to 1725112ASM)

$149.99

$

Usually ships in 2-12 days

0

29

Murray 2830671SM

KEY, Woodruff

$8.49

$

In Stock, only 1 left!

0

30

Murray 1724264SM

SPINDLE, LH
(Superseded to 1686985SM)

$

$

Not available

31

Murray 1722200ASM

AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43)

$384.99

$

Usually ships in 2-12 days

0

32

Murray 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

33

Murray 1927531SM

CAPSCREW, Hex Head, 7/16-14 x 2, G8, Black

$5.49

$

In Stock, only 1 left!

0

34

Murray 1721918ASM

HOOK, "J"

$31.99

$

In Stock, only 2 left!

0

35

Murray 1721752SM

SPACER

$14.99

$

Usually ships in 2-12 days

0

36

Murray 1960086SM

SCREW, Torx Head, 5/16-18 x 7/8

$4.99

$

In Stock, Qty 5

0

37

Murray 1721805ASM

BUMPER, Black, Steel, Standard

$59.99

$

Usually ships in 2-12 days

0

37

Murray 1723502SM

BUMPER, Chrome, Optional

$128.99

$

Usually ships in 2-12 days

0

38

Murray 1930591SM

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

39

Murray 1724801ASM

PLATE, Axle Wear

$26.99

$

Usually ships in 2-12 days

0

40

Murray 1931277SM

NUT, Hex Falnge Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

41

Murray 1722199SM

SPINDLE, RH
(Superseded to 1722199AYP)

$

$

Not available

42

Murray 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, only 4 left!

0

43

Murray 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0
