107.250050 (2691086-00) - Craftsman CTX9000 Series 46" Lawn Tractor, 22hp (2012) Transmission SERVICE PARTS - Tuff Torq K57A (1722668) Parts Diagram

CTX9000 Series 46" Lawn Tractor, 22hp

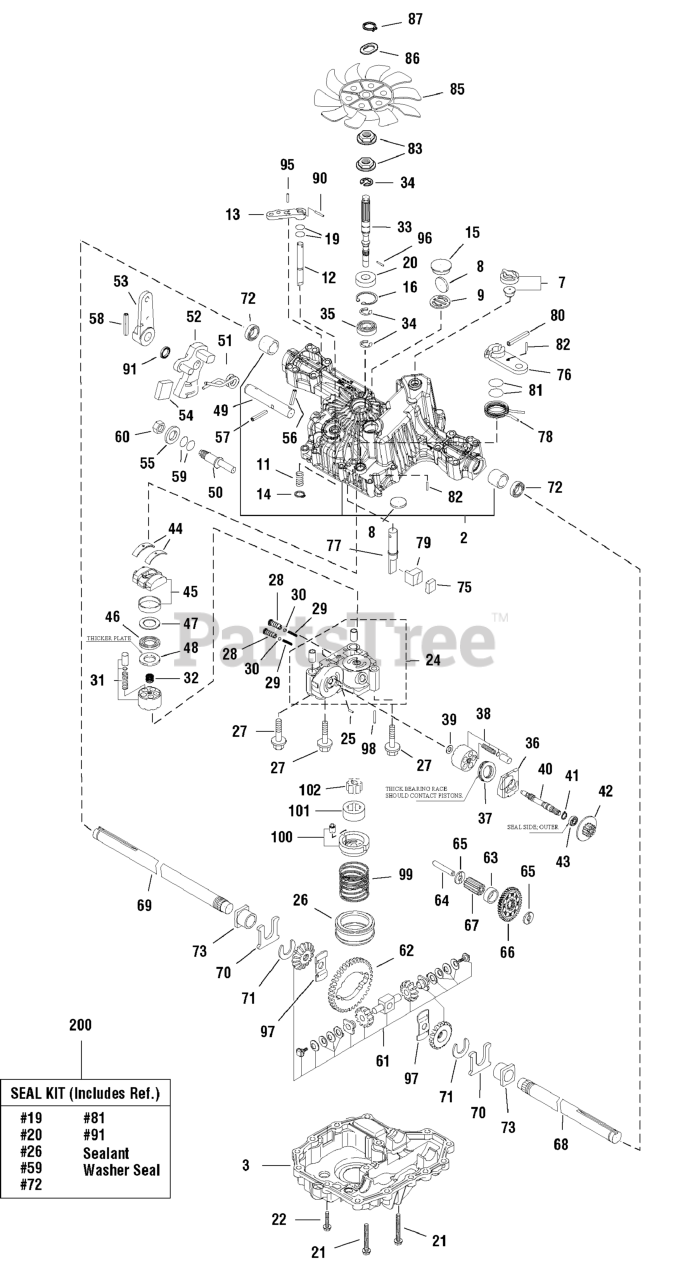

Transmission SERVICE PARTS - Tuff Torq K57A (1722668) Parts Diagram

  • Title

2

*HOUSING ASSEMBLY, Upper

$

$

Not available

3

Murray 1724938SM

HOUSING, LOWER

$95.99

$

Usually ships in 2-12 days

0

7

Murray 1718052SM

VENT VALVE 15

$26.99

$

Usually ships in 2-12 days

0

8

Murray 1724279SM

MAGNET

$5.49

$

Usually ships in 2-12 days

0

9

*HOLDER, Magnet

$

$

Not available

11

Murray 1725730SM

SPRING 25

$1.99

$

Usually ships in 2-12 days

0

12

Murray 1724281SM

BYPASS SHAFT A

$42.99

$

Usually ships in 2-12 days

0

13

Murray 1720418SM

LEVER, Bypass

$14.99

$

Usually ships in 2-12 days

0

14

Murray 1718061SM

RING, Snap, 10

$

$

Not available

15

Murray 1724282SM

SEALING CAP, 30
(Superseded to 1760090YP)

$15.99

$

In Stock, only 2 left!

0

16

Murray 1708650SM

RING, Snap, C 35

$4.99

$

Usually ships in 2-12 days

0

19

Murray 1708691SM

0-RING, 1A P10A
(Superseded to 7073793YP)

$5.99

$

Usually ships in 2-12 days

0

20

Murray 1708651SM

SEAL TC 153507
(Superseded to 7073794YP)

$23.99

$

In Stock, only 1 left!

0

21

Murray 1707789SM

SCREW, Tapping, 8 * 30

$6.99

$

Usually ships in 2-12 days

0

22

*SCREW, Tapping

$

$

Not available

24

Murray 1724939SM

CASE, CENTER

$282.99

$

Usually ships in 2-12 days

0

25

Murray 1718070SM

PIN, 3 * 9.8

$2.99

$

Usually ships in 2-12 days

0

26

Murray 1724954SM

FILTER

$31.99

$

In Stock, only 1 left!

0

27

Murray 1720805SM

BOLT, 10 * 75

$6.99

$

Usually ships in 2-12 days

0

28

Murray 1724286SM

VALVE, IDS 1.0

$

$

Not available

29

Murray 1724287SM

IDS SPRING

$4.99

$

Usually ships in 2-12 days

0

30

*BALL, 3/16

$

$

Not available

31

*CYLINDER BLOCK ASSEMBLY

$

$

Not available

32

Murray 1724290SM

SPRING

$3.49

$

Usually ships in 2-12 days

0

33

Murray 1724941SM

SHAFT, PUMP

$84.99

$

Usually ships in 2-12 days

0

34

Murray 1718076SM

E-RING, 15

$4.49

$

Usually ships in 2-12 days

0

35

Murray 1708673SM

BEARING, 6202C3

$24.99

$

Usually ships in 2-12 days

0

36

Murray 1718077SM

MOTOR HOUSING

$45.99

$

Usually ships in 2-12 days

0

37

*BEARING, Thrust

$

$

Not available

38

Murray 1718079SM

KIT, Cylinder Block

$535.99

$

Usually ships in 2-12 days

0

39

Murray 1718084SM

WASHER, 12 * 24 * 1

$4.49

$

Usually ships in 2-12 days

0

40

Murray 1724943SM

MOTOR SHAFT

$31.99

$

Usually ships in 2-12 days

0

41

Murray 1708672SM

RING, Snap, S15

$5.49

$

Usually ships in 2-12 days

0

42

Murray 1724944SM

BRAKE DISC/MOTOR GEAR (10T)

$30.99

$

Usually ships in 2-12 days

0

43

Murray 1718083SM

BEARING, 6202UC3
(Superseded to 7073792YP)

$64.99

$

In Stock, only 1 left!

0

44

Murray 1718089SM

THRUST METAL

$16.99

$

Usually ships in 2-12 days

0

45

Murray 1720426SM

SWASH PLATE ASSEMBLY

$

$

Not available

46

Murray 1718088SM

THRUST PLATE, B

$24.99

$

Usually ships in 2-12 days

0

47

Murray 1718086SM

THRUST BEARING K81105

$35.99

$

Usually ships in 2-12 days

0

48

Murray 1718087SM

THRUST PLATE, A

$36.99

$

Usually ships in 2-12 days

0

49

*SHAFT, Control

$

$

Not available

50

*FULCRUM, ECCENTRIC

$

$

Not available

51

Murray 1724345SM

SPRING, Torsion, Standard

$19.99

$

Usually ships in 2-12 days

0

52

Murray 1724346SM

LEVER, Control

$74.99

$

Usually ships in 2-12 days

0

53

Murray 1724347SM

CONTROL LEVER C

$19.99

$

In Stock, only 1 left!

0

54

Murray 1724348SM

JERKY PLATE

$9.99

$

Usually ships in 2-12 days

0

55

Murray 1708689SM

WASHER, 12

$3.99

$

Usually ships in 2-12 days

0

56

Murray 1724349SM

COTTER PIN, 1/8 * 3/4

$4.49

$

Usually ships in 2-12 days

0

57

Murray 1724296SM

SPRING PIN 6 * 36

$4.99

$

In Stock, only 1 left!

0

58

Murray 1718100SM

ROLL PIN 6 * 40
(Superseded to 1960588SM)

$4.49

$

In Stock, only 1 left!

0

59

Murray 1707879SM

O-RING 1A P14

$4.49

$

Usually ships in 2-12 days

0

60

Murray 1708692SM

NUT 12

$2.99

$

Usually ships in 2-12 days

0

61

Murray 1724955SM

GEAR & PINION ASSEMBLY

$462.99

$

Usually ships in 2-12 days

0

62

*GEAR, FINAL CONTR TRAC

$

$

Not available

63

Murray 1724946SM

COLLAR, PINION

$3.99

$

Usually ships in 2-12 days

0

64

*SHAFT, Reduction

$

$

Not available

65

Murray 1724948SM

WASHER, 12 * 32 * 3.2

$5.49

$

Usually ships in 2-12 days

0

66

Murray 1724949SM

REDUCTION GEAR (38T)

$34.99

$

Usually ships in 2-12 days

0

67

Murray 1724950SM

FINAL PINION (10T)

$103.99

$

Usually ships in 2-12 days

0

68

Murray 1724304SM

AXLE SHAFT, Right

$102.99

$

Usually ships in 2-12 days

0

69

Murray 1724303SM

AXLE SHAFT, Left

$102.99

$

Usually ships in 2-12 days

0

70

Murray 1718112SM

THRUST WASHER

$18.99

$

Usually ships in 2-12 days

0

71

Murray 1718113SM

RING, 17

$5.99

$

Usually ships in 2-12 days

0

72

Murray 1718111SM

SEAL, 19 * 32 * 8
(Superseded to 84002383)

Note: ( For this part only contact B&S Tech support )

$15.99

$

In Stock, only 3 left!

0

73

Murray 1718110SM

BUSHING, 19 * 25

$8.99

$

Usually ships in 2-12 days

0

75

Murray 1724305SM

BRAKE SHOE

$5.49

$

In Stock, only 1 left!

0

76

Murray 1724306SM

BRAKE LEVER

$11.99

$

Usually ships in 2-12 days

0

77

SHAFT, Brake

$

$

Not available

78

Murray 1724308SM

RETURN SPRING B

$

$

Not available

79

Murray 1724309SM

BRAKE ACTUATOR

$4.99

$

Usually ships in 2-12 days

0

80

Murray 1724310SM

SPRING PIN, 5 * 32

$2.49

$

Usually ships in 2-12 days

0

81

Murray 1708690SM

O-RING 1A P12
(Superseded to 7073763YP)

$6.49

$

In Stock, only 1 left!

0

82

Murray 1724311SM

SPRING PIN 4 * 16

$3.99

$

Usually ships in 2-12 days

0

83

Murray 1724312SM

SPLINE COLLAR

$7.99

$

Usually ships in 2-12 days

0

85

Murray 1724314SM

FAN, White
(Superseded to 7073753YP)

$53.99

$

In Stock, only 2 left!

0

86

Murray 1724315SM

WASHER, Wave

$4.49

$

In Stock, only 3 left!

0

87

Murray 1724316SM

RING, Snap

$4.99

$

In Stock, Qty 13

0

90

Murray 1707839SM

SPRING PIN, 3.0A * 20

$3.49

$

Usually ships in 2-12 days

0

91

Murray 1724318SM

OIL SEAL 16 * 22 * .03

$5.99

$

Usually ships in 2-12 days

0

95

Murray 1707839SM

SPRING PIN, 3.0A * 20

$3.49

$

Usually ships in 2-12 days

0

97

Murray 1724956SM

WASHER, THRUST DIFF

$4.99

$

Usually ships in 2-12 days

0

98

PIN, 3.0A x 18

$

$

Not available

99

*SPRING, Charge

$

$

Not available

100

Murray 1724953SM

CHARGE PUMP CASE ASSEMBLY

$47.99

$

Usually ships in 2-12 days

0

200

Murray 1727542SM

SEAL KIT (K57A & K)

$164.99

$

Usually ships in 2-12 days

0
