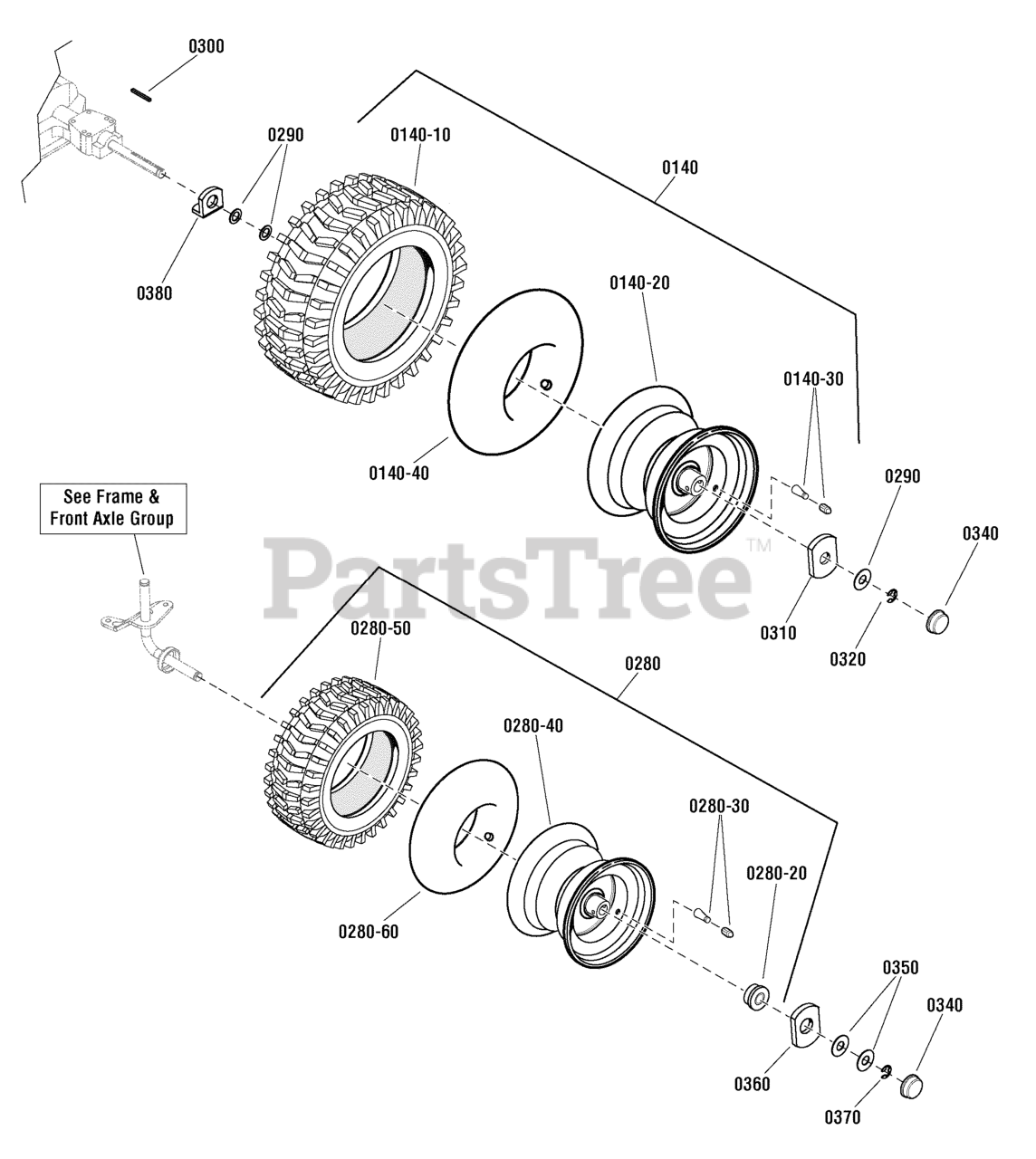

107.250050 (2691086-00) - Craftsman CTX9000 Series 46" Lawn Tractor, 22hp (2012) Wheels & Tires Group Parts Diagram

CTX9000 Series 46" Lawn Tractor, 22hp

Wheels & Tires Group Parts Diagram

  • Title

0140

Murray 1726491SM

WHEEL & TIRE ASSEMBLY
(Superseded to 1755553YP)

Note: (Incl. Ref. Nos. 0140-10, 0140-20, 0140-30, 0140-40 & 0280-30)

$396.99

$

In Stock, only 2 left!

0

0140-10

Murray 1727136SM

TIRE, 22 x 10, 10 Super Turf

Note: (Included with Ref. No. 0140)

$179.99

$

Usually ships in 2-12 days

0

0140-20

Murray 1726492SM

WHEEL, 7 x 9.97, W/ 3/4 OD Shaft

Note: (Included with Ref. No. 0140)

$

$

Not available

0140-30

Murray 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

Note: (Included with Ref. No. 0140)

$

$

Not available

0140-40

Murray 2173477SM

TUBE, Tire, 20 x 8, Rear

Note: (Included with Ref. No. 0140)

$85.99

$

Usually ships in 2-12 days

0

0280

Murray 1732202SM

WHEEL & TIRE ASSEMBLY, Front

Note: (Incl. Ref. Nos. 0280-20, 0280-30, 0280-40, 0280-50, 0280-60)

$213.99

$

In Stock, only 3 left!

0

0280-20

Murray 1717056SM

BEARING, Ball

Note: (Included with Ref. No. 0280)

$33.99

$

Usually ships in 2-12 days

0

0280-30

Murray 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

Note: (Included with Ref. No. 0280)

$

$

Not available

0280-40

Murray 1722837SM

WHEEL, 4-1/2" x 6"

Note: (Included with Ref. No. 0280)

$

$

Not available

0280-50

Murray 1723882SM

TIRE, 15 x 6, Super Turf

Note: (Included with Ref. No. 0280)

$

$

Not available

0280-60

Murray 1664090SM

TUBE, Tire, Front, 4.10/3.50

Note: (Included with Ref. No. 0280)

$26.99

$

In Stock, only 3 left!

0

0290

Murray 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 13

0

0300

Murray 5048409SM

KEY, Parallel, 3/16 x 3/16 x 2-1/2

$3.49

$

Usually ships in 2-12 days

0

0310

Murray 1722717SM

WASHER, Special

$7.99

$

In Stock, only 4 left!

0

0320

Murray 2827794SM

RING, "E" External

$3.49

$

In Stock, Qty 20+

0

0340

Murray 1722676SM

CAP, Hub, Gray

$5.49

$

In Stock, Qty 20+

0

0350

Murray 1919394SM

WASHER, 1, (As Required for All Front)
(Superseded to 703149)

$3.49

$

In Stock, only 4 left!

0

0360

Murray 1722726SM

WASHER, Flat 1 (Double D)

$5.49

$

In Stock, only 4 left!

0

0370

Murray 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

0380

Murray 1737049AYP

WASHER, Axle Seal

$14.99

$

In Stock, only 1 left!

0
