107.250060 (2691087-00) - Craftsman CTX9500 Series 52" Lawn Tractor, 26hp (2012) Wheels & Tires Group Parts Diagram

CTX9500 Series 52" Lawn Tractor, 26hp

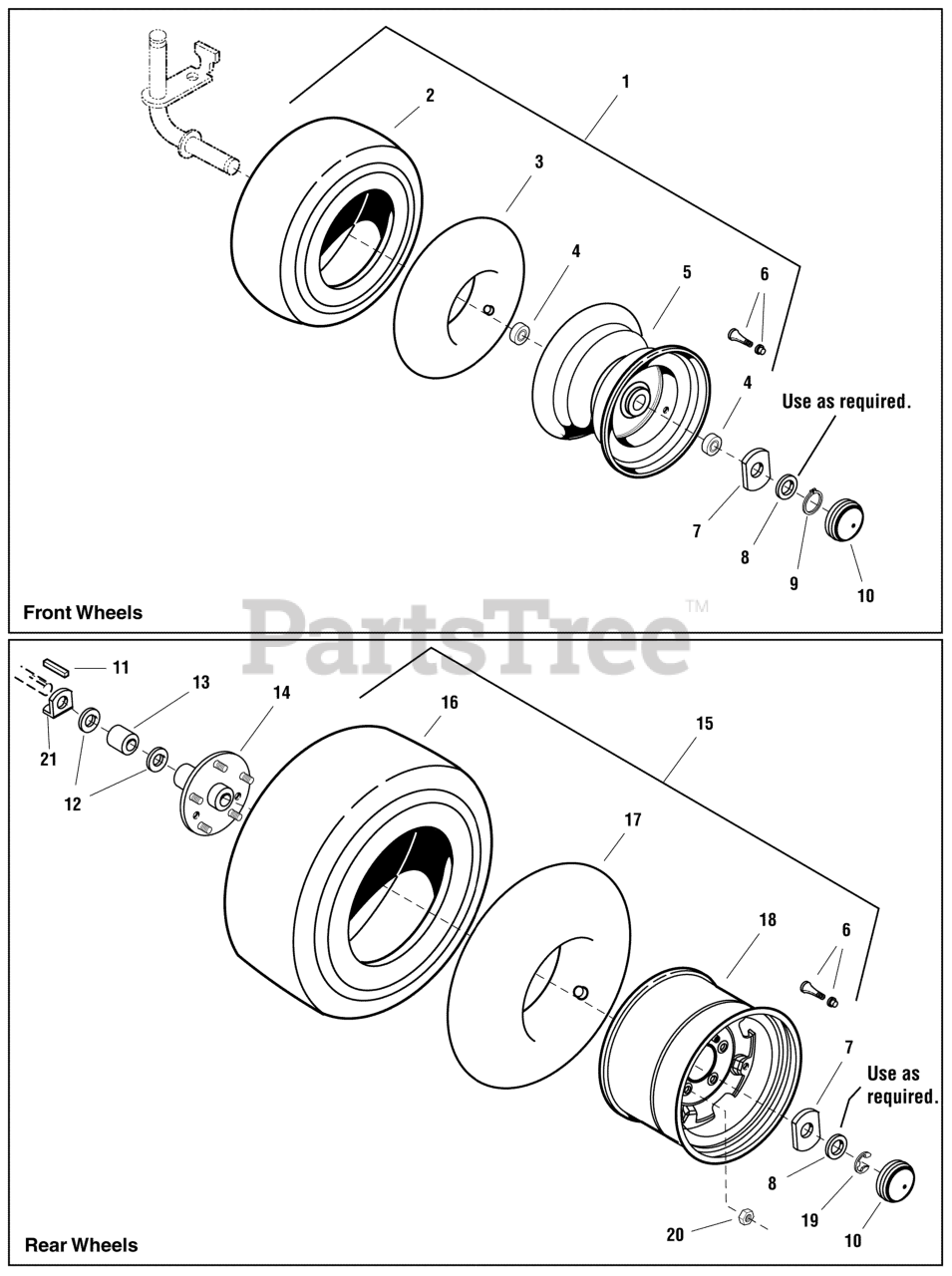

Wheels & Tires Group Parts Diagram

  • Title

1

Murray 1722305SM

WHEEL & TIRE ASSEMBLY, Front
(Superseded to 84002906)

Note: (Includes Ref. Nos. 2, 3, 4, 5 & 6)

$227.99

$

In Stock, only 2 left!

0

2

Murray 1722833SM

TIRE, 16 x 6-1/2 - 8 Super Turf, Front
(Superseded to 7073584YP)

$170.99

$

Usually ships in 2-12 days

0

3

Murray 2164247SM

TUBE, Tire 16 x 6-1/2 - 8, Front

$40.99

$

In Stock, only 1 left!

0

4

Murray 1717056SM

BEARING, Ball

$33.99

$

Usually ships in 2-12 days

0

5

WHEEL, 5 3/8 x 7-15/16, Front

$

$

Not available

6

Murray 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

$

$

Not available

7

Murray 1722726SM

WASHER, Special, 1 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

8

Murray 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, only 2 left!

0

9

Murray 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

10

Murray 1722676SM

CAP, Hub Grey, 2-23/64

$5.49

$

In Stock, Qty 17

0

11

Murray 2105337SM

KEY, HI PRO, 1/4 x 2

$8.49

$

In Stock, only 2 left!

0

12

Murray 2860200SM

WASHER

$5.49

$

In Stock, only 2 left!

0

13

Murray 1723112SM

SPACER, 1-1/16 x 1-1/2 x 1-23/32, Black

$9.99

$

Usually ships in 2-12 days

0

14

Murray 1721400SM

PLATE & HUB ASSEMBLY, Rear Wheel w/Studs

$101.99

$

Usually ships in 2-12 days

0

15

Murray 1738096YP

WHEEL & TIRE ASSEMBLY, Rear 23"

Note: (Includes Ref. Nos. 6, 16, 17 & 18)

$393.99

$

Usually ships in 2-12 days

0

16

Murray 1722830SM

TIRE, 23 x 10-1/2 - 12 Super Turf, Rear

$242.99

$

Usually ships in 2-12 days

0

17

Murray 2157638SM

TUBE, Tire 23 x 10-1/2 - 12, Rear

$86.99

$

In Stock, only 2 left!

0

18

WHEEL, 7 x 12, Rear

$

$

Not available

19

Murray 2834712SM

RING, Shaft

$4.99

$

In Stock, Qty 10

0

20

Murray 2177725SM

NUT, Hex 7/16-20, For Wheel Bolt

$6.49

$

In Stock, only 3 left!

0

21

Murray 1737043AYP

BRACKET, Washer Axle

$14.99

$

Usually ships in 2-12 days

0
