107.250070 (2691088-00) - Craftsman CTX9500 Series 54" Lawn Tractor, 30hp (2012) Controls Group - Cruise Control Parts Diagram

CTX9500 Series 54" Lawn Tractor, 30hp

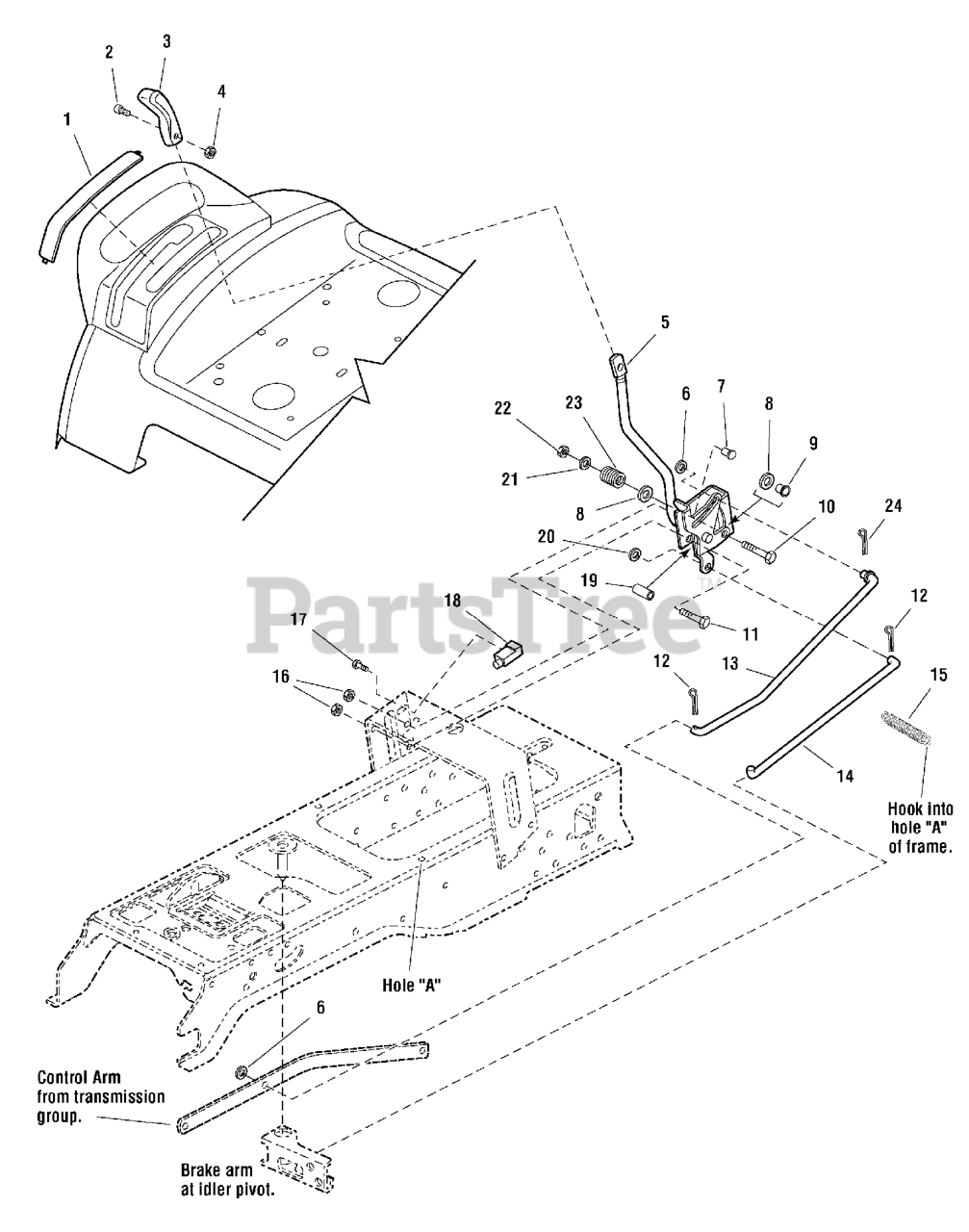

Controls Group - Cruise Control Parts Diagram

  • Title

1

Murray 1722314SM

COVER, w/Cruise Icon

$8.99

$

Usually ships in 2-12 days

0

2

Murray 1960666SM

SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8

$4.49

$

Usually ships in 2-12 days

0

3

Murray 1722303SM

KNOB, Cruise

$13.99

$

In Stock, only 1 left!

0

4

Murray 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 1722003AYP

LEVER & BRACKET ASSEMBLY, Cruise
(Superseded to 1722003SM)

$78.99

$

Usually ships in 2-12 days

0

6

Murray 1960103SM

WASHER, 3/8"

$4.49

$

In Stock, only 2 left!

0

7

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

8

Murray 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, only 1 left!

0

9

Murray 1709043SM

SPACER, w/Flange, 11/32 x 15/32 x 3/4

$8.49

$

Usually ships in 2-12 days

0

10

Murray 1931342SM

BOLT, Carriage, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

11

Murray 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

12

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 10

0

13

Murray 1722117SM

ROD, Cruise

$14.99

$

Usually ships in 2-12 days

0

14

Murray 1733719SM

ROD, Return

$14.99

$

Usually ships in 2-12 days

0

15

Murray 2159106SM

SPRING, Cruise Return to Frame
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

16

Murray 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

17

Murray 1960001SM

CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1717050SM

SWITCH, Push, Neutral Start, Gray

$17.99

$

In Stock, Qty 11

0

19

Murray 1722080SM

SPACER, 11/32 x 5/8 x 1-13/32

$15.99

$

Usually ships in 2-12 days

0

20

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

21

Murray 1919381SM

WASHER, 5/16, Black
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

22

Murray 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

23

Murray 1677746SM

SPRING, Compression

$7.99

$

Usually ships in 2-12 days

0

24

Murray 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0
