107.250070 (2691088-00) - Craftsman CTX9500 Series 54" Lawn Tractor, 30hp (2012) Engine Group - 30HP Briggs & Stratton, Twin Parts Diagram

CTX9500 Series 54" Lawn Tractor, 30hp

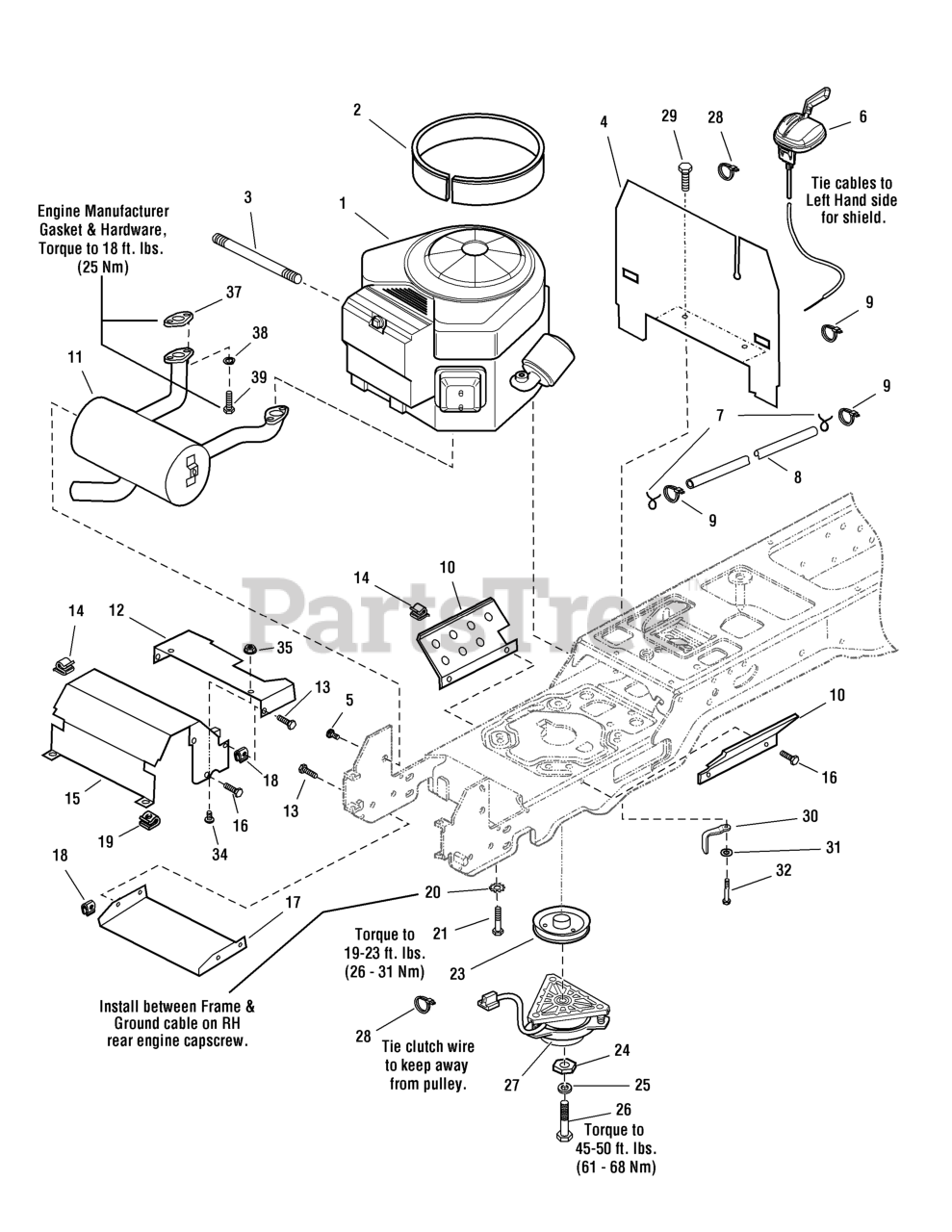

Engine Group - 30HP Briggs & Stratton, Twin Parts Diagram

  • Title

1

Murray 49M877-5111-G5

ENGINE, 30 HP Briggs & Stratton

Note: (Engine Model: 49M877-5111-G5)

$

$

Not available

2

Murray 1751237YP

EDGING, Airduct

$35.99

$

In Stock, only 2 left!

0

3

Murray 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

4

Murray 1722388ASM

HEAT SHIELD

$39.99

$

In Stock, only 1 left!

0

5

Murray 1924856SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

6

Murray 1737747YP

THROTTLE CONTROL

$

$

Not available

7

Murray 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

8

Murray 1734985SM

HOSE, Fuel

$20.99

$

Usually ships in 2-12 days

0

9

Murray 1701011SM

TIE, Self Locking, 7-5/16 Long

$5.49

$

In Stock, only 2 left!

0

10

Murray 1722392ASM

SHIELD, Side, Heat

$10.99

$

Usually ships in 2-12 days

0

11

Murray 1721706SM

MUFFLER ASSEMBLY

$231.99

$

Usually ships in 2-12 days

0

12

Murray 1722390ASM

DUCT, Muffler Extension

$12.99

$

Usually ships in 2-12 days

0

13

Murray 1960295SM

CAPSCREW, Hex, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 3 left!

0

14

Murray 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

In Stock, only 2 left!

0

15

Murray 1722389ASM

DUCT, Muffler Top

$80.99

$

Usually ships in 2-12 days

0

16

Murray 1927428SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

17

Murray 1722414ASM

SHIELD, Muffler Bottom

$20.99

$

Usually ships in 2-12 days

0

18

Murray 1960368SM

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

19

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, Qty 7

0

20

Murray 2820427SM

WASHER, Locking, External Teeth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

21

Murray 2830598SM

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

23

Murray 1732576SM

PULLEY, Engine

$42.99

$

In Stock, only 4 left!

0

24

Murray 1708264SM

WASHER, Hex, 7/16 x 1-1/2

$8.99

$

In Stock, Qty 7

0

25

Murray 1918199SM

WASHER, Locking, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

26

Murray 1960649SM

CAPSCREW, Hex Head 7/16-20 x 3-1/2

$7.49

$

Usually ships in 2-12 days

0

27

Murray 1736105SM

CLUTCH

$387.99

$

Usually ships in 2-12 days

0

28

Murray 2832747SM

TIE, Self Locking, 3-5/8 Long

$3.99

$

Usually ships in 2-12 days

0

29

Murray 1925003SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

30

Murray 1737421AYP

RETAINER, Clutch

$12.99

$

In Stock, only 2 left!

0

31

Murray 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Murray 2827187SM

CAPSCREW, Hex Head 3/8-16 x 1
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

34

Murray 5025299X4SM

SCREW, 1/4-20 X 1/2 ALLEN BH

$4.99

$

In Stock, only 4 left!

0

35

Murray 703233

NUT, 1/4-20 Hex Serrated Flange

$4.49

$

In Stock, only 2 left!

0

37

Murray 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

38

Murray 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Murray 2860660SM

CAPSCREW, Socket Head, 5/16-18 x 7/8, G8

$3.99

$

Usually ships in 2-12 days

0
