107.277680 (2690514) - Craftsman ZTS7500 Series 42" Zero-Turn Mower, 19hp Briggs & Stratton (2005) 42" Mower Deck - Clutch & Support Group Parts Diagram

ZTS7500 Series 42" Zero-Turn Mower, 19hp Briggs & Stratton

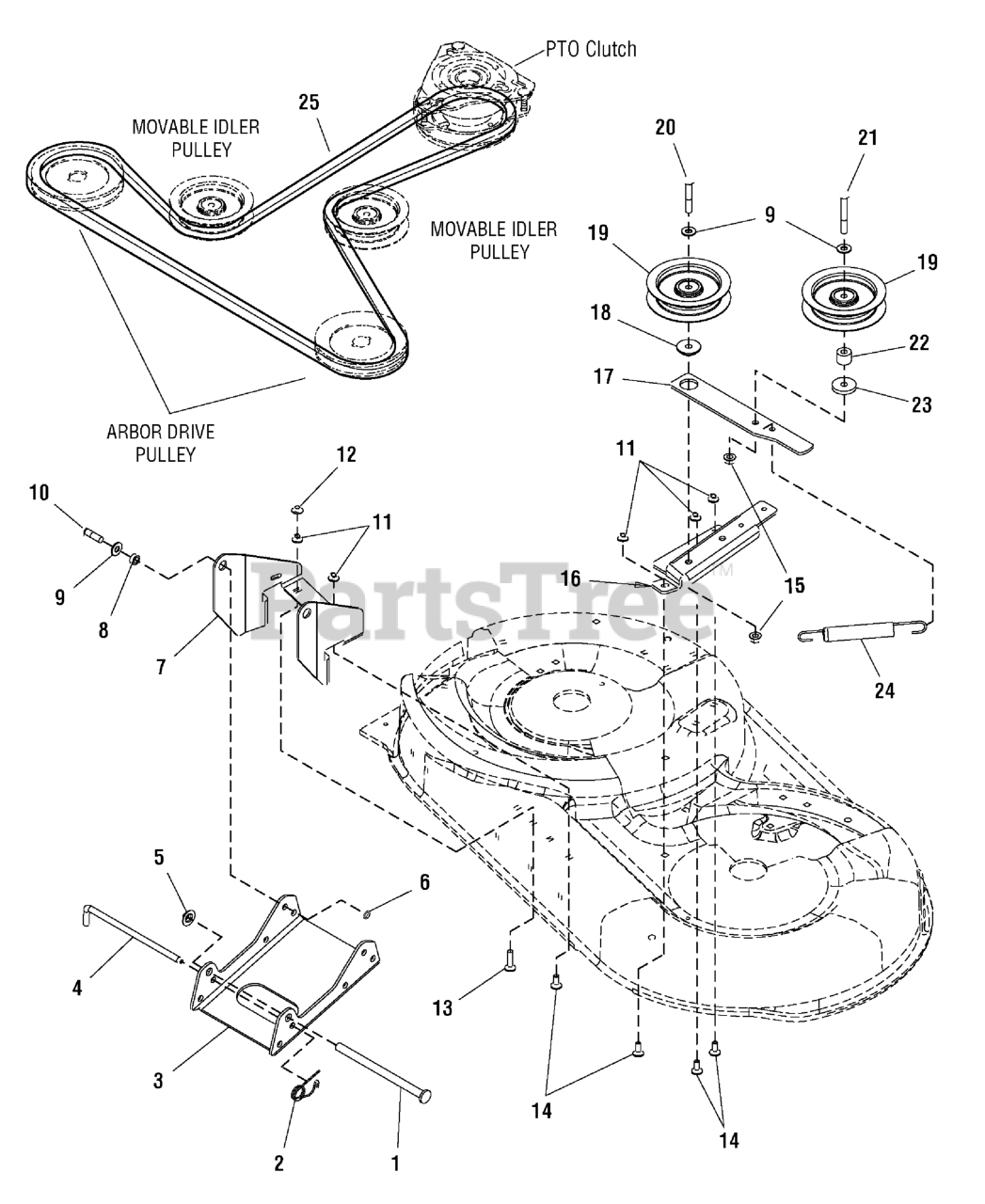

42" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Murray 1713578SM

ROD, 7-5/8 Long

$15.99

$

In Stock, Qty 7

0

2

Murray 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

3

Murray 1728124ASM

HITCH, Mower

$46.99

$

In Stock, only 1 left!

0

4

Murray 1726012SM

ROD, ZTR

$12.99

$

In Stock, only 1 left!

0

5

Murray 1960519SM

NUT, Push 1/2 Stud Capped
(Superseded to 703179)

$3.49

$

Usually ships in 2-12 days

0

6

Murray 1919439SM

NUT, Hex Lock ESNA Light, 3/8-16 NC3B
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

7

Murray 1732225ZSM

HITCH, Mower Front 42"

$66.99

$

Usually ships in 2-12 days

0

8

Murray 2108717SM

SPACER

$17.99

$

In Stock, only 4 left!

0

9

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Murray 1922605SM

CAPSCREW, Hex Head 3/8-16 x 1-1/4, G8
(Superseded to 703969)

$4.99

$

In Stock, only 1 left!

0

11

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Murray 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

13

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

14

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

15

Murray 1931211SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

16

Murray 1732260ASM

BRACKET, Idler Fixed

$35.99

$

Usually ships in 2-12 days

0

17

Murray 1732502ASM

ARM, Idler Clutch

$116.99

$

Usually ships in 2-12 days

0

18

Murray 1714255SM

SPACER, Powdered Metal

$6.49

$

In Stock, Qty 9

0

19

Murray 1732360SM

PULLEY, Idler 4"

$48.99

$

In Stock, Qty 17

0

20

Murray 1922130SM

CAPSCREW, Hex Head 3/8-16 x 2-1/4, G5
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

21

Murray 1921973SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4, G5

$5.49

$

Usually ships in 2-12 days

0

22

Murray 1667812SM

SPACER

$5.99

$

In Stock, Qty 6

0

23

Murray 1960534SM

WASHER, 3/8 Black

$

$

Not available

24

Murray 1730177SM

Spring, Extension 7-7/8 Long
(Superseded to 1687303SM)

$51.99

$

Usually ships in 2-12 days

0

25

Murray 1732966SM

BELT, HA 98

$75.99

$

Usually ships in 2-12 days

0
