107.277680 (2690514) - Craftsman ZTS7500 Series 42" Zero-Turn Mower, 19hp Briggs & Stratton (2005) 42" Mower Deck - Height Adjustment Group Parts Diagram

ZTS7500 Series 42" Zero-Turn Mower, 19hp Briggs & Stratton

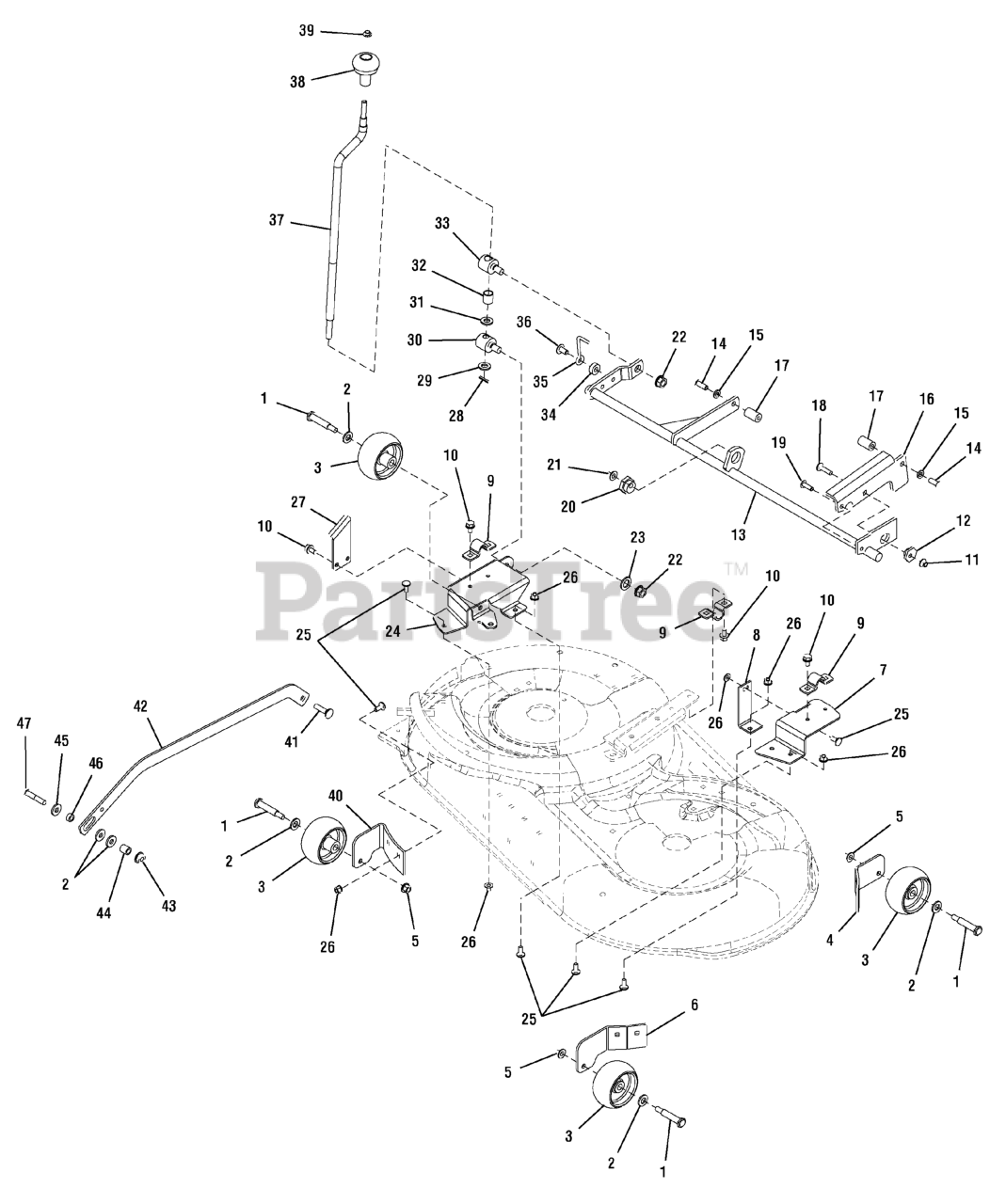

42" Mower Deck - Height Adjustment Group Parts Diagram

  • Title

1

Murray 2108765SM

BOLT, Wheel, 3/8-16 x 2-25/32 3/4 Thread

$6.49

$

In Stock, Qty 20+

0

2

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

3

Murray 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

4

Murray 1731403ZSM

BRACKET, Gauge Wheel LH Back
(Superseded to 1731403ASM)

$14.99

$

In Stock, only 1 left!

0

5

Murray 1960687SM

NUT, Hex Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

6

Murray 1732258ZSM

BRACKET, Gauge Wheel LH Front
(Superseded to 1732258BMYP)

$29.99

$

In Stock, only 2 left!

0

7

Murray 1732244ZSM

BRACKET, Rear LH 42" Glass

$23.99

$

Usually ships in 2-12 days

0

8

Murray 1730201ZSM

BRACE, Mower 42"

$6.99

$

Usually ships in 2-12 days

0

9

Murray 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

10

Murray 1664847SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

11

Murray 2860643SM

NUT, Hex Flange, 5/16-18 Collar Lock

$3.49

$

In Stock, only 4 left!

0

12

Murray 1714879SM

CAM, Eccentric 1-1/8 A/F Hex

$7.99

$

Usually ships in 2-12 days

0

13

Murray 1732279ASM

SHAFT ASSEMBLY, Rocker 42"

$86.99

$

Usually ships in 2-12 days

0

14

Murray 1921210SM

CAPSCREW, Hex Head 3/8-16 x 1, G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

15

Murray 1916965SM

LOCKWSHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

16

Murray 1718136ASM

ARM, Rear Adjustment

$20.99

$

Usually ships in 2-12 days

0

17

Murray 1716010SM

SUPPORT, 1-1/4 Long

$23.99

$

Usually ships in 2-12 days

0

18

Murray 1960655SM

CARRIAGE BOLT, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

19

Murray 1960373SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

20

Murray 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 10

0

21

Murray 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 12

0

22

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, only 1 left!

0

23

Murray 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

24

Murray 1732243ZSM

BRACKET, Rear R.H.
(Superseded to 1732243ASM)

$49.99

$

Usually ships in 2-12 days

0

25

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

26

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Murray 1732348ASM

INDICATOR, Cut Height Upstop
(Superseded to 1732348ZSM)

$10.99

$

Usually ships in 2-12 days

0

28

Murray 2816001SM

PIN, Spring SAE 1095

$4.49

$

In Stock, only 1 left!

0

29

Murray 1704097SM

WASHER, Detent

$4.49

$

In Stock, only 1 left!

0

30

Murray 1732346SM

TRUNNION

$19.99

$

Usually ships in 2-12 days

0

31

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

32

Murray 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 13

0

33

Murray 1732345SM

TRUNNION

$33.99

$

Usually ships in 2-12 days

0

34

Murray 1667811SM

SPACER

$3.49

$

In Stock, Qty 6

0

35

Murray 1678306SM

STOP, Belt

$

$

Not available

36

Murray 2827187SM

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

37

Murray 1727681SM

CRANK, Height Adjustment

$140.99

$

Usually ships in 2-12 days

0

38

Murray 1714084SM

KNOB, Spinner

$12.99

$

In Stock, Qty 7

0

39

Murray 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

40

Murray 1731402ZSM

SUPPORT, Gauge Wheel R.H. Front
(Superseded to 1731402ASM)

$14.99

$

Usually ships in 2-12 days

0

41

Murray 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

42

Murray 1728109ASM

ARM, Pitch

$26.99

$

Usually ships in 2-12 days

0

43

Murray 1930645SM

NUT, Hex FlangeTwo-Way Lock, 3/8-16 GA
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

44

Murray 1674440SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

45

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

46

Murray 1611705SM

SPACER

$4.49

$

In Stock, only 2 left!

0

47

Murray 1923701SM

CAPSCREW, Hex Head 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, Qty 12

0
