107.277680 (2690514) - Craftsman ZTS7500 Series 42" Zero-Turn Mower, 19hp Briggs & Stratton (2005) Engine Group - 19HP Briggs & Stratton Parts Diagram

ZTS7500 Series 42" Zero-Turn Mower, 19hp Briggs & Stratton

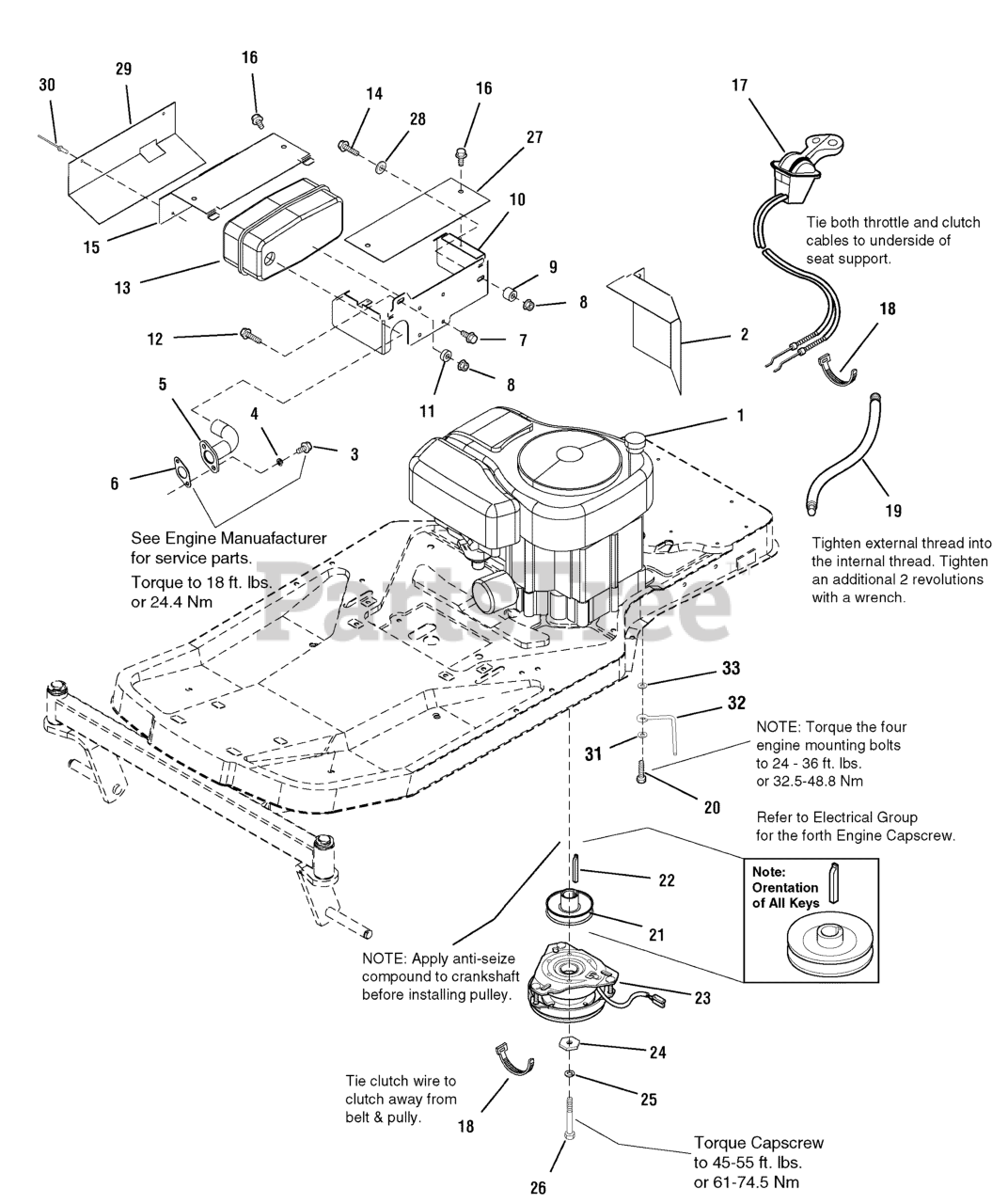

Engine Group - 19HP Briggs & Stratton Parts Diagram

  • Title

1

ENGINE, 19HP Briggs & Stratton Intex Twin, Model # 31P877 Type # 0121-E1

Note: (Refer to Note: *)

$

$

Not available

2

Murray 1732257ASM

SHIELD, Heat Inner

$35.99

$

Usually ships in 2-12 days

0

3

Murray 1936228SM

CAPSCREW, Hex Socket Head, 5/16-18 x 3/4

$4.49

$

In Stock, only 2 left!

0

4

Murray 1917356SM

WASHER, Lock Helical Spring
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

5

Murray 1732259SM

PIPE ASSEMBLY, Exhaust

$36.99

$

Usually ships in 2-12 days

0

6

Murray 1731214SM

GASKET, Exhaust
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

7

Murray 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0

8

Murray 1927557SM

NUT, Hex Flange Lock, Large, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 7

0

9

Murray 1667812SM

SPACER, .390 ID .90 OD 0.70 Lg

$5.99

$

In Stock, Qty 20+

0

10

Murray 1732255SM

BRACKET, Muffler Heat Resistent

$

$

Not available

11

Murray 1667811SM

SPACER

$3.99

$

In Stock, Qty 11

0

12

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 5

0

13

Murray 1732273SM

MUFFLER ASSEMBLY, Single

$96.99

$

In Stock, only 3 left!

0

14

Murray 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, only 3 left!

0

15

Murray 1727996ASM

HEAT SHIELD, Single Cylinder
(Superseded to 7300918ASM)

$51.99

$

Usually ships in 2-12 days

0

16

Murray 1960720SM

CAPSCREW, Thread Cutting, # 10 x 1/2

$5.49

$

Usually ships in 2-12 days

0

17

Murray 1727817SM

CONTROL, Throttle Double 42" Long

$122.99

$

Usually ships in 2-12 days

0

18

Murray 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1726498SM

HOSE, Oil Drain

$28.99

$

Usually ships in 2-12 days

0

20

Murray 704010

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2 (For 1692768)

$4.99

$

In Stock, only 2 left!

0

21

Murray 1727816SM

PULLEY, 3.74 OD x 1.003 ID x 1.88 LG

$

$

Not available

22

Murray 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$9.49

$

In Stock, Qty 8

0

23

Murray 1686880SM

CLUTCH, Electric Ogura
(Superseded to 1687746YP)

$398.99

$

In Stock, only 2 left!

0

24

Murray 1708264SM

WASHER, Hex

$8.99

$

In Stock, only 2 left!

0

25

Murray 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

26

Murray 1960648SM

CAPSCREW, Hex Head Cap, 7/16-20 x 2-3/4, GR5, Black

$6.49

$

In Stock, only 1 left!

0

27

Murray 1732885ASM

HEAT SHIELD

$16.99

$

Usually ships in 2-12 days

0

28

Murray 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

29

Murray 1733063SM

HEAT SHIELD

$51.99

$

Usually ships in 2-12 days

0

30

Murray 1675044SM

RIVET, Pop

$4.49

$

In Stock, only 1 left!

0

31

Murray 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Murray 1732026SM

RETAINER, Clutch
(Superseded to 1737420AYP)

$12.99

$

Usually ships in 2-12 days

0

33

Murray 1933263SM

WASHER, Flat
(Superseded to 703990)

$6.99

$

In Stock, Qty 12

0
