107.277700 (2277700) - Craftsman ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp (2004) Carrier Group Parts Diagram

ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp

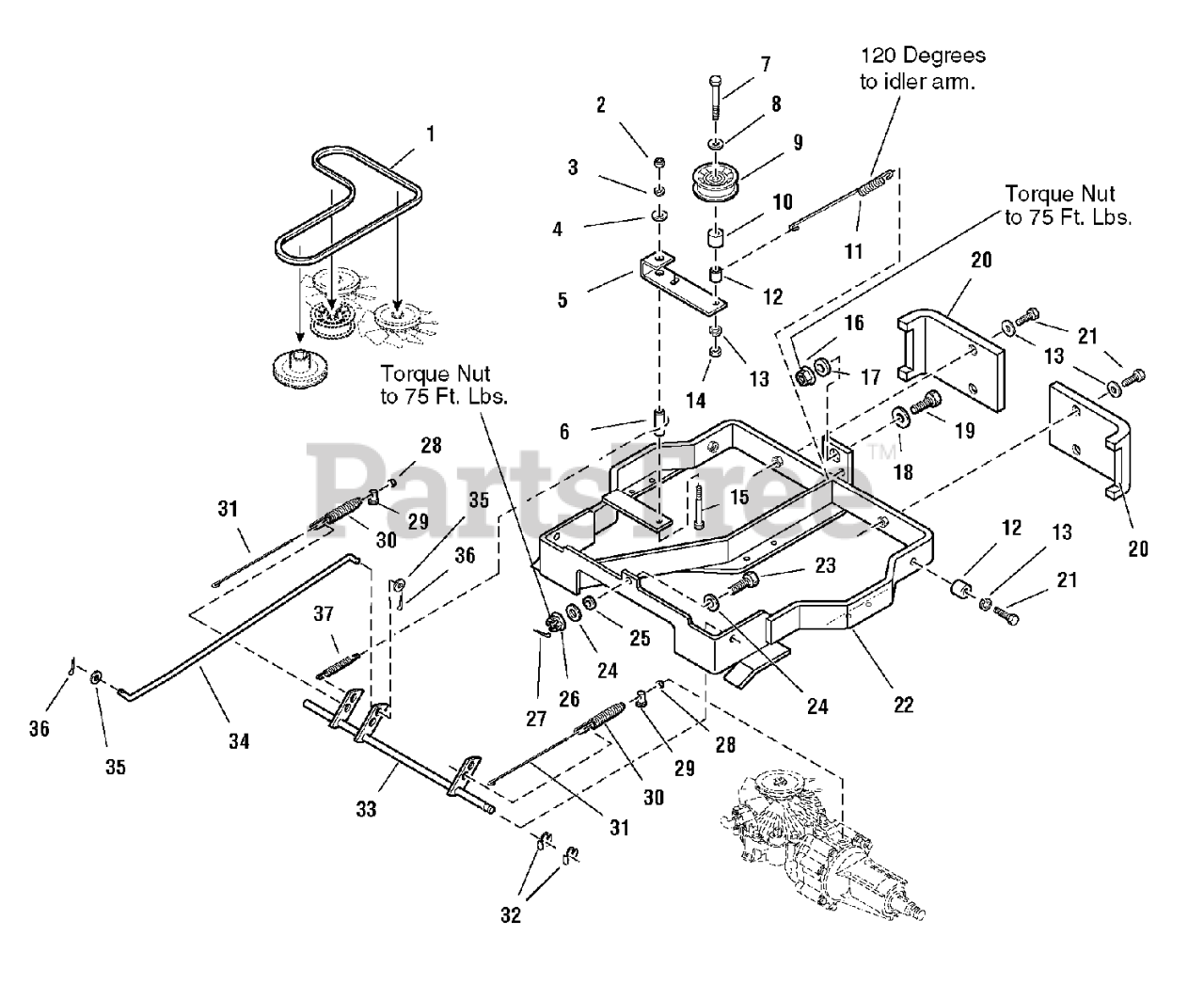

Carrier Group Parts Diagram

  • Title

1

Murray 1726470SM

V-BELT

$28.99

$

In Stock, only 1 left!

0

2

Murray 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Murray 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

5

Murray 1715971ASM

ARM, Idler

$13.99

$

Usually ships in 2-12 days

0

6

Murray 1713588SM

SPACER, Powdered Metal

$8.49

$

Usually ships in 2-12 days

0

7

Murray 1928957SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4, G8

$6.49

$

In Stock, Qty 5

0

8

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Murray 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

10

Murray 1667812SM

SPACER, Powered Metal

$5.99

$

In Stock, Qty 6

0

11

Murray 1726527SM

SPRING, Extension

$39.99

$

In Stock, only 1 left!

0

12

Murray 1665699SM

SPACER

$7.49

$

In Stock, only 2 left!

0

13

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

14

Murray 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

15

Murray 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, G5
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

16

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, only 1 left!

0

17

Murray 1719725SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

18

Murray 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

Usually ships in 2-12 days

0

19

Murray 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4, G5

$4.99

$

Usually ships in 2-12 days

0

20

Murray 1718300SM

BUMPER, Weight, Cast Iron

$111.99

$

Usually ships in 2-12 days

0

21

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, Qty 11

0

22

Murray 1726551SM

FRAME ASSEMBLY, Transmission

$

$

Not available

23

Murray 1719682SM

CAPSCREW, Hex Head, 1/2-20 x 1-3/4, G8

$4.49

$

Usually ships in 2-12 days

0

24

Murray 1654565SM

WASHER, Spring, 1/2

$15.99

$

Usually ships in 2-12 days

0

25

Murray 1719683SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

26

Murray 2860605SM

NUT, Hex Slotted, 1/2-20

$3.49

$

In Stock, only 3 left!

0

27

Murray 1923500SM

PIN, Cotter, 1/8 x 1-1/2

$3.99

$

In Stock, only 1 left!

0

28

Murray 1933896SM

NUT, Hex Lock
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

29

Murray 1716077SM

PIN, Yoke

$3.49

$

Usually ships in 2-12 days

0

30

Murray 1701996SM

SPRING, Extension

$12.99

$

In Stock, only 3 left!

0

31

Murray 1716078SM

ROD, Brake, 10-24 x 1-1/8

$32.99

$

Usually ships in 2-12 days

0

32

Murray 1703805SM

RING, Klipring Extension for 1/2 Diameter Shaft

$3.49

$

In Stock, only 2 left!

0

33

Murray 1715973SM

SHAFT & ARMS ASSEMBLY, Pivot

$49.99

$

Usually ships in 2-12 days

0

34

Murray 1725970SM

ROD, Clutch

$17.99

$

Usually ships in 2-12 days

0

35

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

36

Murray 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

37

Murray 2159106SM

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0
