107.280063 (7800753 A) - Craftsman ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton (2011) Fender Group Parts Diagram

ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton

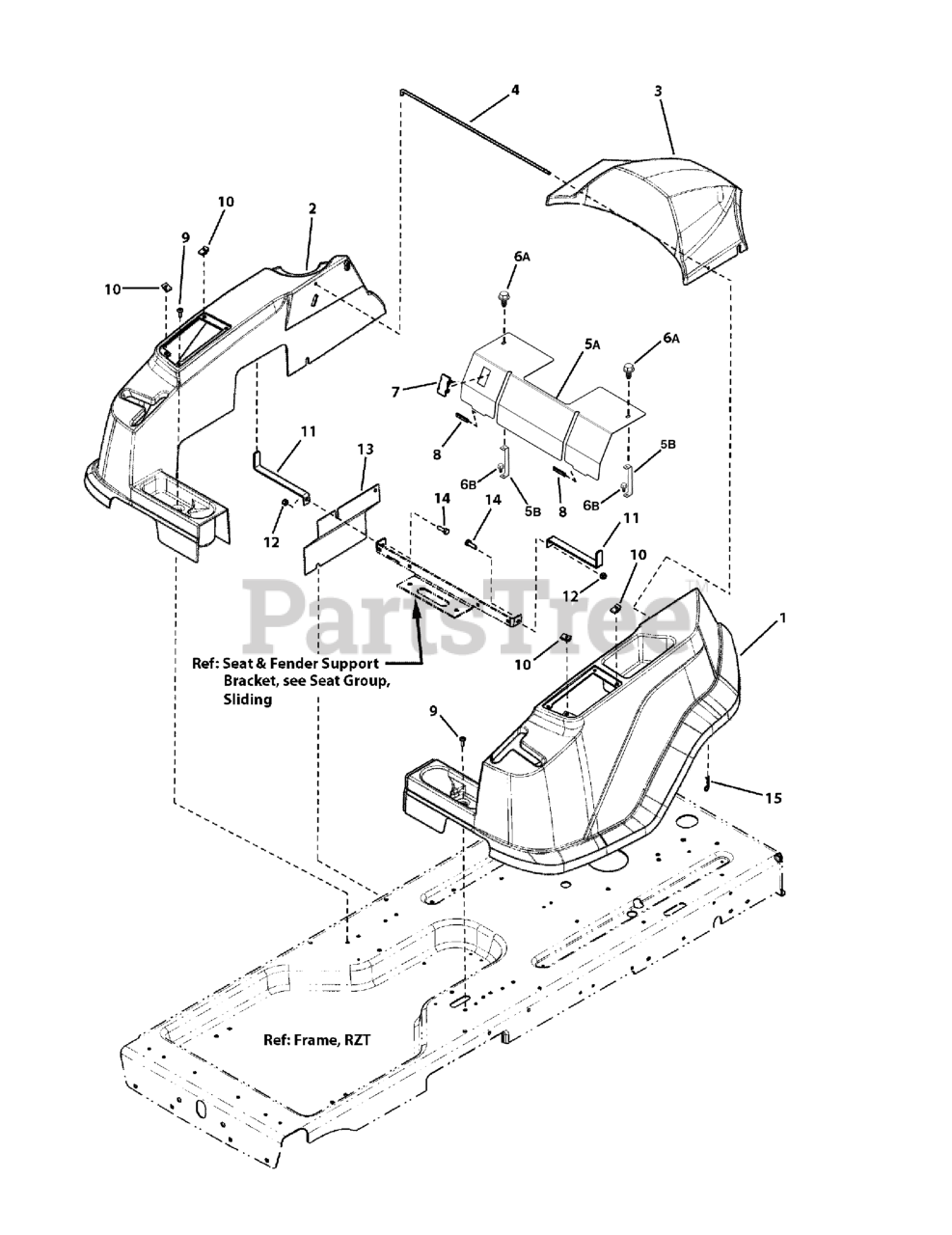

Fender Group Parts Diagram

  • Title

1

Murray 7103776YP

FENDER, LH

$320.99

$

Usually ships in 2-12 days

0

2

Murray 7103775YP

FENDER, RH

$368.99

$

Usually ships in 2-12 days

0

3

Murray 7103777YP

COVER, Engine

$72.99

$

Usually ships in 2-12 days

0

4

Murray 7103998YP

ROD, Pivot, Hood

$50.99

$

Usually ships in 2-12 days

0

5A

Murray 7301216YP

COVER, BATTERY, 285z

$

$

Currently unavailable

5B

Murray 7301217YP

BRACKET, Battery Cover

$

$

Currently unavailable

6A

Murray 7091122SM

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 17

0

6B

Murray 025X151MA

CAPSCREW, Hex Washer, Taptite, 3/8-16 x 3/4

$

$

Currently unavailable

7

Murray 1722611SM

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

8

Murray 7104514YP

STRIP, TRIM
(Superseded to 7503228YP)

$3.49

$

Usually ships in 2-12 days

0

9

Murray 7091246YP

SCREW, 1/4-20 x 3/4, Pan Head Torx
(Superseded to 770003)

$4.49

$

In Stock, Qty 9

0

10

Murray 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

11

Murray 7301101BMYP

BRACKET, Support, Fender

$11.99

$

Usually ships in 2-12 days

0

12

Murray 7091298YP

NUT, 5/16-18 3B Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

13

Murray 7301126BMYP

PLATE, Side, RH

$27.99

$

Usually ships in 2-12 days

0

14

Murray 7027168SM

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

15

Murray 7091503SM

HAIR PIN, 3/32 x 1-1/2", YZ

$3.99

$

In Stock, Qty 20+

0
